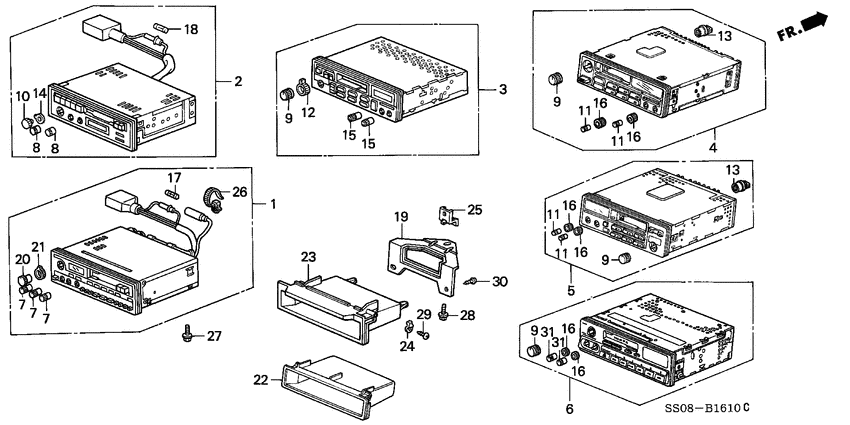

Auto radio Diagram Honda PRELUDE
- Year
- 1996
- Model code
- PRELUDE
- Sales region
- General
- Engine
- F22A
- transmission
- 4AT
- Number of doors
- 2
- grade
- SI
- area code
- KT
- right-hand drive
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
39100-SE3-Q82
Tuner assy
|
39100-SE3-Q82 |
— | ||
|
3
|
3
39100-SM4-C01
Tuner assy
|
39100-SM4-C01 |
— | ||
|
8
|
8
39103-SE3-Q81
Knob a
|
39103-SE3-Q81 |
— | ||
|
9
|
9
39103-SM4-C01
Knob
|
39103-SM4-C01 |
— | ||
|
10
|
10
39104-SE3-Q81
Knob
|
39104-SE3-Q81 |
— | ||
|
12
|
12
39104-SM4-C01
Knob
|
39104-SM4-C01 |
— | ||
|
14
|
14
39105-SE3-Q81
Knob
|
39105-SE3-Q81 |
— | ||
|
15
|
15
39105-SM4-C01
Knob
|
39105-SM4-C01 |
— | ||
|
18
|
18
39110-SE3-Q81
Fuse
|
39110-SE3-Q81 |
— | ||
|
19
|
19
39111-SS0-G00
Bracket
|
39111-SS0-G00 |
— | ||
|
23
|
23
39116-SS0-G00
Pocket
|
39116-SS0-G00 |
— | ||
|
25
|
25
66849-SA5-611
Bracket
|
66849-SA5-611 |
— | ||
|
27
|
27
91551-SE0-003 BoltFLANGE, 5X7 |
91551-SE0-003 |
US $0.84 |
||
|
28
|
28
93893-050-120-8 Screw-washer5X12 |
93893-050-120-8 |
from US $0.52 |
||
|
29
|
29
93903-24120 ScrewTAPPING, 4X8 |
93903-24120 |
from US $0.37 |
||
|
30
|
30
93903-44380 ScrewTAPPING, 4X12 |
93903-44380 |
from US $0.41 |
