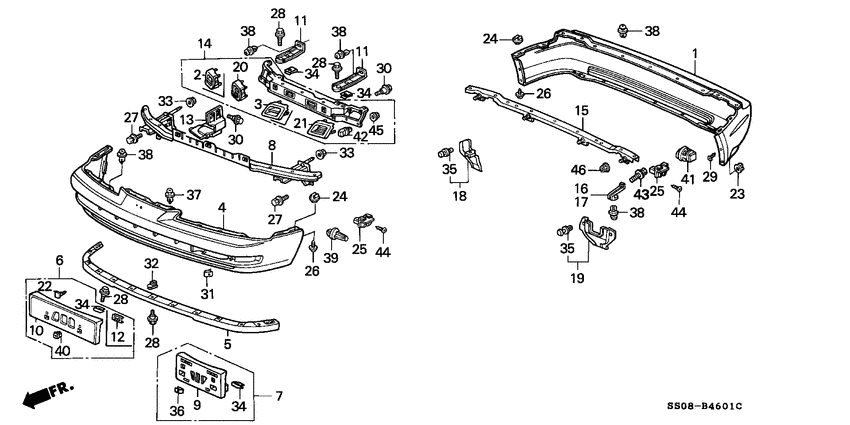

Bumpers (2) Diagram Honda PRELUDE
- Year
- 1996
- Model code
- PRELUDE
- Sales region
- General
- Engine
- F22A
- transmission
- 4AT
- Number of doors
- 2
- grade
- SI
- area code
- KT
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
04715-SS0-000ZZ
Face
|
04715-SS0-000ZZ |
— | ||
|
4
|
4
71101-SS0-G00ZZ
Face
|
71101-SS0-G00ZZ |
— | ||
|
5
|
5
71110-SS0-000
Spoiler
|
71110-SS0-000 |
— | ||
|
6
|
6
71120-SS0-G00
Base assy
|
71120-SS0-G00 |
— | ||
|
8
|
8
71140-SS0-000
Beam comp
|
71140-SS0-000 |
— | ||
|
10
|
10
71145-SS0-G00
Base
|
71145-SS0-G00 |
— | ||
|
11
|
11
71147-SS0-000
Stay
|
71147-SS0-000 |
— | ||
|
13
|
13
71148-SS0-000
Plate
|
71148-SS0-000 |
— | ||
|
14
|
14
71160-SS0-010
Stay assy
|
71160-SS0-010 |
— | ||
|
15
|
15
71540-SS0-000
Beam comp
|
71540-SS0-000 |
— | ||
|
16
|
16
71556-SS0-000
Stay
|
71556-SS0-000 |
— | ||
|
17
|
17
71557-SS0-000
Stay
|
71557-SS0-000 |
— | ||
|
20
|
20
75101-SS0-003
Grille comp
|
75101-SS0-003 |
— | ||
|
21
|
21
75102-SS0-003
Grille comp
|
75102-SS0-003 |
— | ||
|
22
|
22
90103-SP0-000 BoltCORNER CLIP |
90103-SP0-000 |
US $3.77 |
||
|
23
|
23
90106-SS0-003 GrommetSCREW |
90106-SS0-003 |
US $1.26 |
||
|
24
|
24
90107-SS0-003 GrommetSCREW, 5MM |
90107-SS0-003 |
US $1.82 |
||
|
25
|
25
90108-SS0-003 ClipBUMPER SIDE |
90108-SS0-003 |
US $3.36 |
||
|
26
|
26
90109-SS0-000 ScrewTAPPING, 5X20 |
90109-SS0-000 |
US $2.07 |
||
|
27
|
27
90110-SE7-000 Bolt-washer8X21 |
90110-SE7-000 |
US $1.40 |
||
|
28
|
28
90111-SM4-003 BoltBUMPER |
90111-SM4-003 |
from US $1.55 |
||
|
29
|
29
90139-SE0-003 Screw-washer5X25 |
90139-SE0-003 |
from US $2.19 |
||
|
30
|
30
90149-SA0-003 BoltBUMPER |
90149-SA0-003 |
from US $2 |
||
|
31
|
31
90303-SA5-003 NutFR. COMBINATION LIGHT |
90303-SA5-003 |
from US $2.22 |
||
|
32
|
32
90305-SM4-000 NutAIR SPOILER CLIP |
90305-SM4-000 |
from US $1.33 |
||
|
33
|
33
90312-SM4-000 Nut-washer8MM |
90312-SM4-000 |
US $2.38 |
||
|
34
|
34
90323-SE1-000 NutCLIP, 6MM |
90323-SE1-000 |
US $6.77 |
||
| replacement | |||||
|
34
|
34
90305-SH3-000 NutAIR SPOILER CLIP |
90305-SH3-000 |
from US $2.59 |
||
|
37
|
37
91502-SP0-003 ClipBUMPER FACE |
91502-SP0-003 |
US $2.10 |
||
|
38
|
38
91503-SP0-013 Clip ABUMPER |
91503-SP0-013 |
US $4.23 |
||
| replacement | |||||
|
38
|
38
91503-SP0-003 Clip A |
91503-SP0-003 |
from US $2.45 |
||
|
39
|
39
91505-SS0-003 ClipSPACER |
91505-SS0-003 |
US $1.96 |
||
|
40
|
40
91601-SP0-003 GrommetLICENSE |
91601-SP0-003 |
US $1.82 |
||
|
41
|
41
91601-SS0-003
Plug
|
91601-SS0-003 |
— | ||
|
42
|
42
91603-SS0-003
Clip
|
91603-SS0-003 |
— | ||
|
43
|
43
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
44
|
44
93901-15380 ScrewTAPPING, 5X16 |
93901-15380 |
from US $0.37 |
||
| replacement | |||||
|
44
|
44
93901-15180 ScrewTAPPING, 5X10 |
93901-15180 |
from US $0.37 |
||
|
45
|
45
94050-05080 NutFLANGE, 5MM |
94050-05080 |
from US $0.44 |
||
|
46
|
46
90301-SP0-003 NutPAINT CUTTING, 6MM |
90301-SP0-003 |
US $2.59 |
||
