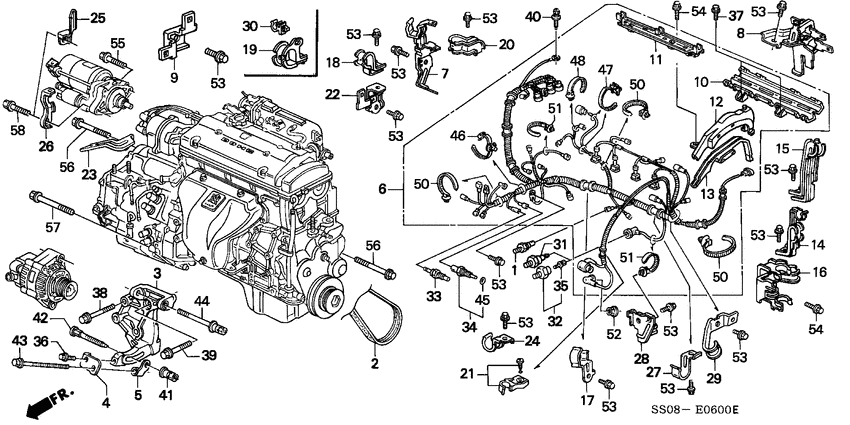

Engine wire harness/clamp Diagram Honda PRELUDE
- Year
- 1996
- Model code
- PRELUDE
- Sales region
- General
- Engine
- F22A
- transmission
- 4AT
- Number of doors
- 2
- grade
- SI
- area code
- KT
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
31110-P12-A02
Belt
|
31110-P12-A02 |
— | ||
|
2
|
2
31110-P12-A01 BeltALTERNATOR (MITSUBOSHI) (NON AIR CONDITIONER) |
31110-P12-A01 |
US $34.43 |
||
|
3
|
3
31112-PT0-000
Bracket
|
31112-PT0-000 |
— | ||
|
4
|
4
31117-PT0-000 PlateALTERNATOR ADJUSTER |
31117-PT0-000 |
US $4.20 |
||
|
5
|
5
31118-PT0-000
Stay
|
31118-PT0-000 |
— | ||
|
6
|
6
32110-P12-T51
Harness
|
32110-P12-T51 |
— | ||
|
8
|
8
32112-P13-000
Stay comp
|
32112-P13-000 |
— | ||
|
10
|
10
32127-PT2-000
Holder comp
|
32127-PT2-000 |
— | ||
|
15
|
15
32741-P13-000
Clamp
|
32741-P13-000 |
— | ||
|
16
|
16
32742-P11-E00
Clamp comp. b
|
32742-P11-E00 |
— | ||
|
17
|
17
32744-P13-000
Clamp d
|
32744-P13-000 |
— | ||
|
19
|
19
32745-P13-900
Clamp e
|
32745-P13-900 |
— | ||
|
20
|
20
32746-P13-010
Clamp f
|
32746-P13-010 |
— | ||
|
22
|
22
32748-P13-000
Stay
|
32748-P13-000 |
— | ||
|
24
|
24
32750-PT0-000
Stay b
|
32750-PT0-000 |
— | ||
|
26
|
26
32751-P13-900
Stay c
|
32751-P13-900 |
— | ||
|
29
|
29
32759-P13-000
Clamp j
|
32759-P13-000 |
— | ||
|
30
|
30
36615-PJ5-003 ClampTUBE, 4.5(NATURAL) |
36615-PJ5-003 |
US $1.54 |
||
|
31
|
31
37240-PT0-014 SwitchOIL PRESSURE (TEC) |
37240-PT0-014 |
from US $25.58 |
||
|
31
|
31
37240-PT0-023
Switch
|
37240-PT0-023 |
— | ||
| replacement | |||||
|
31
|
31
37240-PT0-014 SwitchOIL PRESSURE (TEC) |
37240-PT0-014 |
from US $25.58 |
||
|
33
|
33
37750-PH2-014 Thermo unitDENSO |
37750-PH2-014 |
US $45.03 |
||
|
34
|
34
37870-PJ7-003 Sensor assy, WATER TEMP (TW5) (MATSUSHITA) |
37870-PJ7-003 |
from US $51.88 |
||
|
36
|
36
90004-PA0-000 BoltHEX., 6X14 |
90004-PA0-000 |
US $2.80 |
||
|
37
|
37
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.38 |
||
|
38
|
38
90052-PT0-000
Bolt
|
90052-PT0-000 |
— | ||
|
39
|
39
90053-PT0-000
Bolt
|
90053-PT0-000 |
— | ||
|
40
|
40
90114-SM4-900 Bolt6X15 |
90114-SM4-900 |
US $3.91 |
||
|
41
|
41
90204-PH7-000 NutSPECIAL |
90204-PH7-000 |
US $4.48 |
||
|
42
|
42
90310-PT0-003
Bolt
|
90310-PT0-003 |
— | ||
|
43
|
43
90312-PT0-000 BoltADJUSTER SPECIAL |
90312-PT0-000 |
US $4.32 |
||
|
44
|
44
90313-PT0-000 BoltSPECIAL, 10X90 |
90313-PT0-000 |
US $3.92 |
||
|
45
|
45
91307-PJ7-003
O-ring
|
91307-PJ7-003 |
— | ||
| replacement | |||||
|
45
|
45
91307-PK2-005 O-ring9.5X1.5(HONDA KIKAKI) |
91307-PK2-005 |
from US $1.63 |
||
|
46
|
46
91506-PT0-003
Band
|
91506-PT0-003 |
— | ||
|
47
|
47
91506-P01-003 Clip AHARNESS BAND (DARK GRAY) (129.4MM) |
91506-P01-003 |
from US $2.37 |
||
|
48
|
48
91507-PT3-A01 BandWIRE HARNESS (BLACK) (90.4MM) |
91507-PT3-A01 |
US $2.03 |
||
|
50
|
50
91540-SV4-003 ClipHARNESS BAND (NATURAL) (145.2MM) |
91540-SV4-003 |
from US $2.81 |
||
|
51
|
51
91540-SV4-003 ClipHARNESS BAND (NATURAL) (145.2MM) |
91540-SV4-003 |
from US $2.81 |
||
|
52
|
52
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
53
|
53
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
54
|
54
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.38 |
||
|
55
|
55
95701-100-350-8 BoltFLANGE, 10X35 |
95701-100-350-8 |
from US $0.81 |
||
|
56
|
56
95701-120-700-8 BoltFLANGE, 12X70 |
95701-120-700-8 |
US $1.48 |
||
|
57
|
57
95701-120-700-8 BoltFLANGE, 12X70 |
95701-120-700-8 |
US $1.48 |
||
|
58
|
58
90075-PD3-000 BoltFLANGE, 10X43 |
90075-PD3-000 |
from US $3.03 |
||
