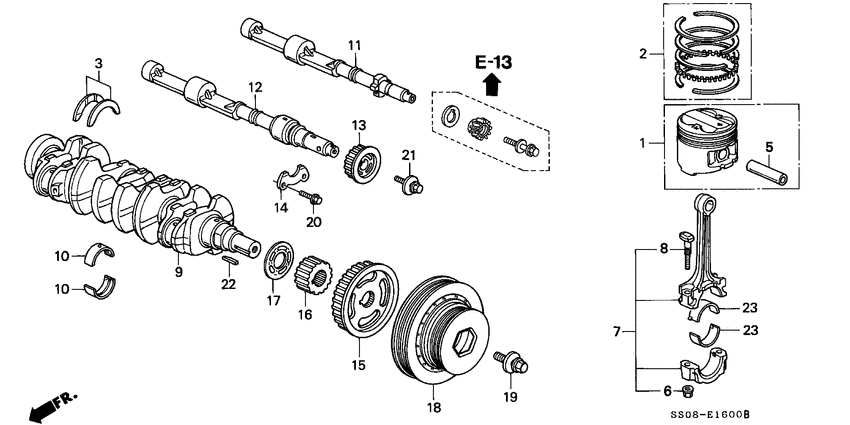

Piston/crankshaft Diagram Honda PRELUDE
- Year
- 1996
- Model code
- PRELUDE
- Sales region
- General
- Engine
- F22A
- transmission
- 4AT
- Number of doors
- 2
- grade
- SI
- area code
- KT
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13010-P12-000 Piston set aSTD. |
13010-P12-000 |
US $69.76 |
||
|
1
|
1
13030-P12-010
Piston set
|
13030-P12-010 |
— | ||
|
1
|
1
13040-P12-010
Piston set
|
13040-P12-010 |
— | ||
|
1
|
1
13020-P12-000 Piston set bSTD. |
13020-P12-000 |
US $67.84 |
||
|
2
|
2
13021-PT0-B03
Ring set
|
13021-PT0-B03 |
— | ||
|
2
|
2
13011-PT4-X04 Ring setPISTON (STD.)(RIKEN) |
13011-PT4-X04 |
US $50.56 |
||
|
2
|
2
13031-PT0-B04
Ring set
|
13031-PT0-B04 |
— | ||
|
2
|
2
13011-PT4-X03 Ring setPISTON (STD.) (TEIKOKU) |
13011-PT4-X03 |
US $50.56 |
||
|
2
|
2
13031-PT0-B03
Ring set
|
13031-PT0-B03 |
— | ||
|
2
|
2
13021-PT0-B04
Ring set
|
13021-PT0-B04 |
— | ||
|
3
|
3
13014-P11-810
Washer set
|
13014-P11-810 |
— | ||
|
3
|
3
13014-P11-800
Washer set
|
13014-P11-800 |
— | ||
|
5
|
5
13112-PT0-000 PinPISTON |
13112-PT0-000 |
US $9.80 |
||
|
6
|
6
13205-PH7-000 NutCONNECTING ROD |
13205-PH7-000 |
US $4.44 |
||
|
7
|
7
13210-PT3-A00 Rod compCONNECTING |
13210-PT3-A00 |
US $142.08 |
||
|
8
|
8
13213-ME2-000 BoltCONNECTING ROD |
13213-ME2-000 |
from US $6.66 |
||
|
9
|
9
13310-P0A-000 Crankshaft comp. |
13310-P0A-000 |
US $1,082.24 |
||
|
10
|
10
13321-PT0-B01 BEARING AMAIN (BLACK) (DAIDO) |
13321-PT0-B01 |
US $13.57 |
||
|
10
|
10
13325-PT0-B01
Bearing e
|
13325-PT0-B01 |
— | ||
|
10
|
10
13324-PT0-B01
Bearing d
|
13324-PT0-B01 |
— | ||
|
10
|
10
13323-PT0-B01 Bearing cMAIN (GREEN) (DAIDO) |
13323-PT0-B01 |
US $13.57 |
||
|
10
|
10
13322-PT0-B01
Bearing b
|
13322-PT0-B01 |
— | ||
|
11
|
11
13400-P13-000
Shaft comp.
|
13400-P13-000 |
— | ||
|
12
|
12
13401-P13-000
Shaft
|
13401-P13-000 |
— | ||
|
13
|
13
13402-PT0-000 Pulley bFR. TIMING BELT DRIVEN |
13402-PT0-000 |
US $27.78 |
||
|
14
|
14
13406-PT0-003 Metal fTHRUST BALANCER SHAFT |
13406-PT0-003 |
from US $8.14 |
||
|
15
|
15
13408-PT0-003 PulleyBALANCER BELT DRIVE |
13408-PT0-003 |
US $36.86 |
||
|
16
|
16
13621-P0A-003 PulleyTIMING BELT DRIVE |
13621-P0A-003 |
US $30.08 |
||
|
17
|
17
13622-PV1-000 PlateTIMING BELT GUIDE |
13622-PV1-000 |
from US $4.34 |
||
|
18
|
18
13810-PT1-003
Pulley comp
|
13810-PT1-003 |
— | ||
|
19
|
19
90017-PY3-003 Bolt-washer16X49 |
90017-PY3-003 |
US $34.70 |
||
| replacement | |||||
|
19
|
19
90017-RJA-003 Bolt-washer16X49 |
90017-RJA-003 |
from US $12.28 |
||
|
20
|
20
90019-PT0-000 BoltFLANGE, 6X18 |
90019-PT0-000 |
from US $1.54 |
||
|
21
|
21
90031-PT0-003 Bolt-washer8X22 |
90031-PT0-003 |
US $2.96 |
||
|
22
|
22
90704-PT0-000 Key4.5X38.5 |
90704-PT0-000 |
from US $3.77 |
||
|
23
|
23
13214-PK2-751 Bearing dCONNECTING ROD (GREEN) (DAIDO) |
13214-PK2-751 |
US $13.44 |
||
|
23
|
23
13217-PK2-751
Bearing g
|
13217-PK2-751 |
— | ||
|
23
|
23
13211-PK2-751
BEARING A
|
13211-PK2-751 |
— | ||
|
23
|
23
13215-PK2-751
Bearing e
|
13215-PK2-751 |
— | ||
|
23
|
23
13213-PK2-751
Bearing c
|
13213-PK2-751 |
— | ||
|
23
|
23
13212-PK2-751
Bearing b
|
13212-PK2-751 |
— | ||
|
23
|
23
13216-PK2-751
Bearing f
|
13216-PK2-751 |
— | ||
