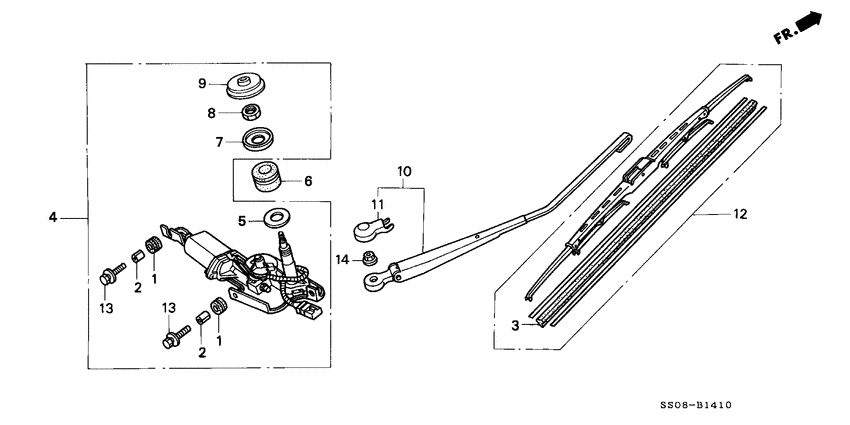

Rear wiper Diagram Honda PRELUDE
- Year
- 1996
- Model code
- PRELUDE
- Sales region
- General
- Engine
- F22A
- transmission
- 4AT
- Number of doors
- 2
- grade
- SI
- area code
- KT
- right-hand drive
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38448-692-952
Rubber
|
38448-692-952 |
— | ||
|
2
|
2
38449-692-952
Collar
|
38449-692-952 |
— | ||
|
3
|
3
38472-SB0-671 RubberBLADE (475MM) |
38472-SB0-671 |
US $10.22 |
||
|
4
|
4
76700-SS0-E01
Motor assy.
|
76700-SS0-E01 |
— | ||
|
5
|
5
76706-SK7-003
Washer a
|
76706-SK7-003 |
— | ||
|
6
|
6
76707-SS0-000
Seal a
|
76707-SS0-000 |
— | ||
|
7
|
7
76708-SK7-003
Washer b
|
76708-SK7-003 |
— | ||
|
8
|
8
76709-SE0-A01 NutSPECIAL, 18MM |
76709-SE0-A01 |
US $3.82 |
||
|
9
|
9
76711-SK7-003
Cap
|
76711-SK7-003 |
— | ||
|
10
|
10
76720-SS0-E01
Arm
|
76720-SS0-E01 |
— | ||
|
11
|
11
76722-SK7-003
Cover, Arm
|
76722-SK7-003 |
— | ||
|
12
|
12
76730-SK7-A01 BladeWINDSHIELD WIPER (475MM) |
76730-SK7-A01 |
US $24.96 |
||
|
13
|
13
93404-060-200-8 Bolt-washer6X20 |
93404-060-200-8 |
from US $0.52 |
||
|
14
|
14
94002-080-800-S NutHEX., 8MM |
94002-080-800-S |
from US $0.49 |
||
| replacement | |||||
|
14
|
14
94002-080-000-S NutHEX., 8MM |
94002-080-000-S |
from US $0.44 |
||
