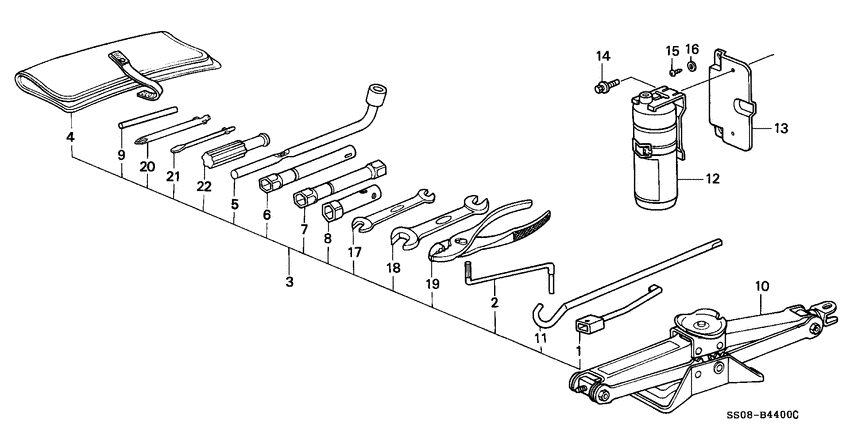

Tools/jack Diagram Honda PRELUDE
- Year
- 1996
- Model code
- PRELUDE
- Sales region
- General
- Engine
- F22A
- transmission
- 4AT
- Number of doors
- 2
- grade
- SI
- area code
- KT
- right-hand drive
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
71969-SA7-890
Wrench
|
71969-SA7-890 |
— | ||
|
3
|
3
89000-SR3-E50
Tool set
|
89000-SR3-E50 |
— | ||
|
4
|
4
89101-SW5-003 BagTOOL |
89101-SW5-003 |
US $10.51 |
||
|
5
|
5
89211-SE3-003
Wrench
|
89211-SE3-003 |
— | ||
|
7
|
7
89216-SF4-000 WrenchPLUG |
89216-SF4-000 |
from US $10.51 |
||
|
10
|
10
89310-SP0-003 Jack assyPANTOGRAPH |
89310-SP0-003 |
US $78.72 |
||
|
11
|
11
89320-SE3-003
Bar
|
89320-SE3-003 |
— | ||
| replacement | |||||
|
11
|
11
89320-S50-003 BarJACK |
89320-S50-003 |
US $20.50 |
||
|
17
|
17
99001-10120 Spanner |
99001-10120 |
from US $3.55 |
||
|
19
|
19
99002-15000 Pliers150 |
99002-15000 |
from US $6.51 |
||
|
20
|
20
99003-10000 Driver1PLUS SCREW(NO.2) |
99003-10000 |
from US $1.41 |
||
|
21
|
21
99003-30000 Driver 3MINUS SCREW (NO.2) |
99003-30000 |
from US $1.41 |
||
|
22
|
22
99003-50000 GripSCREW DRIVER |
99003-50000 |
from US $1.70 |
||
