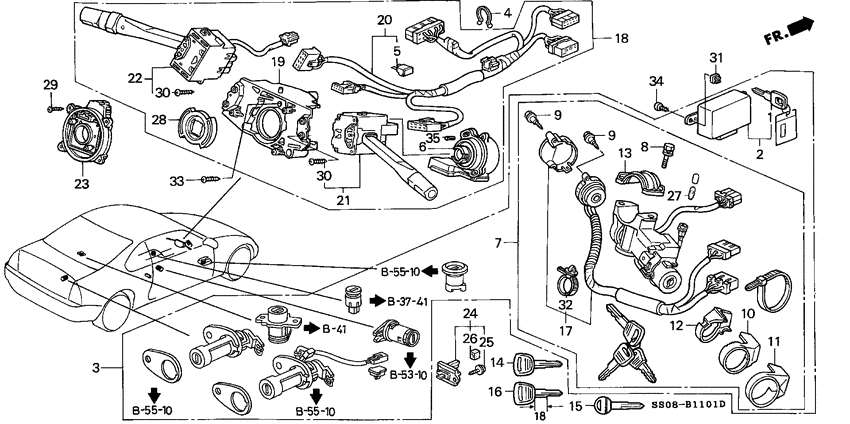

Combination switch (RH) Diagram Honda PRELUDE
- Year
- 1995
- Model code
- PRELUDE
- Sales region
- General
- Engine
- F22A
- transmission
- 5MT
- Number of doors
- 2
- grade
- S
- area code
- KQ
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
3
|
3
06350-SS0-Q11 Cylinder setKEY (SERVICE) |
06350-SS0-Q11 |
US $404.48 |
||
|
5
|
5
32146-SH3-003 ConnectorDIODE(2P) |
32146-SH3-003 |
from US $7.70 |
||
|
7
|
7
35100-SS0-E11
Lock assy
|
35100-SS0-E11 |
— | ||
|
8
|
8
35102-SV4-003 BoltBREAK HEAD |
35102-SV4-003 |
from US $2 |
||
|
9
|
9
35103-SE3-003 ScrewRECESSED, 3X8 |
35103-SE3-003 |
US $2.10 |
||
|
13
|
13
35108-SV4-A01
Holder
|
35108-SV4-A01 |
— | ||
|
14
|
14
35113-SH3-G02
Key
|
35113-SH3-G02 |
— | ||
|
16
|
16
35114-SH4-K01
Key
|
35114-SH4-K01 |
— | ||
|
17
|
17
35130-SS0-J01
Switch comp
|
35130-SS0-J01 |
— | ||
|
20
|
20
35254-SS0-Q11
Cord assy
|
35254-SS0-Q11 |
— | ||
|
21
|
21
35255-SM4-N01
Switch assy
|
35255-SM4-N01 |
— | ||
|
22
|
22
35256-SM4-N21
Switch assy
|
35256-SM4-N21 |
— | ||
|
23
|
23
35257-SS0-003
Ring assy
|
35257-SS0-003 |
— | ||
|
24
|
24
35400-SG0-023
Switch assy
|
35400-SG0-023 |
— | ||
|
25
|
25
35409-SG0-901
Screw
|
35409-SG0-901 |
— | ||
|
26
|
26
35417-SE3-003
Cover
|
35417-SE3-003 |
— | ||
| replacement | |||||
|
26
|
26
35410-692-003 CoverDOOR SWITCH |
35410-692-003 |
US $5.77 |
||
|
28
|
28
53271-SS0-003
Cam
|
53271-SS0-003 |
— | ||
|
29
|
29
90101-SA4-000 ScrewTAPPING, 4X12 |
90101-SA4-000 |
US $0.80 |
||
| replacement | |||||
|
29
|
29
93913-14280 ScrewTAPPING, 4X12 (PO) |
93913-14280 |
from US $0.37 |
||
|
30
|
30
90109-SS0-901 ScrewTAPPING, 3X16 |
90109-SS0-901 |
US $1.54 |
||
|
32
|
32
91547-SF4-003 BandWIRE HARNESS (BLUE) (123.5MM) |
91547-SF4-003 |
from US $5.03 |
||
|
33
|
33
93891-050-120-8 Screw-washer5X12 |
93891-050-120-8 |
from US $0.44 |
||
