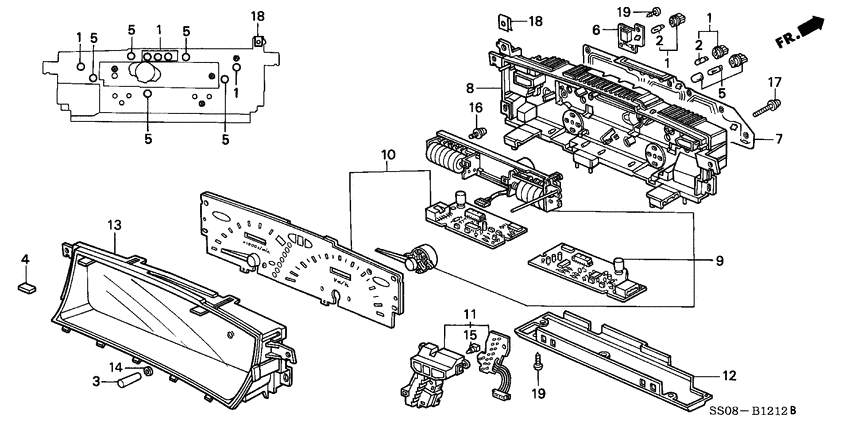

Meter components (3) Diagram Honda PRELUDE
- Year
- 1995
- Model code
- PRELUDE
- Sales region
- General
- Engine
- F22A
- transmission
- 4AT
- Number of doors
- 2
- grade
- S
- area code
- KQ
- right-hand drive
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35505-SA5-003 Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK) |
35505-SA5-003 |
from US $3.70 |
||
|
2
|
2
35506-SA5-003 Bulb14V 1.4W |
35506-SA5-003 |
from US $1.85 |
||
|
3
|
3
37106-SJ4-J00
Knob
|
37106-SJ4-J00 |
— | ||
|
4
|
4
37115-SA0-601 PackingNS |
37115-SA0-601 |
US $2.59 |
||
|
5
|
5
37238-SD2-A00 Bulb & socketT6.5 CAP) (NS) (BASE:BROWN |
37238-SD2-A00 |
US $4.07 |
||
|
7
|
7
78108-SS0-003
Panel
|
78108-SS0-003 |
— | ||
|
8
|
8
78111-SS0-003
Case
|
78111-SS0-003 |
— | ||
|
9
|
9
78120-SS0-Q01
Panel
|
78120-SS0-Q01 |
— | ||
|
10
|
10
78125-SS0-Q11
Panel
|
78125-SS0-Q11 |
— | ||
|
11
|
11
78128-SS0-901
Indicator assy.
|
78128-SS0-901 |
— | ||
|
12
|
12
78141-SS0-003
Cover
|
78141-SS0-003 |
— | ||
|
13
|
13
78155-SS0-003
Visor assy
|
78155-SS0-003 |
— | ||
|
14
|
14
78163-SS0-003
Packing
|
78163-SS0-003 |
— | ||
|
15
|
15
78181-SS0-003
Socket assy
|
78181-SS0-003 |
— | ||
|
16
|
16
90132-SL4-003
Screw-washer
|
90132-SL4-003 |
— | ||
|
17
|
17
90132-SS0-003 Screw-washer3X12 |
90132-SS0-003 |
US $1.47 |
||
|
18
|
18
90334-SH3-000
Nut
|
90334-SH3-000 |
— | ||
|
19
|
19
93903-24320 ScrewTAPPING, 4X12 |
93903-24320 |
from US $0.13 |
