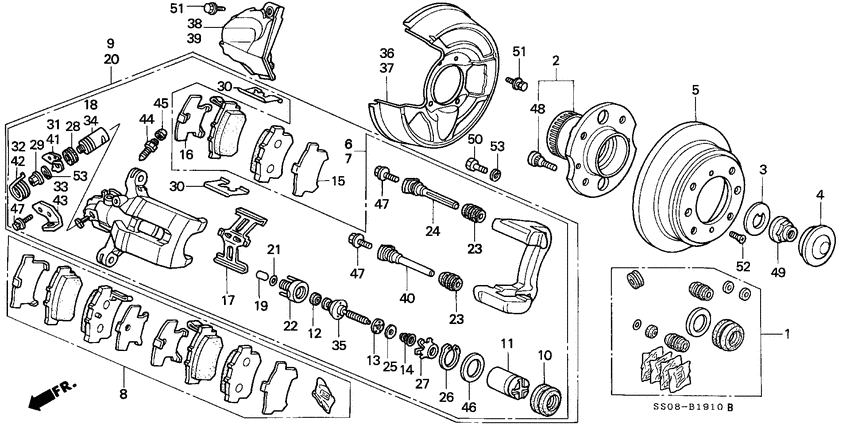

Rear brake Diagram Honda PRELUDE
- Year
- 1995
- Model code
- PRELUDE
- Sales region
- General
- Engine
- F22A
- transmission
- 4AT
- Number of doors
- 2
- grade
- S
- area code
- KQ
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
01473-SM4-010 Caliper setRR. |
01473-SM4-010 |
US $23.04 |
||
|
2
|
2
42200-SM4-A01
Bearing assy
|
42200-SM4-A01 |
— | ||
|
3
|
3
42324-SB2-020
Washer
|
42324-SB2-020 |
— | ||
|
4
|
4
42326-SG0-000
Cap
|
42326-SG0-000 |
— | ||
|
5
|
5
42510-SS0-000
Disk
|
42510-SS0-000 |
— | ||
|
5
|
5
42510-SS0-J00 DiskRR. BRAKE |
42510-SS0-J00 |
US $128 |
||
|
6
|
6
43018-SS0-000 Caliper sub assy.R. RR. |
43018-SS0-000 |
US $300.80 |
||
|
7
|
7
43019-SS0-000 Caliper sub assy.L. RR. |
43019-SS0-000 |
US $300.80 |
||
|
8
|
8
43022-SL5-000 Pad setRR. |
43022-SL5-000 |
US $96 |
||
|
11
|
11
43215-SM4-951 Piston assy. |
43215-SM4-951 |
US $26.11 |
||
|
13
|
13
43223-SD2-932 BEARING A |
43223-SD2-932 |
from US $5.18 |
||
|
14
|
14
43224-SD2-931 Spring bADJUSTING |
43224-SD2-931 |
US $9.45 |
||
|
15
|
15
43224-SP0-003
Shim
|
43224-SP0-003 |
— | ||
|
16
|
16
43225-SL5-A01
Shim
|
43225-SL5-A01 |
— | ||
|
17
|
17
43227-SG0-013 SpringPAD |
43227-SG0-013 |
US $6.03 |
||
|
18
|
18
43228-SD2-933 Shaft a |
43228-SD2-933 |
from US $18.11 |
||
|
19
|
19
43229-SD2-931 Rod |
43229-SD2-931 |
from US $2.52 |
||
|
22
|
22
43233-SD2-931 Piston compSLEEVE |
43233-SD2-931 |
US $14.21 |
||
|
24
|
24
43235-SD2-931 Pin a |
43235-SD2-931 |
US $9.61 |
||
|
25
|
25
43236-SD2-931 Spacer |
43236-SD2-931 |
US $7.12 |
||
| replacement | |||||
|
25
|
25
43236-S04-003 Spacer |
43236-S04-003 |
US $9.59 |
||
|
26
|
26
43238-SF1-003 RingRETAINING |
43238-SF1-003 |
from US $3.22 |
||
|
27
|
27
43241-SF1-003 GuideSPRING |
43241-SF1-003 |
from US $3.85 |
||
|
29
|
29
43243-SD2-931 NutPARKING |
43243-SD2-931 |
from US $3.34 |
||
|
30
|
30
43244-SG0-003 Retainer |
43244-SG0-003 |
from US $3.71 |
||
|
31
|
31
43245-SS0-003 LeverR. |
43245-SS0-003 |
US $7 |
||
|
32
|
32
43246-SS0-003
Spring
|
43246-SS0-003 |
— | ||
|
33
|
33
43247-SS0-003
Arm
|
43247-SS0-003 |
— | ||
|
34
|
34
43248-SD2-933 Shaft b |
43248-SD2-933 |
US $36.74 |
||
|
35
|
35
43249-SM4-951 BoltADJUSTER |
43249-SM4-951 |
US $7.98 |
||
|
36
|
36
43253-SS0-000
Guard
|
43253-SS0-000 |
— | ||
|
37
|
37
43254-SS0-000
Guard
|
43254-SS0-000 |
— | ||
|
38
|
38
43255-SS0-000
Protector
|
43255-SS0-000 |
— | ||
|
39
|
39
43256-SS0-000
Protector
|
43256-SS0-000 |
— | ||
|
40
|
40
43262-SD2-931
Pin b
|
43262-SD2-931 |
— | ||
| replacement | |||||
|
40
|
40
43262-S84-A51 Pin b |
43262-S84-A51 |
from US $7.25 |
||
|
41
|
41
43265-SS0-003 LeverL. |
43265-SS0-003 |
US $7 |
||
|
42
|
42
43266-SS0-003
Spring
|
43266-SS0-003 |
— | ||
|
43
|
43
43267-SS0-003
Arm
|
43267-SS0-003 |
— | ||
|
44
|
44
43352-SM4-951 ScrewBLEEDER |
43352-SM4-951 |
from US $3.26 |
||
|
45
|
45
43353-SA0-003
Cap
|
43353-SA0-003 |
— | ||
| replacement | |||||
|
45
|
45
43353-SD5-003 CapBLEEDER SCREW |
43353-SD5-003 |
from US $2.12 |
||
|
47
|
47
45240-SC2-003 BoltFLANGE, 8X22 |
45240-SC2-003 |
from US $3.03 |
||
|
48
|
48
90113-SA0-023 BoltWHEEL (TOKAI TRW) |
90113-SA0-023 |
US $2.96 |
||
| replacement | |||||
|
48
|
48
90113-SM1-005 BoltWHEEL (ROCKNEL FASTENER) |
90113-SM1-005 |
from US $3.70 |
||
|
48
|
48
90113-SA0-025 BoltWHEEL (NAGOYA RASHI) |
90113-SA0-025 |
from US $2.93 |
||
| replacement | |||||
|
48
|
48
90113-SM1-005 BoltWHEEL (ROCKNEL FASTENER) |
90113-SM1-005 |
from US $3.70 |
||
|
49
|
49
90305-692-010 Nut |
90305-692-010 |
US $6.84 |
||
|
50
|
50
92200-10025-0H BoltHEX., 10X25 |
92200-10025-0H |
US $0.74 |
||
|
51
|
51
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
52
|
52
93600-060-140-H ScrewFLAT, 6X14 |
93600-060-140-H |
from US $0.44 |
||
|
53
|
53
94111-10800 WasherSPRING, 10MM |
94111-10800 |
from US $0.44 |
||
