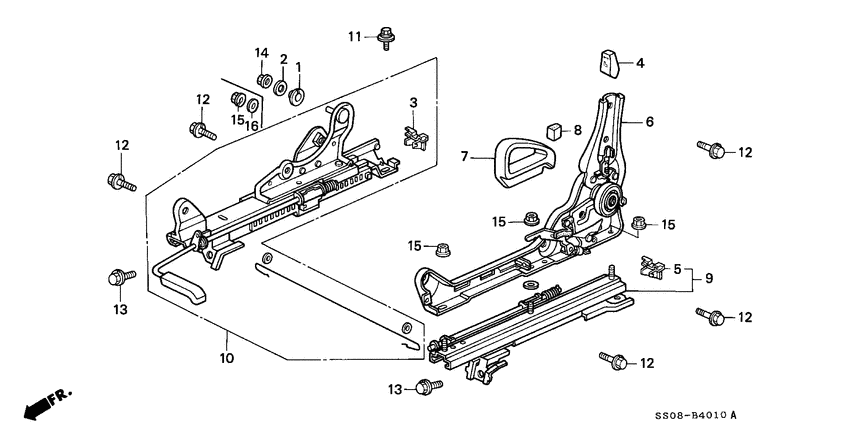

Front seat components (1) Diagram Honda PRELUDE
- Year
- 1995
- Model code
- PRELUDE
- Sales region
- General
- Engine
- F22A
- transmission
- 5MT
- Number of doors
- 2
- grade
- S
- area code
- KQ
- right-hand drive
- +
- srs driver
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
77208-SA5-003 BushNYLON (TS TECH) |
77208-SA5-003 |
US $2.80 |
||
|
2
|
2
77209-SB0-003
Washer
|
77209-SB0-003 |
— | ||
|
3
|
3
77517-SA5-014 CapSLIDE ADJUSTER |
77517-SA5-014 |
US $4.48 |
||
|
5
|
5
81261-SM4-J32 CapRAIL END LOWER |
81261-SM4-J32 |
US $3.92 |
||
|
6
|
6
81630-SS0-J21
Adjuster
|
81630-SS0-J21 |
— | ||
|
7
|
7
81631-SF1-J02ZE
Knob
|
81631-SF1-J02ZE |
— | ||
|
9
|
9
81660-SS0-G01
Adjuster
|
81660-SS0-G01 |
— | ||
|
10
|
10
81670-SS0-A01
Adjuster
|
81670-SS0-A01 |
— | ||
|
11
|
11
90135-SS1-000 Bolt-washer10X18 |
90135-SS1-000 |
US $3.08 |
||
|
12
|
12
90143-SV4-003 Bolt-washer10X22 |
90143-SV4-003 |
US $2.31 |
||
|
13
|
13
93405-100-200-7 Bolt-washer10X20 |
93405-100-200-7 |
US $0.86 |
||
|
14
|
14
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
15
|
15
94070-08080 Nut-washer8MM |
94070-08080 |
from US $0.52 |
