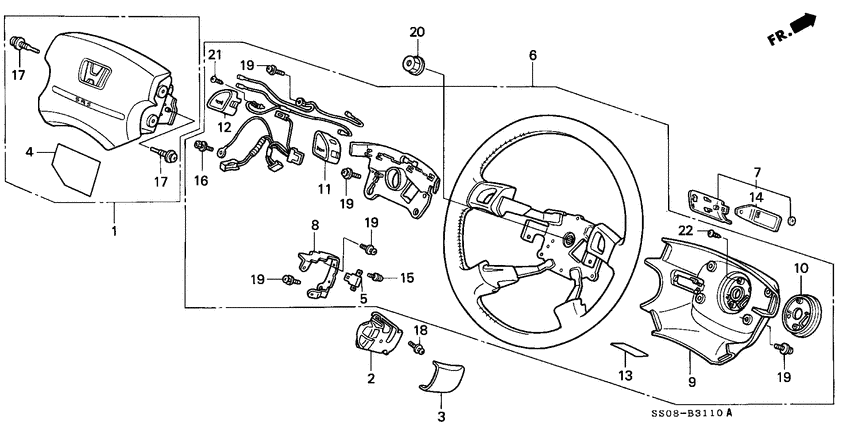

Steering wheel (3; SRS) Diagram Honda PRELUDE
- Year
- 1995
- Model code
- PRELUDE
- Sales region
- General
- Engine
- F22A
- transmission
- 5MT
- Number of doors
- 2
- grade
- S
- area code
- KQ
- right-hand drive
- +
- srs driver
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
06770-SM4-G80ZB
Module kit
|
06770-SM4-G80ZB |
— | ||
|
2
|
2
36770-SR3-A01
Switch assy
|
36770-SR3-A01 |
— | ||
|
3
|
3
36771-SM4-J81
Cover
|
36771-SM4-J81 |
— | ||
|
4
|
4
77954-SR3-G80
Label
|
77954-SR3-G80 |
— | ||
|
6
|
6
78510-SM4-J92ZB
Wheel comp.
|
78510-SM4-J92ZB |
— | ||
|
7
|
7
78514-SR3-J82ZB
Cap
|
78514-SR3-J82ZB |
— | ||
|
8
|
8
78517-SM4-J81
Plate
|
78517-SM4-J81 |
— | ||
|
9
|
9
78518-SM4-J81ZC
Cover
|
78518-SM4-J81ZC |
— | ||
|
10
|
10
78519-SR3-J81
Spacer
|
78519-SR3-J81 |
— | ||
|
11
|
11
78521-SR3-J81ZD
Button
|
78521-SR3-J81ZD |
— | ||
|
12
|
12
78522-SR3-J81ZD
Button
|
78522-SR3-J81ZD |
— | ||
|
13
|
13
78527-SR3-J81
Label
|
78527-SR3-J81 |
— | ||
|
14
|
14
78529-SR3-J82
Label
|
78529-SR3-J82 |
— | ||
|
15
|
15
90123-SL4-003
Screw-washer
|
90123-SL4-003 |
— | ||
|
16
|
16
90123-SR3-J80 BoltMASKING, 5X12 |
90123-SR3-J80 |
US $1.68 |
||
|
17
|
17
90134-SR3-J81
Bolt
|
90134-SR3-J81 |
— | ||
|
18
|
18
90171-SL4-003 Screw-washer4X10 |
90171-SL4-003 |
US $1.82 |
||
|
19
|
19
90172-SL4-003 Screw-washer5X12 |
90172-SL4-003 |
US $1.19 |
||
|
20
|
20
90380-SB2-003 NutSELF-LOCK (OHASHI) |
90380-SB2-003 |
from US $2.28 |
||
|
21
|
21
93911-24120 ScrewTAPPING, 4X10 (PO) |
93911-24120 |
from US $0.37 |
||
|
22
|
22
93913-14180 ScrewTAPPING, 4X10 (PO) |
93913-14180 |
from US $0.37 |
