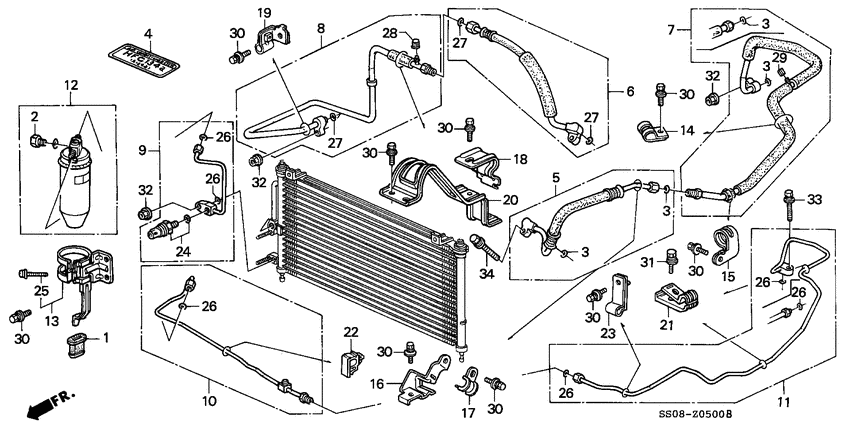

Air conditioner (HOSES/PIPES) Diagram Honda PRELUDE
- Year
- 1995
- Model code
- PRELUDE
- Sales region
- General
- Engine
- F22A
- transmission
- 4AT
- Number of doors
- 2
- grade
- S
- area code
- KQ
- right-hand drive
- +
- srs driver
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38601-SA7-000
Rubber
|
38601-SA7-000 |
— | ||
|
3
|
3
80871-SL0-900 O-ring5/8" |
80871-SL0-900 |
US $3.51 |
||
|
4
|
4
80050-SP0-000 LabelAIR CONDITIONER CAUTION (HFC134A) |
80050-SP0-000 |
from US $1.35 |
||
|
5
|
5
80310-SS0-003
Hose comp.
|
80310-SS0-003 |
— | ||
|
6
|
6
80315-SS0-H02 Hose comp.DISCHARGE (NICHIRIN) |
80315-SS0-H02 |
US $133.12 |
||
|
7
|
7
80321-SS0-J01
Pipe
|
80321-SS0-J01 |
— | ||
|
8
|
8
80325-SS0-H01
Pipe
|
80325-SS0-H01 |
— | ||
|
9
|
9
80331-SS0-H01
Pipe
|
80331-SS0-H01 |
— | ||
|
10
|
10
80341-SS0-J01
Pipe a
|
80341-SS0-J01 |
— | ||
|
11
|
11
80342-SS0-J01
Pipe b
|
80342-SS0-J01 |
— | ||
|
12
|
12
80351-SS0-H01 Receiver compSAK |
80351-SS0-H01 |
US $153.60 |
||
|
13
|
13
80352-SS0-010
Bracket
|
80352-SS0-010 |
— | ||
|
14
|
14
80361-SS0-000
Clamp a
|
80361-SS0-000 |
— | ||
|
15
|
15
80362-SS0-000
Clamp b
|
80362-SS0-000 |
— | ||
|
16
|
16
80367-SS0-010
Clamp b
|
80367-SS0-010 |
— | ||
|
17
|
17
80368-SS0-010
Holder
|
80368-SS0-010 |
— | ||
|
18
|
18
80369-SS0-000
Stay
|
80369-SS0-000 |
— | ||
|
19
|
19
80372-SS0-000
Clamp b
|
80372-SS0-000 |
— | ||
|
20
|
20
80378-SS0-000
Bracket
|
80378-SS0-000 |
— | ||
|
21
|
21
80381-SL0-A01 ClampRECEIVER PIPE |
80381-SL0-A01 |
US $3.99 |
||
|
22
|
22
80381-SS0-003 Clamp aRECEIVER PIPE |
80381-SS0-003 |
US $2.45 |
||
|
23
|
23
80383-SS0-000
Clamp c
|
80383-SS0-000 |
— | ||
|
24
|
24
80440-SS0-901
Switch
|
80440-SS0-901 |
— | ||
|
25
|
25
93403-050-250-8 Bolt-washer5X25 |
93403-050-250-8 |
US $0.74 |
||
|
26
|
26
80873-SL0-900 O-ring8MM |
80873-SL0-900 |
US $2.86 |
||
|
27
|
27
80872-SL0-900 O-ring1/2" |
80872-SL0-900 |
US $3.51 |
||
|
28
|
28
80865-SL0-003 CapVALVE (H) |
80865-SL0-003 |
US $5.14 |
||
|
29
|
29
80866-SL0-003 CapVALVE(L) |
80866-SL0-003 |
US $5.14 |
||
|
30
|
30
93403-060-160-5 Bolt-washer6X16 |
93403-060-160-5 |
US $0.59 |
||
|
31
|
31
93405-060-160-5 Bolt-washer6X16 |
93405-060-160-5 |
US $0.59 |
||
|
32
|
32
90308-SD2-A00 NutFLANGE, 6MM (DACRO COATING) |
90308-SD2-A00 |
US $4.45 |
||
|
34
|
34
95701-080-300-8 BoltFLANGE, 8X30 |
95701-080-300-8 |
from US $0.74 |
