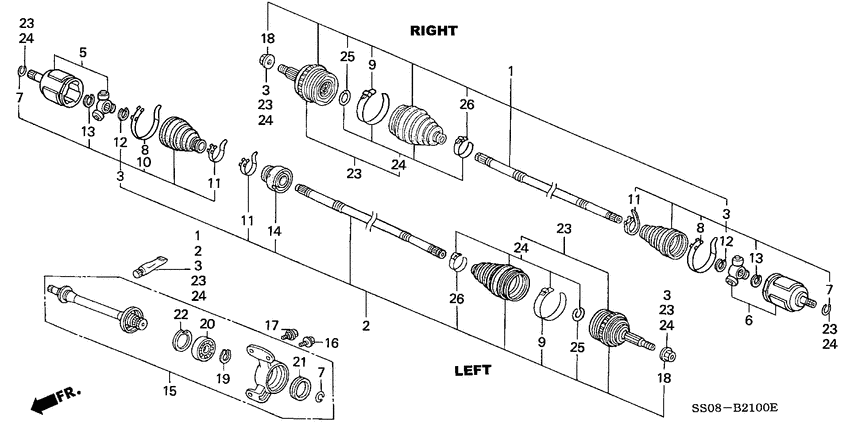

Front driveshaft/ half shaft Diagram Honda PRELUDE
- Year
- 1995
- Model code
- PRELUDE
- Sales region
- General
- Engine
- F22A
- transmission
- 4AT
- Number of doors
- 2
- grade
- S
- area code
- KQ
- right-hand drive
- +
- srs driver
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44010-SS0-030 Driveshaft setR. |
44010-SS0-030 |
US $405.76 |
||
|
2
|
2
44011-SS0-N02 Driveshaft setL. |
44011-SS0-N02 |
US $459.52 |
||
|
3
|
3
44017-SS0-010 Boot setINBOARD |
44017-SS0-010 |
US $65.28 |
||
|
3
|
3
44017-SS0-N00 Boot setINBOARD |
44017-SS0-N00 |
US $65.28 |
||
|
5
|
5
44310-SM4-980 Joint compINBOARD |
44310-SM4-980 |
US $353.28 |
||
|
6
|
6
44310-SS0-300 Joint compINBOARD |
44310-SS0-300 |
US $349.44 |
||
|
7
|
7
44319-SE0-000
Set ring
|
44319-SE0-000 |
— | ||
| replacement | |||||
|
7
|
7
44319-S84-300 Set ring28X2.0 |
44319-S84-300 |
US $5.08 |
||
|
8
|
8
44327-SB0-300 BandOUTBOARD BOOT |
44327-SB0-300 |
US $8.40 |
||
|
9
|
9
44327-SV4-305 BandJOINT BOOT (DOUBLE ROLLED BAND) |
44327-SV4-305 |
from US $7.25 |
||
|
10
|
10
44328-SB0-300 BandINBOARD BOOT |
44328-SB0-300 |
US $8.26 |
||
|
11
|
11
44329-SB0-300 BandDRIVESHAFT BOOT |
44329-SB0-300 |
US $9.80 |
||
|
12
|
12
44336-SB0-300 Ring aSTOPPER |
44336-SB0-300 |
US $1.89 |
||
|
13
|
13
44338-SB0-300 Circlip26MM |
44338-SB0-300 |
from US $2.24 |
||
|
14
|
14
44351-SM4-982
Weight
|
44351-SM4-982 |
— | ||
|
18
|
18
90305-SD4-003 NutSPINDLE (24MM) |
90305-SD4-003 |
US $6.35 |
||
|
23
|
23
44014-SS0-000 Joint setOUTBOARD |
44014-SS0-000 |
US $293.12 |
||
|
24
|
24
44018-S30-C00 Boot setOUTBOARD |
44018-S30-C00 |
US $67.20 |
||
|
25
|
25
44337-SB0-300 Ring bSTOPPER |
44337-SB0-300 |
US $1.75 |
||
|
26
|
26
44329-SV4-305 BandSHAFT BOOT (DOUBLE ROLLED BAND) |
44329-SV4-305 |
from US $5.92 |
||
