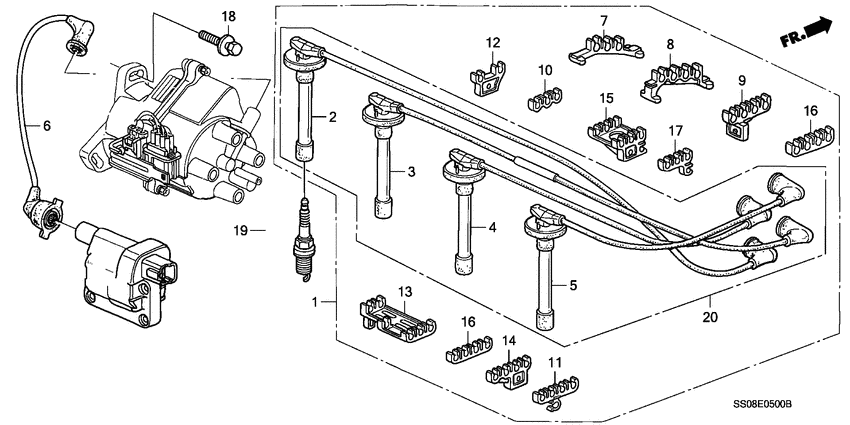

High tension cord/plug Diagram Honda PRELUDE
- Year
- 1995
- Model code
- PRELUDE
- Sales region
- General
- Engine
- F22A
- transmission
- 4AT
- Number of doors
- 2
- grade
- S
- area code
- KQ
- right-hand drive
- +
- srs driver
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32722-PT3-A00
Cord assy
|
32722-PT3-A00 |
— | ||
|
2
|
2
32701-PT0-000
Cord comp
|
32701-PT0-000 |
— | ||
|
3
|
3
32702-PT0-000
Cord comp
|
32702-PT0-000 |
— | ||
|
4
|
4
32703-PT0-000
Cord comp
|
32703-PT0-000 |
— | ||
| replacement | |||||
|
4
|
4
32703-P0B-A00 Cord compRESISTANCE (NO.3) (SUMITOMO) |
32703-P0B-A00 |
US $26.62 |
||
|
5
|
5
32704-PT0-000
Cord comp
|
32704-PT0-000 |
— | ||
|
6
|
6
32723-PT3-A00
Cord comp
|
32723-PT3-A00 |
— | ||
|
11
|
11
32764-PT3-A00
Clamp a assy.
|
32764-PT3-A00 |
— | ||
|
13
|
13
32765-PT0-000
Clamp a
|
32765-PT0-000 |
— | ||
|
14
|
14
32766-PM3-000 Clamp bHIGH TENSION CORD |
32766-PM3-000 |
US $12.87 |
||
|
18
|
18
90003-P01-000 Bolt-washer8X28 |
90003-P01-000 |
from US $3.58 |
||
|
19
|
19
98079-5614G PlugSPARK (ZFR6F-11) (NGK) |
98079-5614G |
from US $5.20 |
||
|
19
|
19
98079-5615G PlugSPARK (KJ20CR-L11) (DENSO) |
98079-5615G |
from US $5.31 |
||
|
19
|
19
98079-5714G PlugSPARK (ZFR7F-11) (NGK) |
98079-5714G |
from US $5.85 |
||
|
19
|
19
98079-5515G PlugSPARK (KJ16CR-L11) (DENSO) |
98079-5515G |
from US $5.49 |
||
|
19
|
19
98079-5715G PlugSPARK (KJ22CR-L11) (DENSO) |
98079-5715G |
from US $5.85 |
||
|
19
|
19
98079-5514G PlugSPARK (ZFR5F-11) (NGK) |
98079-5514G |
from US $4.57 |
||
|
20
|
20
32722-P0B-405 Cord comp (Auto)HIGH TENSION (SUMITOMO) |
32722-P0B-405 |
US $116.48 |
||
