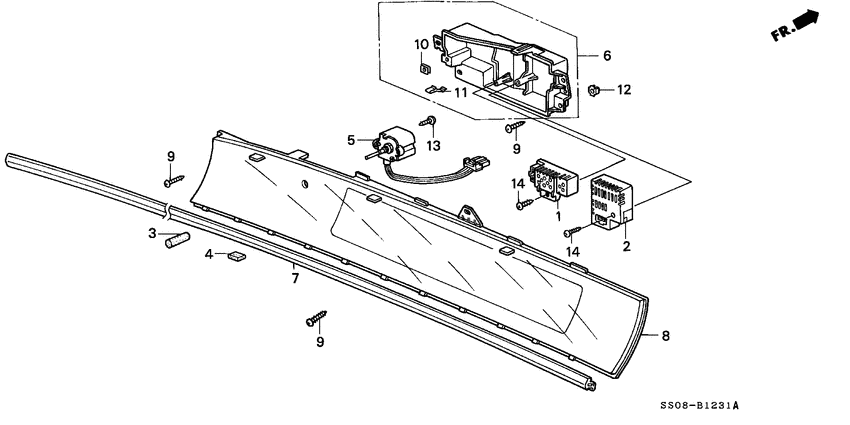

Meter visor (RH) Diagram Honda PRELUDE
- Year
- 1995
- Model code
- PRELUDE
- Sales region
- General
- Engine
- F22A
- transmission
- 4AT
- Number of doors
- 2
- grade
- S
- area code
- KQ
- right-hand drive
- +
- srs driver
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35150-SF1-003
Controller
|
35150-SF1-003 |
— | ||
|
3
|
3
37106-SJ4-J00
Knob
|
37106-SJ4-J00 |
— | ||
|
4
|
4
37115-SA0-601 PackingNS |
37115-SA0-601 |
US $2.59 |
||
|
5
|
5
39702-SS0-003
Switch assy
|
39702-SS0-003 |
— | ||
|
6
|
6
78110-SS0-013
Case assy.
|
78110-SS0-013 |
— | ||
|
7
|
7
78117-SS0-003
Seal
|
78117-SS0-003 |
— | ||
|
8
|
8
78118-SS0-003
Visor assy
|
78118-SS0-003 |
— | ||
|
9
|
9
90102-SA4-000 ScrewTAPPING, 4X16 |
90102-SA4-000 |
US $0.80 |
||
| replacement | |||||
|
9
|
9
93913-14480 ScrewTAPPING, 4X16 (PO) |
93913-14480 |
from US $0.37 |
||
|
10
|
10
90302-SA4-003 NutSPRING, 4MM |
90302-SA4-003 |
from US $2.59 |
||
|
11
|
11
90667-SS0-003
Clip
|
90667-SS0-003 |
— | ||
|
12
|
12
91640-SM4-003 GrommetSCREW, 4MM |
91640-SM4-003 |
US $1.95 |
||
|
13
|
13
93901-34220 ScrewTAPPING, 4X10 |
93901-34220 |
from US $0.37 |
||
|
14
|
14
93913-14280 ScrewTAPPING, 4X12 (PO) |
93913-14280 |
from US $0.37 |
||
