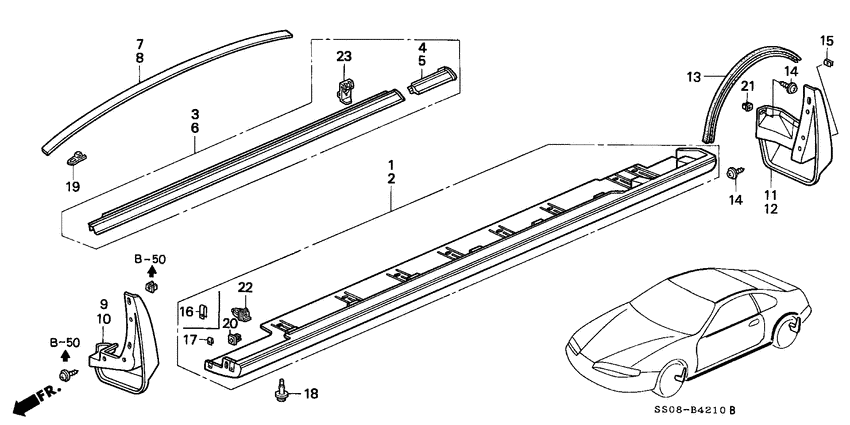

Side protectors Diagram Honda PRELUDE
- Year
- 1995
- Model code
- PRELUDE
- Sales region
- General
- Engine
- F22A
- transmission
- 4AT
- Number of doors
- 2
- grade
- S
- area code
- KQ
- right-hand drive
- +
- srs driver
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
71800-SS0-000
Garnish assy
|
71800-SS0-000 |
— | ||
|
2
|
2
71850-SS0-000
Garnish assy
|
71850-SS0-000 |
— | ||
|
3
|
3
72410-SS0-003
Molding assy.
|
72410-SS0-003 |
— | ||
|
4
|
4
72412-SS0-003
Cap
|
72412-SS0-003 |
— | ||
|
5
|
5
72417-SS0-003
Cap
|
72417-SS0-003 |
— | ||
|
6
|
6
72450-SS0-003
Molding assy.
|
72450-SS0-003 |
— | ||
|
7
|
7
74306-SS0-003
Molding assy.
|
74306-SS0-003 |
— | ||
|
8
|
8
74316-SS0-003
Molding assy.
|
74316-SS0-003 |
— | ||
|
9
|
9
75800-SS0-010
Mudguard
|
75800-SS0-010 |
— | ||
|
10
|
10
75810-SS0-010
Mudguard
|
75810-SS0-010 |
— | ||
|
11
|
11
75820-SS0-010
Mudguard
|
75820-SS0-010 |
— | ||
|
12
|
12
75830-SS0-010
Mudguard
|
75830-SS0-010 |
— | ||
|
13
|
13
85862-SD2-A10 ProtectorRR. WHEEL ARCH |
85862-SD2-A10 |
US $20.26 |
||
|
14
|
14
90139-SE0-003 Screw-washer5X25 |
90139-SE0-003 |
from US $2.19 |
||
|
15
|
15
90324-SM4-000 NutSUSPENSION, 5MM |
90324-SM4-000 |
US $2.66 |
||
|
17
|
17
90331-SS0-000 NutSPRING, 5MM |
90331-SS0-000 |
US $1.89 |
||
|
18
|
18
90505-SM4-003 ClipGARNISH |
90505-SM4-003 |
US $2.89 |
||
| replacement | |||||
|
18
|
18
90505-SX0-003 ClipGARNISH |
90505-SX0-003 |
US $2.89 |
||
|
19
|
19
90666-SS0-003 ClipROOF MOLDING |
90666-SS0-003 |
US $1.54 |
||
|
20
|
20
90668-SA5-003 GrommetSCREW, 6MM |
90668-SA5-003 |
US $2.80 |
||
|
21
|
21
90682-SB0-003 GrommetSCREW, 5MM |
90682-SB0-003 |
US $1.55 |
||
|
22
|
22
91513-SM4-000 ClipSIDE SILL UPPER GARNISH |
91513-SM4-000 |
from US $2.38 |
||
|
23
|
23
91523-SS0-003
Clip
|
91523-SS0-003 |
— | ||
