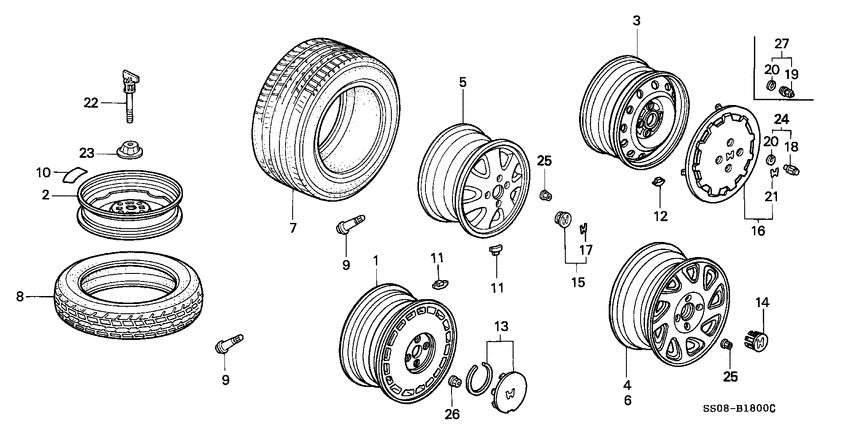

Tire/wheel disk Diagram Honda PRELUDE
- Year
- 1995
- Model code
- PRELUDE
- Sales region
- General
- Engine
- F22A
- transmission
- 4AT
- Number of doors
- 2
- grade
- S
- area code
- KQ
- right-hand drive
- +
- srs driver
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
42700-SM4-J12 DiskWHEEL (15X4T) (KANAI) |
42700-SM4-J12 |
US $135.68 |
||
|
3
|
3
42700-SS0-A01 DiskWHEEL (14X5 1/2JJ) (BLACK) (KANAI) |
42700-SS0-A01 |
US $124.16 |
||
|
4
|
4
42700-SS0-G81
Disk
|
42700-SS0-G81 |
— | ||
|
6
|
6
42710-SS0-G81
Disk
|
42710-SS0-G81 |
— | ||
|
7
|
7
42751-SS0-N01
Tire
|
42751-SS0-N01 |
— | ||
|
7
|
7
42751-SS0-G01
Tire
|
42751-SS0-G01 |
— | ||
|
7
|
7
42751-SS0-G02
Tire
|
42751-SS0-G02 |
— | ||
|
8
|
8
42751-SS0-G74
Tire
|
42751-SS0-G74 |
— | ||
|
8
|
8
42751-SS0-G73
Tire
|
42751-SS0-G73 |
— | ||
|
9
|
9
42753-SE0-A02 ValveRIM (SCHRADER) |
42753-SE0-A02 |
US $20.10 |
||
| replacement | |||||
|
9
|
9
42753-SB8-661 ValveRIM (SCHRADER) |
42753-SB8-661 |
US $27.50 |
||
|
10
|
10
42767-SB0-600 PlateSPARE TIRE CAUTION (T-TYPE) (ENGLISH) |
42767-SB0-600 |
US $2.45 |
||
|
11
|
11
44721-SF1-A01
Weight
|
44721-SF1-A01 |
— | ||
|
11
|
11
44728-SF1-A01
Weight
|
44728-SF1-A01 |
— | ||
|
11
|
11
44726-SF1-A01
Weight
|
44726-SF1-A01 |
— | ||
|
11
|
11
44724-SF1-A01
Weight
|
44724-SF1-A01 |
— | ||
|
11
|
11
44722-SF1-A01
Weight
|
44722-SF1-A01 |
— | ||
|
11
|
11
44729-SF1-A01
Weight
|
44729-SF1-A01 |
— | ||
|
11
|
11
44727-SF1-A01
Weight
|
44727-SF1-A01 |
— | ||
|
11
|
11
44723-SF1-A01
Weight
|
44723-SF1-A01 |
— | ||
|
11
|
11
44730-SF1-A01
Weight
|
44730-SF1-A01 |
— | ||
|
12
|
12
44721-SM4-003
Weight
|
44721-SM4-003 |
— | ||
|
12
|
12
44728-SM4-003
Weight
|
44728-SM4-003 |
— | ||
|
12
|
12
44726-SM4-003
Weight
|
44726-SM4-003 |
— | ||
|
12
|
12
44724-SM4-003
Weight
|
44724-SM4-003 |
— | ||
|
12
|
12
44722-SM4-003
Weight
|
44722-SM4-003 |
— | ||
|
12
|
12
44729-SM4-003
Weight
|
44729-SM4-003 |
— | ||
|
12
|
12
44727-SM4-003
Weight
|
44727-SM4-003 |
— | ||
|
12
|
12
44725-SM4-003
Weight
|
44725-SM4-003 |
— | ||
|
12
|
12
44723-SM4-003
Weight
|
44723-SM4-003 |
— | ||
|
12
|
12
44730-SM4-003
Weight
|
44730-SM4-003 |
— | ||
|
14
|
14
44732-SS0-A00
Cap
|
44732-SS0-A00 |
— | ||
|
16
|
16
44733-SS0-A02
Trim
|
44733-SS0-A02 |
— | ||
|
20
|
20
44737-SA0-981
Washer
|
44737-SA0-981 |
— | ||
|
22
|
22
74654-SM4-A00 BoltANCHOR (58MM) |
74654-SM4-A00 |
US $6.44 |
||
|
23
|
23
74665-SM4-A00 AdapterANCHOR BOLT |
74665-SM4-A00 |
US $5.48 |
||
|
25
|
25
90304-SF0-751 NutWHEEL (FUSE RASHI) |
90304-SF0-751 |
from US $5.33 |
||
