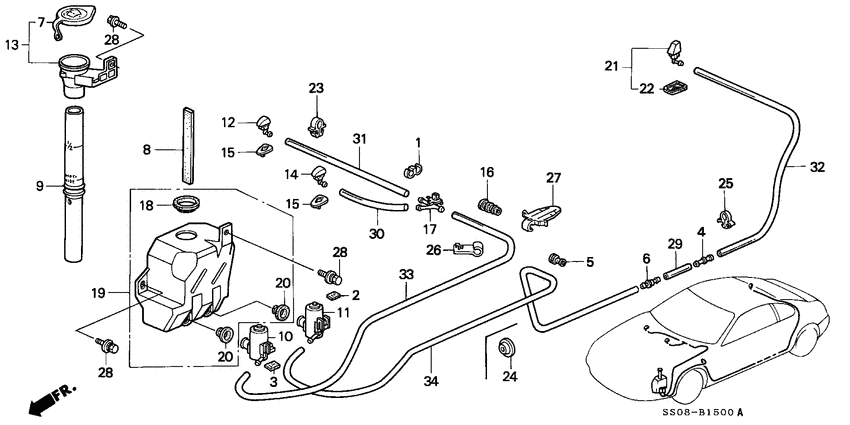

Windshield washer Diagram Honda PRELUDE
- Year
- 1995
- Model code
- PRELUDE
- Sales region
- General
- Engine
- F22A
- transmission
- 4AT
- Number of doors
- 2
- grade
- S
- area code
- KQ
- right-hand drive
- +
- srs driver
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36062-671-000
Clamp b
|
36062-671-000 |
— | ||
|
3
|
3
76807-SE0-003
Packing
|
76807-SE0-003 |
— | ||
|
7
|
7
76802-SS0-003 CapMOUTH |
76802-SS0-003 |
from US $6.77 |
||
|
8
|
8
76804-SS0-003
Float
|
76804-SS0-003 |
— | ||
|
9
|
9
76805-SM4-A02
Hose
|
76805-SM4-A02 |
— | ||
|
10
|
10
76806-SE0-S01 MotorWASHER (MITSUBA) |
76806-SE0-S01 |
US $41.98 |
||
|
12
|
12
76810-SS0-003ZF Nozzle assy.R. WINDSHIELD WASHER *NH552M* |
76810-SS0-003ZF |
US $18.94 |
||
|
12
|
12
76810-SS0-003ZE Nozzle assy.R. WINDSHIELD WASHER *NH538* |
76810-SS0-003ZE |
US $18.94 |
||
|
12
|
12
76810-SS0-981
Nozzle assy.
|
76810-SS0-981 |
— | ||
|
12
|
12
76810-SS0-003ZQ
Nozzle assy.
|
76810-SS0-003ZQ |
— | ||
|
13
|
13
76812-SS0-003 Mouth assy.WASHER |
76812-SS0-003 |
US $7.98 |
||
|
14
|
14
76815-SS0-981
Nozzle assy.
|
76815-SS0-981 |
— | ||
|
14
|
14
76815-SS0-003ZQ Nozzle assy.L. WINDSHIELD WASHER *R78P* |
76815-SS0-003ZQ |
US $18.94 |
||
|
14
|
14
76815-SS0-003ZF
Nozzle assy.
|
76815-SS0-003ZF |
— | ||
|
14
|
14
76815-SS0-003ZE Nozzle assy.L. WINDSHIELD WASHER *NH538* |
76815-SS0-003ZE |
US $18.94 |
||
|
15
|
15
76816-SS0-003
Adapter
|
76816-SS0-003 |
— | ||
|
16
|
16
76820-SS0-003
Grommet
|
76820-SS0-003 |
— | ||
|
17
|
17
76830-SM4-003 Joint yWASHER |
76830-SM4-003 |
from US $2.74 |
||
|
18
|
18
76838-SK7-003 GrommetWASHER TANK |
76838-SK7-003 |
US $3.36 |
||
|
19
|
19
76841-SS0-A01
Tank
|
76841-SS0-A01 |
— | ||
|
20
|
20
38519-SB0-003 BushWASHER TANK (MITSUBA) |
38519-SB0-003 |
from US $2.97 |
||
|
23
|
23
90652-SB2-023 ClipTUBE, 7MM |
90652-SB2-023 |
from US $2.22 |
||
|
24
|
24
90855-SB1-000
Plug
|
90855-SB1-000 |
— | ||
|
26
|
26
91512-SE0-003 ClipWASHER TUBE |
91512-SE0-003 |
US $2.31 |
||
|
27
|
27
91539-SS0-003 ClipTUBE WASHER |
91539-SS0-003 |
US $2.59 |
||
|
28
|
28
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
30
|
30
95003-070-277-0
Tube
|
95003-070-277-0 |
— | ||
|
31
|
31
95003-070-737-0
Tube
|
95003-070-737-0 |
— | ||
|
33
|
33
95003-071-987-0
Tube
|
95003-071-987-0 |
— |
