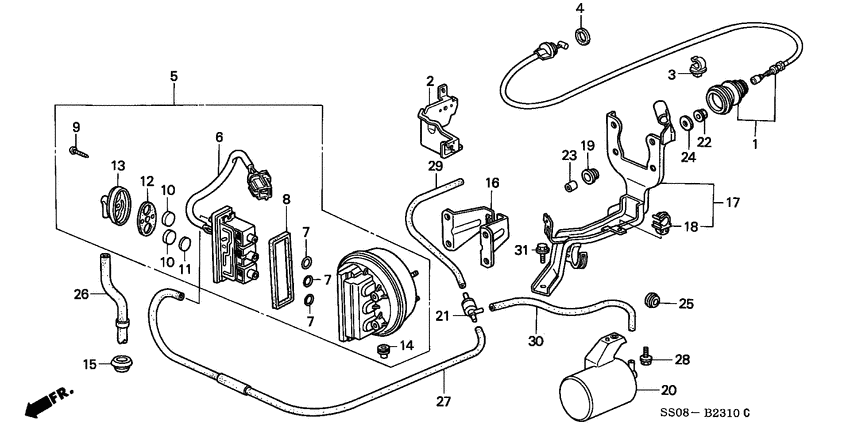

Auto cruise (LH) Diagram Honda PRELUDE
- Year
- 1995
- Model code
- PRELUDE
- Sales region
- General
- Engine
- F22A
- transmission
- 5MT
- Number of doors
- 2
- grade
- SI
- area code
- KY
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17880-SS0-A03
Wire
|
17880-SS0-A03 |
— | ||
|
2
|
2
17886-SS0-Y01
Stay
|
17886-SS0-Y01 |
— | ||
|
3
|
3
17887-SS0-003 ClipACTUATOR WIRE |
17887-SS0-003 |
US $2.17 |
||
|
4
|
4
17921-SA4-730 SealTHROTTLE CABLE |
17921-SA4-730 |
US $5.86 |
||
|
5
|
5
36520-PT3-A01
Actuator assy
|
36520-PT3-A01 |
— | ||
|
6
|
6
36521-PT3-A01
Valve comp
|
36521-PT3-A01 |
— | ||
|
7
|
7
36522-PC1-004
O-ring
|
36522-PC1-004 |
— | ||
|
8
|
8
36523-PT3-A00
Packing
|
36523-PT3-A00 |
— | ||
|
9
|
9
36524-PC1-004
Screw
|
36524-PC1-004 |
— | ||
|
10
|
10
36525-PC1-004
Filter
|
36525-PC1-004 |
— | ||
|
11
|
11
36526-PC1-004
Paper
|
36526-PC1-004 |
— | ||
|
12
|
12
36527-PT3-A00
Packing
|
36527-PT3-A00 |
— | ||
|
13
|
13
36528-PT3-A00
Cover
|
36528-PT3-A00 |
— | ||
|
14
|
14
36529-PC1-014
Drain
|
36529-PC1-014 |
— | ||
|
15
|
15
36600-PD2-000
Grommet
|
36600-PD2-000 |
— | ||
|
16
|
16
36612-PC6-000
Support comp
|
36612-PC6-000 |
— | ||
|
17
|
17
36613-P12-A00
Stay comp
|
36613-P12-A00 |
— | ||
|
18
|
18
36615-PJ5-003 ClampTUBE, 4.5(NATURAL) |
36615-PJ5-003 |
US $1.54 |
||
|
19
|
19
36619-PC6-004 RubberMOUNTING |
36619-PC6-004 |
US $2.52 |
||
|
20
|
20
36625-PT0-003
Tank comp.
|
36625-PT0-003 |
— | ||
|
21
|
21
36627-PT0-004
Valve
|
36627-PT0-004 |
— | ||
|
22
|
22
90308-SD2-A00 NutFLANGE, 6MM (DACRO COATING) |
90308-SD2-A00 |
US $4.45 |
||
|
23
|
23
90526-PC1-000 CollarDISTANCE |
90526-PC1-000 |
US $2.24 |
||
|
24
|
24
90528-PC1-000
Washer
|
90528-PC1-000 |
— | ||
|
25
|
25
90852-680-000
Grommet
|
90852-680-000 |
— | ||
|
26
|
26
91426-P12-A00
Tube comp
|
91426-P12-A00 |
— | ||
|
27
|
27
91442-P12-A00
Tube comp
|
91442-P12-A00 |
— | ||
|
28
|
28
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
29
|
29
95005-452-201-0 Tube4.5X220 (95005-45001-10M) |
95005-452-201-0 |
US $4 |
||
|
30
|
30
95005-452-401-0 Tube4.5X240 (95005-45001-10M) |
95005-452-401-0 |
US $4 |
||
|
31
|
31
95701-060-100-8 BoltFLANGE, 6X10 |
95701-060-100-8 |
from US $0.52 |
