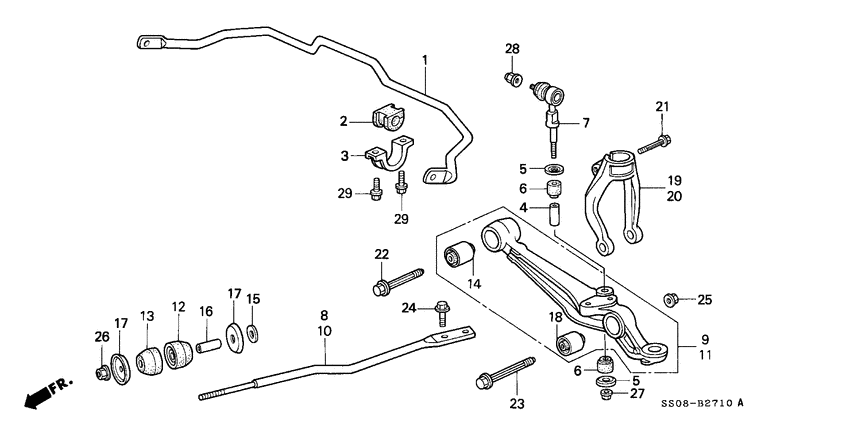

Front stabilizer/ front lower arm Diagram Honda PRELUDE
- Year
- 1995
- Model code
- PRELUDE
- Sales region
- General
- Engine
- F22A
- transmission
- 5MT
- Number of doors
- 2
- grade
- SI
- area code
- KY
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51300-SS0-003
Spring
|
51300-SS0-003 |
— | ||
|
2
|
2
51306-SM4-010 BushSTABILIZER HOLDER |
51306-SM4-010 |
US $8.44 |
||
|
3
|
3
51308-SG0-020 BracketFR. STABILIZER |
51308-SG0-020 |
US $7.14 |
||
|
4
|
4
51312-SM4-000 Collar bSTABILIZER END (27.2MM) |
51312-SM4-000 |
US $4.65 |
||
|
5
|
5
51313-SS0-000
Washer
|
51313-SS0-000 |
— | ||
|
6
|
6
51314-SM4-020 RubberSTABILIZER END |
51314-SM4-020 |
US $3.74 |
||
|
7
|
7
51320-SS0-003 LinkFR. STABILIZER |
51320-SS0-003 |
US $72.96 |
||
|
8
|
8
51352-SS0-003
Rod
|
51352-SS0-003 |
— | ||
|
9
|
9
51355-SS0-000 Arm compR. FR. LOWER |
51355-SS0-000 |
US $180.48 |
||
|
10
|
10
51362-SS0-003
Rod
|
51362-SS0-003 |
— | ||
|
11
|
11
51365-SS0-000 Arm compL. FR. LOWER |
51365-SS0-000 |
US $180.48 |
||
|
12
|
12
51381-SM4-013
Bush
|
51381-SM4-013 |
— | ||
|
13
|
13
51391-SM4-013 BushFR. RADIUS ROD (FR.) |
51391-SM4-013 |
from US $8.44 |
||
|
14
|
14
51393-SL5-013 BushFR. LOWER ARM |
51393-SL5-013 |
from US $19.22 |
||
|
15
|
15
51394-SM4-010
Washer
|
51394-SM4-010 |
— | ||
|
16
|
16
51398-SM4-000 CollarRADIUS ROD |
51398-SM4-000 |
from US $5.32 |
||
|
17
|
17
51399-SM4-000
Washer
|
51399-SM4-000 |
— | ||
|
18
|
18
51810-SS0-004
Bush
|
51810-SS0-004 |
— | ||
|
19
|
19
51811-SS0-000
Fork
|
51811-SS0-000 |
— | ||
|
20
|
20
51821-SS0-000
Fork
|
51821-SS0-000 |
— | ||
|
21
|
21
90117-SM4-003 BoltFR. SHOCK ABSORBER LOCK (10X44) |
90117-SM4-003 |
US $3.74 |
||
|
22
|
22
90118-SL4-003 BoltSELF-LOCK, 12X84 |
90118-SL4-003 |
US $7.56 |
||
|
23
|
23
90121-SM4-010 BoltSHOCK ABSORBER FORK (12X98) |
90121-SM4-010 |
US $4.88 |
||
|
24
|
24
90178-SM4-013 BoltFR. RADIUS ROD (12X31) |
90178-SM4-013 |
US $5.04 |
||
|
25
|
25
90215-SB0-003 NutSELF-LOCK, 12MM (SATO RASHI) (CLINCH) |
90215-SB0-003 |
from US $3.20 |
||
|
26
|
26
90303-SF1-003 NutSELF-LOCK, 12MM |
90303-SF1-003 |
US $4.14 |
||
|
27
|
27
90362-SF1-003 NutSELF-LOCK, 8MM |
90362-SF1-003 |
US $3.51 |
||
|
28
|
28
90362-SG0-013
Nut
|
90362-SG0-013 |
— | ||
| replacement | |||||
|
28
|
28
90215-SMA-003 Nut |
90215-SMA-003 |
US $3.91 |
||
|
29
|
29
93412-080-160-8 Bolt-washer8X16 |
93412-080-160-8 |
from US $0.67 |
||
| replacement | |||||
|
29
|
29
93402-080-160-8 Bolt-washer8X16 |
93402-080-160-8 |
from US $0.67 |
||
