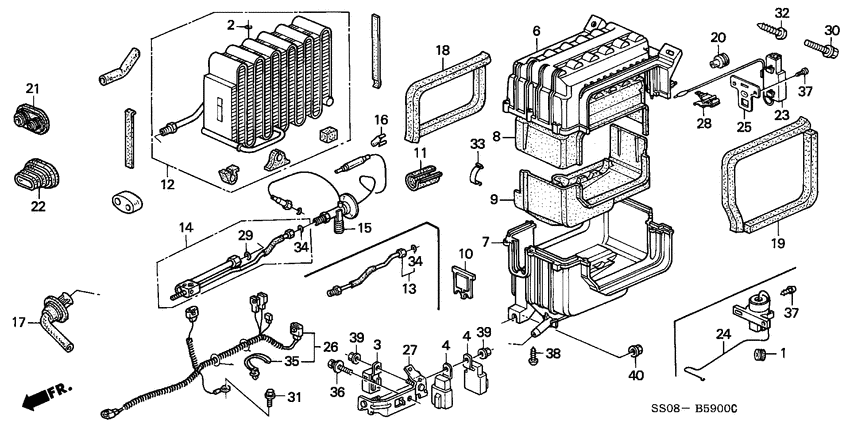

Air conditioner (COOLING UNIT; 1) Diagram Honda PRELUDE
- Year
- 1995
- Model code
- PRELUDE
- Sales region
- General
- Engine
- F22A
- transmission
- 4AT
- Number of doors
- 2
- grade
- SI
- area code
- KY
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
80872-SL0-900 O-ring1/2" |
80872-SL0-900 |
US $3.51 |
||
|
3
|
3
38725-SA5-003
Diode assy.
|
38725-SA5-003 |
— | ||
|
4
|
4
39795-SB2-003 Relay assyPOWER (4P) (MITSUBA) (RC-2201) |
39795-SB2-003 |
US $40.58 |
||
|
6
|
6
80201-SS0-A01
Case
|
80201-SS0-A01 |
— | ||
|
7
|
7
80202-SS0-A01
Case
|
80202-SS0-A01 |
— | ||
|
8
|
8
80205-SS0-A01
Insulator
|
80205-SS0-A01 |
— | ||
|
9
|
9
80206-SS0-A01
Insulator
|
80206-SS0-A01 |
— | ||
|
10
|
10
80208-SS0-000
Holder
|
80208-SS0-000 |
— | ||
|
11
|
11
80214-SL5-A01 InsulatorEXPANSION |
80214-SL5-A01 |
US $7.81 |
||
|
12
|
12
80215-SS0-H02
Evaporator comp.
|
80215-SS0-H02 |
— | ||
|
13
|
13
80216-SS0-H01
Pipe
|
80216-SS0-H01 |
— | ||
|
15
|
15
80220-SS0-H01
Valve assy.
|
80220-SS0-H01 |
— | ||
|
16
|
16
80225-SR3-000 Clamp |
80225-SR3-000 |
US $3.15 |
||
|
17
|
17
80275-SS0-000
Hose
|
80275-SS0-000 |
— | ||
|
18
|
18
80286-SS0-A00
Seal
|
80286-SS0-A00 |
— | ||
|
19
|
19
80287-SS0-A00
Seal
|
80287-SS0-A00 |
— | ||
|
20
|
20
80291-SR3-000 GrommetEVAPORATOR SENSOR |
80291-SR3-000 |
US $3.08 |
||
|
21
|
21
80380-SM4-G00
Grommet
|
80380-SM4-G00 |
— | ||
| replacement | |||||
|
21
|
21
80380-SF4-000
Grommet
|
80380-SF4-000 |
— | ||
|
23
|
23
80430-SS0-A01
Thermostat
|
80430-SS0-A01 |
— | ||
|
25
|
25
80431-SS0-A00
Bracket
|
80431-SS0-A00 |
— | ||
|
27
|
27
80491-SS0-020
Bracket
|
80491-SS0-020 |
— | ||
|
28
|
28
80566-SF1-941 ClipEVAPORATOR SENSOR |
80566-SF1-941 |
US $3.43 |
||
|
30
|
30
90137-SF1-000 Bolt-washer6X25 |
90137-SF1-000 |
US $2.12 |
||
|
32
|
32
90155-SE0-003 ScrewTAPPING, 6X20 |
90155-SE0-003 |
US $1.54 |
||
|
33
|
33
90659-692-000 ClampCASE |
90659-692-000 |
from US $2.10 |
||
|
34
|
34
80873-SL0-900 O-ring8MM |
80873-SL0-900 |
US $2.86 |
||
|
36
|
36
93403-060-160-5 Bolt-washer6X16 |
93403-060-160-5 |
US $0.59 |
||
|
37
|
37
93913-14220 ScrewTAPPING, 4X12 |
93913-14220 |
from US $0.37 |
||
|
38
|
38
93913-14420 ScrewTAPPING, 4X16(PO) |
93913-14420 |
from US $0.37 |
||
|
39
|
39
90308-SD2-A00 NutFLANGE, 6MM (DACRO COATING) |
90308-SD2-A00 |
US $4.45 |
||
|
40
|
40
90301-SP0-003 NutPAINT CUTTING, 6MM |
90301-SP0-003 |
US $2.59 |
||
