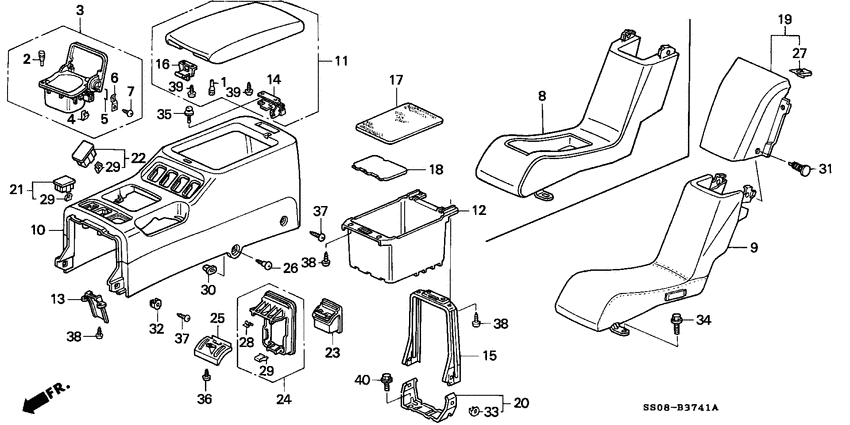

Console (2) Diagram Honda PRELUDE
- Year
- 1995
- Model code
- PRELUDE
- Sales region
- General
- Engine
- F22A
- transmission
- 4AT
- Number of doors
- 2
- grade
- SI
- area code
- KY
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
66418-SA5-000
Stopper
|
66418-SA5-000 |
— | ||
|
2
|
2
66418-688-000 StopperGLOVE BOX LID |
66418-688-000 |
from US $2.89 |
||
|
3
|
3
77230-SS0-A01ZC
Cup holder assy. *nh167l*
|
77230-SS0-A01ZC |
— | ||
|
4
|
4
77234-SV4-003 Clip |
77234-SV4-003 |
US $4.44 |
||
|
5
|
5
77237-SS0-003
Pin
|
77237-SS0-003 |
— | ||
|
6
|
6
77238-SS0-003
Plate
|
77238-SS0-003 |
— | ||
|
7
|
7
77239-SS0-003
Screw a
|
77239-SS0-003 |
— | ||
|
9
|
9
82170-SS0-J01ZA
Pad
|
82170-SS0-J01ZA |
— | ||
|
10
|
10
83401-SS0-A00ZB
Console
|
83401-SS0-A00ZB |
— | ||
|
11
|
11
83402-SS0-E00ZA
Armrest assy
|
83402-SS0-E00ZA |
— | ||
|
12
|
12
83403-SS0-J00
Box
|
83403-SS0-J00 |
— | ||
|
13
|
13
83404-SS0-J00
Guide
|
83404-SS0-J00 |
— | ||
|
14
|
14
83406-SR4-G00
Hinge comp
|
83406-SR4-G00 |
— | ||
|
15
|
15
83407-SS0-J00
Bracket
|
83407-SS0-J00 |
— | ||
|
16
|
16
83408-SS0-J00 LockARMREST |
83408-SS0-J00 |
US $3.99 |
||
|
17
|
17
83409-SS0-J00
Mat
|
83409-SS0-J00 |
— | ||
|
18
|
18
83411-SS0-J00
Lid
|
83411-SS0-J00 |
— | ||
|
19
|
19
83420-SS0-J00ZB
Garnish
|
83420-SS0-J00ZB |
— | ||
|
20
|
20
83425-SS0-J00
Bracket
|
83425-SS0-J00 |
— | ||
|
21
|
21
83442-SS0-J00ZB
Lid assy
|
83442-SS0-J00ZB |
— | ||
|
22
|
22
83442-SS0-000ZB
Lid assy
|
83442-SS0-000ZB |
— | ||
|
23
|
23
88320-SB3-950ZK
Ashtray assy.
|
88320-SB3-950ZK |
— | ||
|
24
|
24
88323-ST0-003ZC
Box
|
88323-ST0-003ZC |
— | ||
|
25
|
25
88324-SB3-950 CoverRR. ASHTRAY |
88324-SB3-950 |
US $4.06 |
||
|
26
|
26
90103-SS0-003
Screw
|
90103-SS0-003 |
— | ||
|
27
|
27
90611-SM4-013 ClipPILLAR GARNISH |
90611-SM4-013 |
US $1.61 |
||
|
28
|
28
90651-SM4-003
Grommet
|
90651-SM4-003 |
— | ||
|
29
|
29
90666-SD4-003 ClipFITTING |
90666-SD4-003 |
from US $1.92 |
||
|
30
|
30
90681-693-000 GrommetSCREW, 4MM |
90681-693-000 |
US $2.52 |
||
|
31
|
31
90691-SS0-003ZB
Clip
|
90691-SS0-003ZB |
— | ||
|
32
|
32
91640-SM4-003 GrommetSCREW, 4MM |
91640-SM4-003 |
US $1.95 |
||
|
33
|
33
91641-SM4-003 GrommetSCREW, 4MM |
91641-SM4-003 |
US $1.95 |
||
|
34
|
34
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
35
|
35
93891-040-121-7 Screw-washer4X12 |
93891-040-121-7 |
from US $0.44 |
||
| replacement | |||||
|
35
|
35
93891-040-120-7 Screw-washer4X12 |
93891-040-120-7 |
from US $0.44 |
||
|
36
|
36
93913-14280 ScrewTAPPING, 4X12 (PO) |
93913-14280 |
from US $0.37 |
||
|
37
|
37
93913-14480 ScrewTAPPING, 4X16 (PO) |
93913-14480 |
from US $0.37 |
||
|
38
|
38
93913-24180 ScrewTAPPING, 4X10 |
93913-24180 |
from US $0.41 |
||
|
39
|
39
93913-24280 ScrewTAPPING, 4X12(PO) |
93913-24280 |
from US $0.37 |
||
|
40
|
40
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
