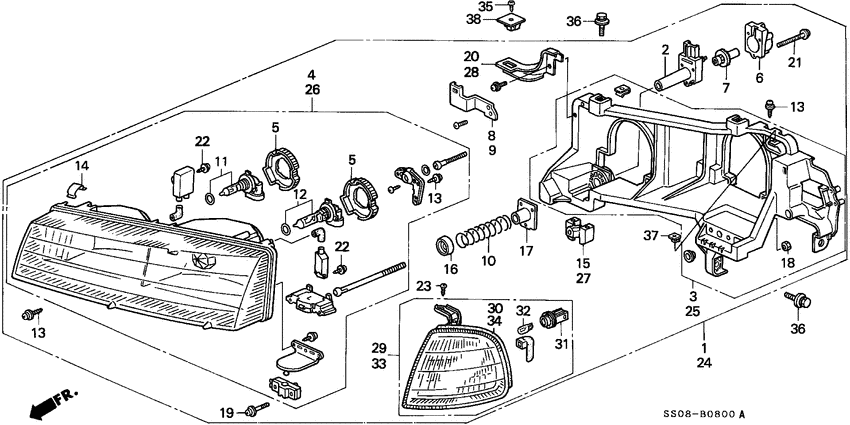

Headlight (1) Diagram Honda PRELUDE
- Year
- 1995
- Model code
- PRELUDE
- Sales region
- General
- Engine
- F22A
- transmission
- 4AT
- Number of doors
- 2
- grade
- SI
- area code
- KY
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33100-SS0-A04
Headlight assy
|
33100-SS0-A04 |
— | ||
|
2
|
2
33101-SM4-A01
Holder c
|
33101-SM4-A01 |
— | ||
|
3
|
3
33102-SS0-A01
Housing comp
|
33102-SS0-A01 |
— | ||
|
4
|
4
33103-SS0-A01
Headlight unit
|
33103-SS0-A01 |
— | ||
|
5
|
5
33104-SH3-A02
Holder
|
33104-SH3-A02 |
— | ||
|
6
|
6
33109-SM4-A01
Holder b
|
33109-SM4-A01 |
— | ||
|
7
|
7
33111-SM4-A01
Nut c
|
33111-SM4-A01 |
— | ||
|
8
|
8
33112-SS0-A01
Bracket c
|
33112-SS0-A01 |
— | ||
|
9
|
9
33113-SS0-A01
Bracket c
|
33113-SS0-A01 |
— | ||
|
10
|
10
33114-SM4-A01
Spring
|
33114-SM4-A01 |
— | ||
|
11
|
11
33115-SH3-A01 BulbHEADLIGHT (HB3) (12V 60W) (STANLEY) |
33115-SH3-A01 |
US $19.20 |
||
|
11
|
11
33115-SV4-A01 BulbHEADLIGHT (HB3) (12V 60W) (SYLVANIA) |
33115-SV4-A01 |
US $19.20 |
||
|
12
|
12
33116-SH3-A01 BulbHEADLIGHT (HB4) (12V 51W) (STANLEY) |
33116-SH3-A01 |
US $19.20 |
||
|
12
|
12
33116-SV4-A01 BulbHEADLIGHT (HB4) (12V 51W) (SYLVANIA) |
33116-SV4-A01 |
US $19.20 |
||
|
13
|
13
33116-SM4-A01
Screw
|
33116-SM4-A01 |
— | ||
|
14
|
14
33117-SM4-A01
Clip
|
33117-SM4-A01 |
— | ||
|
15
|
15
33119-SS0-A01
Nut d
|
33119-SS0-A01 |
— | ||
|
16
|
16
33123-SM4-A01
Holder e
|
33123-SM4-A01 |
— | ||
|
17
|
17
33124-SM4-A01
Bracket
|
33124-SM4-A01 |
— | ||
|
18
|
18
33125-SM4-A01
Nut
|
33125-SM4-A01 |
— | ||
|
19
|
19
33126-SM4-A01
Screw
|
33126-SM4-A01 |
— | ||
|
20
|
20
33126-SS0-A01
Bracket b
|
33126-SS0-A01 |
— | ||
|
21
|
21
33127-SM4-A01
Screw
|
33127-SM4-A01 |
— | ||
|
22
|
22
33128-SM4-A01
Screw
|
33128-SM4-A01 |
— | ||
|
23
|
23
33128-SS0-A01
Screw
|
33128-SS0-A01 |
— | ||
|
24
|
24
33150-SS0-A04
Headlight assy
|
33150-SS0-A04 |
— | ||
|
25
|
25
33152-SS0-A01
Housing comp
|
33152-SS0-A01 |
— | ||
|
26
|
26
33153-SS0-A01
Headlight unit
|
33153-SS0-A01 |
— | ||
|
27
|
27
33169-SS0-A01
Nut d
|
33169-SS0-A01 |
— | ||
|
28
|
28
33176-SS0-A01
Bracket b
|
33176-SS0-A01 |
— | ||
|
29
|
29
34300-SS0-A02
Light assy
|
34300-SS0-A02 |
— | ||
|
30
|
30
34301-SS0-A02
Lamp unit
|
34301-SS0-A02 |
— | ||
|
31
|
31
34304-SH3-A01
Socket comp.
|
34304-SH3-A01 |
— | ||
|
32
|
32
34351-657-921 Bulb12V/5W) (STANLEY |
34351-657-921 |
from US $1.63 |
||
|
33
|
33
34350-SS0-A02
Light assy
|
34350-SS0-A02 |
— | ||
|
34
|
34
34351-SS0-A02
Lamp unit
|
34351-SS0-A02 |
— | ||
|
35
|
35
90105-SA4-000
Screw
|
90105-SA4-000 |
— | ||
|
36
|
36
90146-SA7-000
Bolt-washer
|
90146-SA7-000 |
— | ||
| replacement | |||||
|
36
|
36
93405-060-160-4 Bolt-washer6X16 |
93405-060-160-4 |
from US $0.59 |
||
|
37
|
37
90302-SS0-003
Nut a
|
90302-SS0-003 |
— | ||
|
38
|
38
91635-SM4-003 GrommetSCREW, 5MM (BLACK) |
91635-SM4-003 |
US $1.96 |
||
