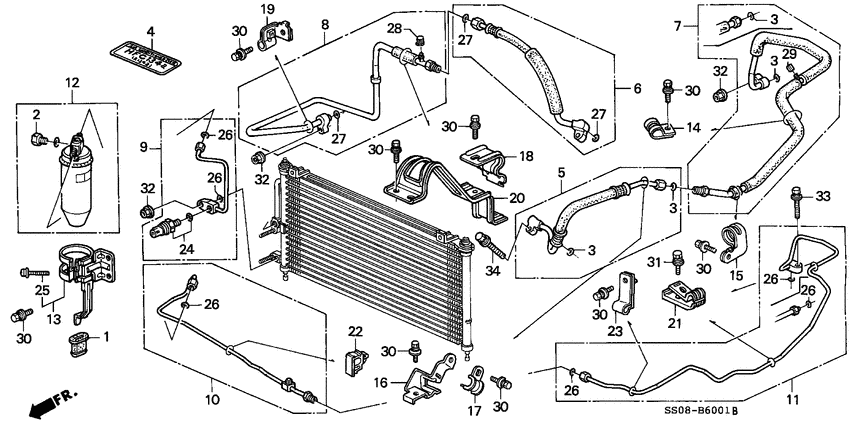

Air conditioner (HOSES/PIPES; RH) Diagram Honda PRELUDE
- Year
- 1993
- Model code
- PRELUDE
- Sales region
- General
- Engine
- F22A
- transmission
- 5MT
- Number of doors
- 2
- grade
- CX
- area code
- KQ
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38601-SA7-000
Rubber
|
38601-SA7-000 |
— | ||
|
2
|
2
38642-692-013
Plug
|
38642-692-013 |
— | ||
|
3
|
3
80871-SL0-900 O-ring5/8" |
80871-SL0-900 |
US $3.51 |
||
|
5
|
5
80310-SS0-020
Hose comp.
|
80310-SS0-020 |
— | ||
|
6
|
6
80315-SS0-A01
Hose comp.
|
80315-SS0-A01 |
— | ||
|
7
|
7
80321-SS0-003
Pipe
|
80321-SS0-003 |
— | ||
|
8
|
8
80325-SS0-003
Pipe
|
80325-SS0-003 |
— | ||
|
9
|
9
80331-SS0-010 PipeCONDENSER (SAK) |
80331-SS0-010 |
US $74.88 |
||
|
10
|
10
80341-SS0-003
Pipe a
|
80341-SS0-003 |
— | ||
|
11
|
11
80342-SS0-003
Pipe b
|
80342-SS0-003 |
— | ||
|
12
|
12
80351-SS0-003 Receiver compSAK |
80351-SS0-003 |
US $153.60 |
||
|
13
|
13
80352-SS0-010
Bracket
|
80352-SS0-010 |
— | ||
|
14
|
14
80361-SS0-000
Clamp a
|
80361-SS0-000 |
— | ||
|
15
|
15
80362-SS0-000
Clamp b
|
80362-SS0-000 |
— | ||
|
16
|
16
80367-SS0-010
Clamp b
|
80367-SS0-010 |
— | ||
|
17
|
17
80368-SS0-010
Holder
|
80368-SS0-010 |
— | ||
|
18
|
18
80369-SS0-000
Stay
|
80369-SS0-000 |
— | ||
|
19
|
19
80372-SS0-000
Clamp b
|
80372-SS0-000 |
— | ||
|
20
|
20
80378-SS0-000
Bracket
|
80378-SS0-000 |
— | ||
|
21
|
21
80381-SL0-A01 ClampRECEIVER PIPE |
80381-SL0-A01 |
US $3.99 |
||
|
22
|
22
80381-SS0-003 Clamp aRECEIVER PIPE |
80381-SS0-003 |
US $2.45 |
||
|
23
|
23
80383-SS0-000
Clamp c
|
80383-SS0-000 |
— | ||
|
24
|
24
80440-SM4-003 SwitchDUAL PRESSURE (FUJI) |
80440-SM4-003 |
US $45.70 |
||
|
25
|
25
90199-SM4-000
Screw-washer
|
90199-SM4-000 |
— | ||
|
26
|
26
80873-SL0-900 O-ring8MM |
80873-SL0-900 |
US $2.86 |
||
|
27
|
27
80872-SL0-900 O-ring1/2" |
80872-SL0-900 |
US $3.51 |
||
|
28
|
28
91638-SF1-013
Cap
|
91638-SF1-013 |
— | ||
|
29
|
29
91639-SF1-013
Cap
|
91639-SF1-013 |
— | ||
|
30
|
30
93403-060-160-5 Bolt-washer6X16 |
93403-060-160-5 |
US $0.59 |
||
|
31
|
31
93405-060-160-5 Bolt-washer6X16 |
93405-060-160-5 |
US $0.59 |
||
|
32
|
32
90308-SD2-A00 NutFLANGE, 6MM (DACRO COATING) 0C101241 - |
90308-SD2-A00 |
US $4.45 |
||
|
32
|
32
94050-06050 NutFLANGE, 6MM 00000000 - 0C101240 |
94050-06050 |
US $0.52 |
||
|
34
|
34
95701-080-300-8 BoltFLANGE, 8X30 |
95701-080-300-8 |
from US $0.74 |
