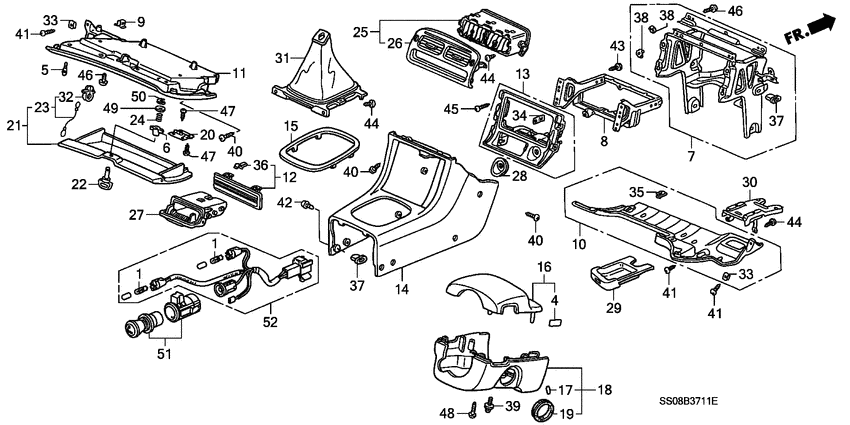

Instrument panel garnish (RH) Diagram Honda PRELUDE
- Year
- 1993
- Model code
- PRELUDE
- Sales region
- General
- Engine
- F22A
- transmission
- 5MT
- Number of doors
- 2
- grade
- CX
- area code
- KQ
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35505-692-003 Bulb14V 1.4W |
35505-692-003 |
from US $2.07 |
||
|
5
|
5
66418-SB2-000
Stopper
|
66418-SB2-000 |
— | ||
|
6
|
6
66856-SA0-660
Lock
|
66856-SA0-660 |
— | ||
|
7
|
7
77160-SS0-000
Frame comp
|
77160-SS0-000 |
— | ||
|
8
|
8
77165-SS0-000 BracketRADIO |
77165-SS0-000 |
US $22.91 |
||
|
9
|
9
77202-SJ5-000 ClipINSTRUMENT PANEL FACE |
77202-SJ5-000 |
US $5.37 |
||
|
10
|
10
77212-SS0-000ZA
Cover
|
77212-SS0-000ZA |
— | ||
|
11
|
11
77215-SS0-010ZA
Cover
0C101336 - |
77215-SS0-010ZA |
— | ||
|
11
|
11
77215-SS0-000ZA
Cover
00000000 - 0C101335 |
77215-SS0-000ZA |
— | ||
|
12
|
12
77230-SM4-G00 Lid assyAUDIO HOLE |
77230-SM4-G00 |
US $33.32 |
||
|
13
|
13
77233-SS0-010ZA
Panel
|
77233-SS0-010ZA |
— | ||
|
14
|
14
77291-SS0-010ZA ConsoleFR. *NH1L* |
77291-SS0-010ZA |
US $76.80 |
||
|
16
|
16
77350-SS0-E02ZA
Cover assy.
|
77350-SS0-E02ZA |
— | ||
|
17
|
17
77355-SG0-A00
Label
|
77355-SG0-A00 |
— | ||
|
18
|
18
77360-SS0-013ZA
Cover assy.
|
77360-SS0-013ZA |
— | ||
|
19
|
19
77371-SM4-000
Ring
|
77371-SM4-000 |
— | ||
|
20
|
20
77510-SS0-000
Hinge
|
77510-SS0-000 |
— | ||
|
21
|
21
77511-SS0-000ZA
Lid comp
|
77511-SS0-000ZA |
— | ||
|
22
|
22
77512-SS0-000
Knob
|
77512-SS0-000 |
— | ||
|
23
|
23
77513-SS0-000
Strap
|
77513-SS0-000 |
— | ||
|
24
|
24
77515-SS0-000
Spring
|
77515-SS0-000 |
— | ||
|
25
|
25
77600-SS0-003ZA
Outlet assy
|
77600-SS0-003ZA |
— | ||
|
26
|
26
04776-SS0-000ZA
Panel sub assy.
|
04776-SS0-000ZA |
— | ||
|
27
|
27
77710-SS0-013ZA
Ashtray assy.
|
77710-SS0-013ZA |
— | ||
|
28
|
28
77721-SS0-003ZA
Protector
|
77721-SS0-003ZA |
— | ||
|
29
|
29
77750-SS0-000ZA
Pocket assy
|
77750-SS0-000ZA |
— | ||
|
30
|
30
77754-SS0-A00
Holder
|
77754-SS0-A00 |
— | ||
|
31
|
31
83414-SS0-010ZA
Boot
|
83414-SS0-010ZA |
— | ||
|
32
|
32
90135-SG0-A01
Clamp
|
90135-SG0-A01 |
— | ||
|
33
|
33
90302-SA4-003 NutSPRING, 4MM |
90302-SA4-003 |
from US $2.59 |
||
|
34
|
34
90606-SS0-000
Spring
|
90606-SS0-000 |
— | ||
|
35
|
35
90609-SG0-003 ClipPILLAR GARNISH |
90609-SG0-003 |
US $4.40 |
||
|
36
|
36
90650-SE3-000 ClipRADIO PANEL |
90650-SE3-000 |
US $1.68 |
||
|
37
|
37
90681-693-000 GrommetSCREW, 4MM |
90681-693-000 |
US $2.52 |
||
|
38
|
38
91641-SM4-003 GrommetSCREW, 4MM |
91641-SM4-003 |
US $1.95 |
||
|
39
|
39
93891-050-120-8 Screw-washer5X12 |
93891-050-120-8 |
from US $0.44 |
||
|
40
|
40
93903-14480 ScrewTAPPING, 4X16 |
93903-14480 |
US $0.37 |
||
|
41
|
41
93903-14580 ScrewTAPPING, 4X20 |
93903-14580 |
from US $0.37 |
||
|
42
|
42
93903-14480 ScrewTAPPING, 4X16 |
93903-14480 |
US $0.37 |
||
|
43
|
43
93903-44380 ScrewTAPPING, 4X12 |
93903-44380 |
from US $0.41 |
||
|
44
|
44
93913-14280 ScrewTAPPING, 4X12 (PO) |
93913-14280 |
from US $0.37 |
||
|
45
|
45
93903-14480 ScrewTAPPING, 4X16 |
93903-14480 |
US $0.37 |
||
|
46
|
46
93913-14480 ScrewTAPPING, 4X16 (PO) |
93913-14480 |
from US $0.37 |
||
|
47
|
47
93913-24180 ScrewTAPPING, 4X10 |
93913-24180 |
from US $0.41 |
||
|
48
|
48
93913-24420 ScrewTAPPING, 4X16(PO) |
93913-24420 |
from US $0.37 |
||
|
49
|
49
94101-06700 WasherPLAIN, 6MM |
94101-06700 |
from US $0.37 |
||
|
50
|
50
94540-04017 E-ring4MM |
94540-04017 |
from US $1.33 |
||
|
51
|
51
39600-SW3-305
Lighter unit
|
39600-SW3-305 |
— | ||
| replacement | |||||
|
51
|
51
39600-SW3-505 LIGHTER ASSYCIGA |
39600-SW3-505 |
US $21.62 |
||
|
52
|
52
39628-SM4-307
Cord assy
|
39628-SM4-307 |
— | ||
