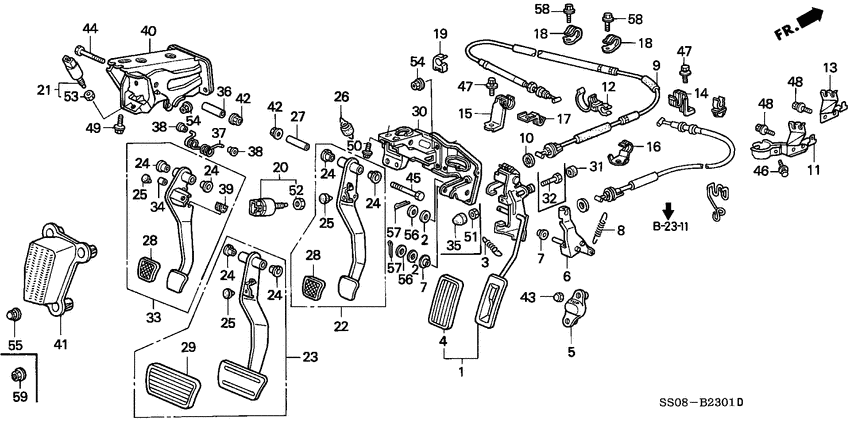

Pedal (RH) Diagram Honda PRELUDE
- Year
- 1993
- Model code
- PRELUDE
- Sales region
- General
- Engine
- F22A
- transmission
- 5MT
- Number of doors
- 2
- grade
- CX
- area code
- KQ
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17800-SS0-000
Pedal comp
|
17800-SS0-000 |
— | ||
|
2
|
2
17812-SA7-010 WasherACCELERATOR PEDAL |
17812-SA7-010 |
from US $2 |
||
|
3
|
3
17814-SS0-980
Spring
|
17814-SS0-980 |
— | ||
|
4
|
4
17816-SF1-000
Cover
|
17816-SF1-000 |
— | ||
|
5
|
5
17818-SS0-000
Stopper
|
17818-SS0-000 |
— | ||
|
6
|
6
17856-SS0-000
Arm
|
17856-SS0-000 |
— | ||
|
7
|
7
17858-SM4-000 BushCENTER |
17858-SM4-000 |
US $3.91 |
||
|
8
|
8
17863-SS0-000
Spring
|
17863-SS0-000 |
— | ||
|
9
|
9
17910-SS0-E12
Wire
|
17910-SS0-E12 |
— | ||
|
10
|
10
17921-SA4-730 SealTHROTTLE CABLE |
17921-SA4-730 |
US $5.86 |
||
|
11
|
11
17925-SS0-000
Stay comp
|
17925-SS0-000 |
— | ||
|
12
|
12
17926-SM4-940 ClipTHROTTLE WIRE |
17926-SM4-940 |
US $2.80 |
||
|
13
|
13
17926-SS0-940
Stay
|
17926-SS0-940 |
— | ||
|
14
|
14
17931-SM4-A00
Stay
|
17931-SM4-A00 |
— | ||
|
16
|
16
17932-SM4-G00
Clamp
|
17932-SM4-G00 |
— | ||
|
17
|
17
17932-SM4-010 ClampTHROTTLE WIRE |
17932-SM4-010 |
US $4.34 |
||
|
20
|
20
36750-SE0-013
Switch assy
|
36750-SE0-013 |
— | ||
|
21
|
21
36760-SM4-003 Switch assyCLUTCH |
36760-SM4-003 |
from US $14.36 |
||
|
22
|
22
46500-SS0-000
Pedal comp
|
46500-SS0-000 |
— | ||
|
24
|
24
46504-ST5-300 BushPEDAL |
46504-ST5-300 |
US $3.70 |
||
|
25
|
25
46505-SA5-000 PadPEDAL STOPPER |
46505-SA5-000 |
from US $2.59 |
||
|
26
|
26
46530-SM4-000
Spring assy
|
46530-SM4-000 |
— | ||
|
27
|
27
46535-SM4-000 CollarPEDAL |
46535-SM4-000 |
US $5.18 |
||
|
28
|
28
46545-SA5-000 Cover, Pedal |
46545-SA5-000 |
from US $5.03 |
||
|
30
|
30
46590-SS0-000
Bracket
|
46590-SS0-000 |
— | ||
|
31
|
31
46904-SM4-300 PadACCELERATOR STOPPER |
46904-SM4-300 |
US $3.08 |
||
|
32
|
32
46905-SM4-300 BoltACCELERATOR STOPPER |
46905-SM4-300 |
US $1.82 |
||
|
33
|
33
46910-SS0-000
Pedal comp
|
46910-SS0-000 |
— | ||
|
34
|
34
46911-SD4-930 BushPEDAL PIN |
46911-SD4-930 |
from US $2.12 |
||
|
35
|
35
46914-SM4-300 CapACCELERATOR |
46914-SM4-300 |
US $2.17 |
||
|
36
|
36
46936-SM4-000
Collar
|
46936-SM4-000 |
— | ||
|
37
|
37
46980-SD4-930
Spring
|
46980-SD4-930 |
— | ||
|
38
|
38
46981-SD4-930 Bush aCLUTCH ASSISTANT |
46981-SD4-930 |
US $2.45 |
||
|
39
|
39
46982-SD4-930 Bush bCLUTCH ASSISTANT |
46982-SD4-930 |
US $3.74 |
||
|
40
|
40
46990-SM4-940
Bracket
|
46990-SM4-940 |
— | ||
|
41
|
41
46991-SS0-000 BracketFOOTREST |
46991-SS0-000 |
US $17.79 |
||
|
42
|
42
90212-671-005 NutSELF-LOCK, 10MM |
90212-671-005 |
US $1.22 |
||
|
43
|
43
90382-SM4-000 NutHEX. CAP, 6MM |
90382-SM4-000 |
US $2.09 |
||
|
44
|
44
92201-10065-0J BoltHEX., 10X65 |
92201-10065-0J |
US $1.04 |
||
|
45
|
45
92201-10070-0J BoltHEX., 10X70 |
92201-10070-0J |
US $1.04 |
||
|
46
|
46
93402-060-120-8 Bolt-washer6X12 |
93402-060-120-8 |
from US $0.52 |
||
|
47
|
47
93402-060-140-8 Bolt-washer6X14 |
93402-060-140-8 |
from US $0.52 |
||
|
48
|
48
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.62 |
||
|
49
|
49
93403-080-160-8 Bolt-washer8X16 |
93403-080-160-8 |
from US $0.74 |
||
|
50
|
50
93405-080-200-8 Bolt-washer8X20 |
93405-080-200-8 |
from US $0.74 |
||
|
51
|
51
94001-060-800-S NutHEX., 6MM |
94001-060-800-S |
from US $0.44 |
||
|
52
|
52
94001-100-800-S NutHEX., 10MM |
94001-100-800-S |
from US $0.52 |
||
|
53
|
53
94002-120-800-S NutHEX., 12MM |
94002-120-800-S |
from US $0.59 |
||
|
54
|
54
94070-08080 Nut-washer8MM |
94070-08080 |
from US $0.52 |
||
|
55
|
55
90382-SM4-000 NutHEX. CAP, 6MM |
90382-SM4-000 |
US $2.09 |
||
|
56
|
56
94102-10800 WasherPLAIN, 10MM |
94102-10800 |
from US $0.44 |
||
|
57
|
57
94201-25180 PinSPLIT, 2.5X18 |
94201-25180 |
from US $0.37 |
