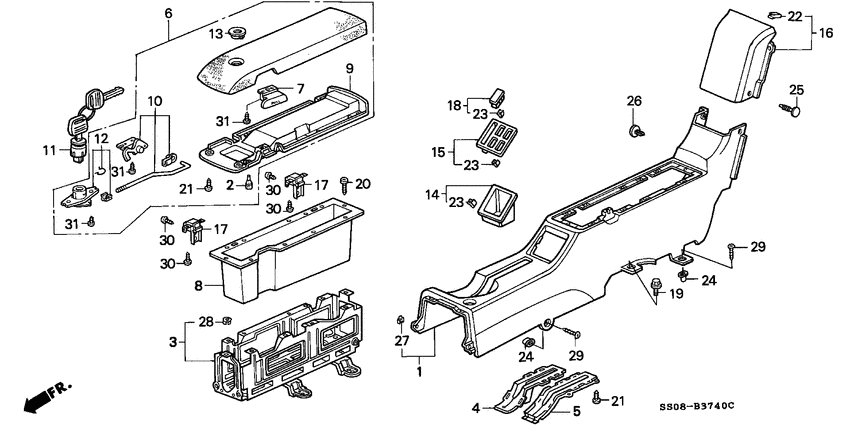

Console (1) Diagram Honda PRELUDE
- Year
- 1993
- Model code
- PRELUDE
- Sales region
- General
- Engine
- F22A
- transmission
- 4AT
- Number of doors
- 2
- grade
- CX
- area code
- KQ
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
04773-SS0-A00ZB ConsoleCENTER *NH167L* |
04773-SS0-A00ZB |
US $122.88 |
||
|
2
|
2
66418-SA5-000
Stopper
|
66418-SA5-000 |
— | ||
|
3
|
3
77180-SS0-000ZZ
Frame
|
77180-SS0-000ZZ |
— | ||
|
4
|
4
77303-SS0-000
Cover
|
77303-SS0-000 |
— | ||
|
5
|
5
77304-SS0-000
Plate
|
77304-SS0-000 |
— | ||
|
6
|
6
77305-SS0-A21ZB
Armrest comp.
|
77305-SS0-A21ZB |
— | ||
|
7
|
7
77306-SS0-003ZD
Knob
|
77306-SS0-003ZD |
— | ||
|
8
|
8
77310-SS0-A00ZA
Pocket assy
|
77310-SS0-A00ZA |
— | ||
|
9
|
9
77316-SS0-A00
Base b
|
77316-SS0-A00 |
— | ||
|
10
|
10
77320-SS0-A01
Lock assy
|
77320-SS0-A01 |
— | ||
|
11
|
11
77321-SS0-A01
Cylinder
|
77321-SS0-A01 |
— | ||
|
12
|
12
77322-SS0-A01
Base
|
77322-SS0-A01 |
— | ||
|
13
|
13
77325-SS0-A01ZB
Cap
|
77325-SS0-A01ZB |
— | ||
|
15
|
15
77330-SS0-003ZB
Lid
|
77330-SS0-003ZB |
— | ||
|
16
|
16
83420-SS0-J00ZB
Garnish
|
83420-SS0-J00ZB |
— | ||
|
17
|
17
83426-SP0-013
Hinge assy
|
83426-SP0-013 |
— | ||
|
18
|
18
83442-SS0-000ZB
Lid assy
|
83442-SS0-000ZB |
— | ||
|
19
|
19
90125-SS0-003
Bolt
|
90125-SS0-003 |
— | ||
|
20
|
20
90144-SP0-000 ScrewTAPPING, 4X16 (PO) |
90144-SP0-000 |
US $0.98 |
||
|
21
|
21
90146-SP0-000 ScrewTAPPING, 4X12 (PO) |
90146-SP0-000 |
US $0.98 |
||
|
22
|
22
90611-SM4-013 ClipPILLAR GARNISH |
90611-SM4-013 |
US $1.61 |
||
|
23
|
23
90666-SD4-003 ClipFITTING |
90666-SD4-003 |
from US $1.92 |
||
|
24
|
24
90681-693-000 GrommetSCREW, 4MM |
90681-693-000 |
US $2.52 |
||
|
25
|
25
90691-SS0-003ZB
Clip
|
90691-SS0-003ZB |
— | ||
|
26
|
26
91564-SH3-003ZJ ClipTRIM, 5MM *NH167L* |
91564-SH3-003ZJ |
US $1.54 |
||
|
27
|
27
91640-SM4-003 GrommetSCREW, 4MM |
91640-SM4-003 |
US $1.95 |
||
|
28
|
28
91641-SM4-003 GrommetSCREW, 4MM |
91641-SM4-003 |
US $1.95 |
||
|
29
|
29
90103-SS0-003
Screw
|
90103-SS0-003 |
— | ||
|
30
|
30
93913-14280 ScrewTAPPING, 4X12 (PO) |
93913-14280 |
from US $0.37 |
||
|
31
|
31
93913-24280 ScrewTAPPING, 4X12(PO) |
93913-24280 |
from US $0.37 |
