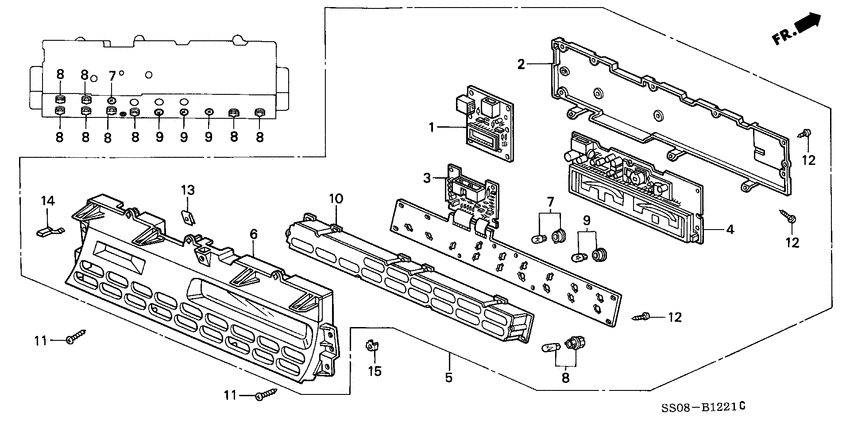

Meter sub display (RH) Diagram Honda PRELUDE
- Year
- 1993
- Model code
- PRELUDE
- Sales region
- General
- Engine
- F22A
- transmission
- 4AT
- Number of doors
- 2
- grade
- SI
- area code
- KT
- right-hand drive
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
39701-SS0-003
Flt & circuit assy.
|
39701-SS0-003 |
— | ||
|
2
|
2
78116-SS0-003
Cover
|
78116-SS0-003 |
— | ||
|
3
|
3
78145-SS0-T11
Panel
|
78145-SS0-T11 |
— | ||
|
4
|
4
78145-SS0-003
Flt & circuit assy.
|
78145-SS0-003 |
— | ||
|
5
|
5
78150-SS0-T21 Meter assySUB DISPLAY |
78150-SS0-T21 |
US $907.52 |
||
|
6
|
6
78166-SS0-003
Case assy.
|
78166-SS0-003 |
— | ||
|
7
|
7
78180-SS0-J01
Socket assy
|
78180-SS0-J01 |
— | ||
|
8
|
8
78180-SS0-003
Socket assy
|
78180-SS0-003 |
— | ||
|
9
|
9
78180-SS0-901
Socket assy
|
78180-SS0-901 |
— | ||
|
10
|
10
78230-SS0-Q01 Box assyPILOT |
78230-SS0-Q01 |
US $33.02 |
||
|
11
|
11
90102-SA4-000 ScrewTAPPING, 4X16 |
90102-SA4-000 |
US $0.80 |
||
| replacement | |||||
|
11
|
11
93913-14480 ScrewTAPPING, 4X16 (PO) |
93913-14480 |
from US $0.37 |
||
|
12
|
12
90102-SS0-003 ScrewTAPPING, 3X14 |
90102-SS0-003 |
US $1.54 |
||
|
13
|
13
90302-SA4-003 NutSPRING, 4MM |
90302-SA4-003 |
from US $2.59 |
||
|
14
|
14
90601-SS0-003
Clip
|
90601-SS0-003 |
— | ||
|
15
|
15
91640-SM4-003 GrommetSCREW, 4MM |
91640-SM4-003 |
US $1.95 |
||
