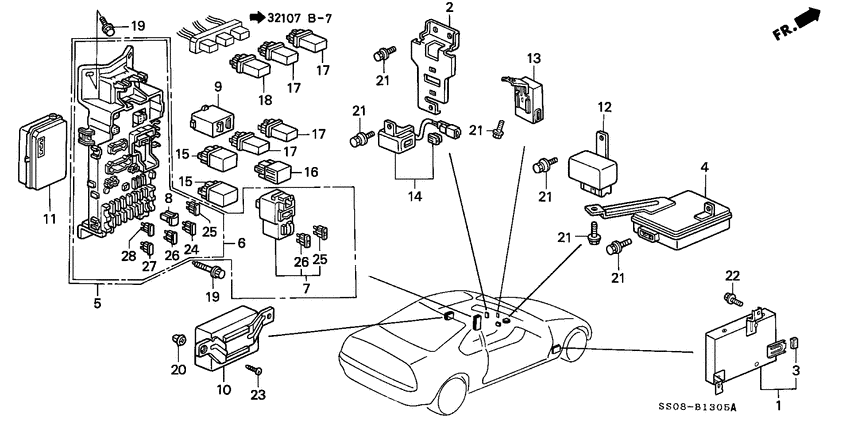

Control unit (CABIN; LH) Diagram Honda PRELUDE

Year
1993
Model code
PRELUDE
Sales region
General
Engine
F22A
transmission
5MT
Number of doors
2
grade
SI
area code
KY
left-hand drive
+

Difficulties in parts search?

Parts list
Control unit

Difficulties in parts search?

Control unit
Description OEM Part # Price
4
4
36700-SS0-G13
Controller

36700-SS0-G13

6
6
38200-SS0-Y01
Box assy

38200-SS0-Y01

8
8

38235-SA5-003

Puller

FUSE (SUMITOMO)

38235-SA5-003

US $2.52

9
9

38300-SB0-004

Relay assy

TURN SIGNAL & HAZARD (DENSO)

38300-SB0-004

US $80.64

9
9

38300-SB0-013

Relay assy

TURN SIGNAL & HAZARD (MITSUBA)

38300-SB0-013

US $74.88

10
10
38380-SS0-A01
Control unit

38380-SS0-A01

11
11
38600-SS0-003
Control unit

38600-SS0-003

12
12
39400-SS0-003
Relay assy

39400-SS0-003

15
15
39762-SB0-004
Relay assy

39762-SB0-004

15
15

39762-SB0-003

Relay assy

POWER (5P) (MITSUBA)

39762-SB0-003

US $32.64

16
16

39792-SM4-003

Relay assy

POWER (4P NO.305) (DENSO) (056700-9340)

39792-SM4-003

US $35.20

16
16

39792-SM4-004

Relay assy

POWER (4P) (OMRON) (G4R-1A21T-49H)

39792-SM4-004

US $34.18

17
17

39794-SL0-004

Relay assy

POWER(4P) (MITSUBA)(RC-2225)(BLACK)

39794-SL0-004

US $16.51

17
17

39794-SE0-003

Relay assy

POWER(4P)(DENSO) (056700-7250)

39794-SE0-003

US $18.43

19
19

90137-SF1-000

Bolt-washer

6X25

90137-SF1-000

US $2.12

20
20

90662-693-003

Grommet

SCREW, 4MM (BLUE)

90662-693-003

US $1.68

21
21

93405-060-120-8

Bolt-washer

6X12

93405-060-120-8

from US $0.59

23
23

93903-45280

Screw

TAPPING, 5X12

93903-45280

from US $0.37

24
24

98200-30750

Fuse

BLADE(7.5A)

98200-30750

from US $0.55

25
25

98200-31000

Fuse

BLADE (10A)

98200-31000

from US $0.52

26
26

98200-31500

Fuse

BLADE (15A)

98200-31500

from US $0.52

27
27

98200-32000

Fuse

BLADE (20A)

98200-32000

from US $0.52

28
28

98200-33000

Fuse

BLADE(30A)

98200-33000

from US $0.74
