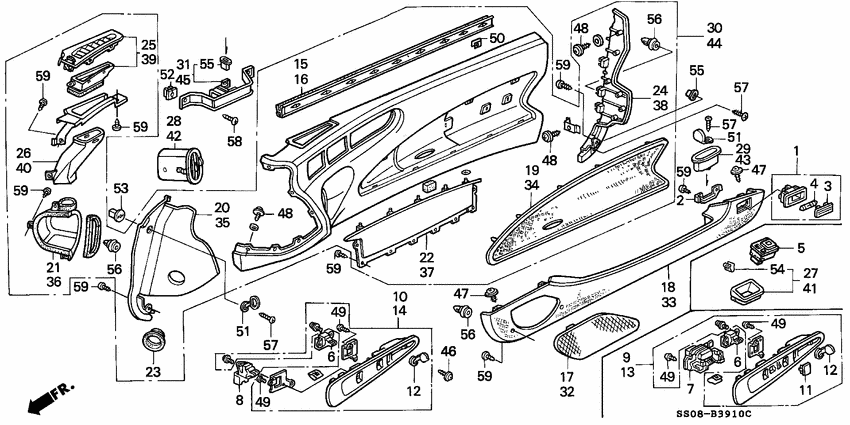

Front door lining Diagram Honda PRELUDE
- Year
- 1993
- Model code
- PRELUDE
- Sales region
- General
- Engine
- F22A
- transmission
- 5MT
- Number of doors
- 2
- grade
- SI
- area code
- KY
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34255-SM4-G01ZA Light assyCOURTESY (DAIICHI) *NH167L* |
34255-SM4-G01ZA |
US $27.26 |
||
|
2
|
2
34257-SM4-000 PlateCOURTESY LIGHT |
34257-SM4-000 |
US $4.90 |
||
|
3
|
3
34261-SM4-G01 LensDAIICHI |
34261-SM4-G01 |
US $7.70 |
||
|
4
|
4
34295-SA5-003 Bulb12V 3.4W) (DAIICHI |
34295-SA5-003 |
from US $1.85 |
||
|
5
|
5
35190-SM4-A11
Switch assy
|
35190-SM4-A11 |
— | ||
|
6
|
6
35380-SM4-003ZA
Switch assy
|
35380-SM4-003ZA |
— | ||
|
7
|
7
35750-SS0-X01
Switch assy
|
35750-SS0-X01 |
— | ||
|
8
|
8
35760-SS0-003
Switch assy
|
35760-SS0-003 |
— | ||
|
10
|
10
72124-SS0-307ZA Case setR. FR. INSIDE *NH1L* |
72124-SS0-307ZA |
US $65.92 |
||
|
12
|
12
72127-SS0-003
Cap
|
72127-SS0-003 |
— | ||
|
13
|
13
72164-SS0-305ZA Case setL. FR. INSIDE *NH1L* |
72164-SS0-305ZA |
US $65.92 |
||
|
15
|
15
72335-SS0-003
Weatherstrip
|
72335-SS0-003 |
— | ||
|
16
|
16
72375-SS0-003
Weatherstrip
|
72375-SS0-003 |
— | ||
|
17
|
17
83503-SS0-000ZC
Lid
|
83503-SS0-000ZC |
— | ||
|
18
|
18
83504-SS0-Q50ZA
Pocket
|
83504-SS0-Q50ZA |
— | ||
|
19
|
19
83505-SS0-406ZA
Pad
|
83505-SS0-406ZA |
— | ||
|
20
|
20
83505-SS0-000ZB
Panel
|
83505-SS0-000ZB |
— | ||
|
21
|
21
83506-SS0-000
Duct
|
83506-SS0-000 |
— | ||
|
22
|
22
83507-SS0-000ZB
Cover
|
83507-SS0-000ZB |
— | ||
|
23
|
23
83508-SS0-000
Seal
|
83508-SS0-000 |
— | ||
|
24
|
24
83509-SS0-000ZB
Panel
|
83509-SS0-000ZB |
— | ||
|
25
|
25
83510-SS0-003ZB
Garnish
|
83510-SS0-003ZB |
— | ||
|
26
|
26
83511-SS0-000
Duct
|
83511-SS0-000 |
— | ||
|
28
|
28
83520-SS0-003ZA Outlet assyR. DOOR *NH1L* |
83520-SS0-003ZA |
US $51.07 |
||
|
29
|
29
83530-SS0-900ZB
Pocket
|
83530-SS0-900ZB |
— | ||
|
30
|
30
83533-SS0-A50ZB
Lining sub assy.
|
83533-SS0-A50ZB |
— | ||
|
31
|
31
83536-SS0-900ZZ
Bracket
|
83536-SS0-900ZZ |
— | ||
|
32
|
32
83553-SS0-000ZC
Lid
|
83553-SS0-000ZC |
— | ||
|
33
|
33
83554-SS0-Q50ZA
Pocket
|
83554-SS0-Q50ZA |
— | ||
|
34
|
34
83555-SS0-406ZA
Pad
|
83555-SS0-406ZA |
— | ||
|
35
|
35
83555-SS0-000ZB
Panel
|
83555-SS0-000ZB |
— | ||
|
36
|
36
83556-SS0-000
Duct
|
83556-SS0-000 |
— | ||
|
37
|
37
83557-SS0-000ZB
Cover
|
83557-SS0-000ZB |
— | ||
|
38
|
38
83559-SS0-000ZB
Panel
|
83559-SS0-000ZB |
— | ||
|
39
|
39
83560-SS0-003ZB
Garnish
|
83560-SS0-003ZB |
— | ||
|
40
|
40
83561-SS0-000
Duct
|
83561-SS0-000 |
— | ||
|
41
|
41
83565-SS0-000ZB
Garnish
|
83565-SS0-000ZB |
— | ||
|
42
|
42
83570-SS0-003ZA Outlet assyL. DOOR *NH1L* |
83570-SS0-003ZA |
US $51.07 |
||
|
43
|
43
83580-SS0-900ZB
Pocket
|
83580-SS0-900ZB |
— | ||
|
44
|
44
83583-SS0-A50ZB
Lining sub assy.
|
83583-SS0-A50ZB |
— | ||
|
45
|
45
83586-SS0-900ZZ
Bracket
|
83586-SS0-900ZZ |
— | ||
|
46
|
46
90111-SA0-000 ScrewTAPPING, 4X8 |
90111-SA0-000 |
US $3.40 |
||
|
47
|
47
90131-SE3-003 ScrewTAPPING, 4X16 |
90131-SE3-003 |
US $1.54 |
||
|
48
|
48
90132-SS0-000 ScrewTAPPING, 4X10 (PO) |
90132-SS0-000 |
from US $1.12 |
||
|
50
|
50
90302-SA4-003 NutSPRING, 4MM |
90302-SA4-003 |
from US $2.59 |
||
|
51
|
51
90614-SF1-003ZJ CapSCREW (4MM) *NH167L* |
90614-SF1-003ZJ |
US $2.38 |
||
|
52
|
52
90662-671-003 GrommetSCREW, 5MM (WHITE) |
90662-671-003 |
US $2.59 |
||
|
53
|
53
90662-693-003 GrommetSCREW, 4MM (BLUE) |
90662-693-003 |
US $1.68 |
||
|
54
|
54
90666-SD4-003 ClipFITTING |
90666-SD4-003 |
from US $1.92 |
||
|
55
|
55
90681-693-000 GrommetSCREW, 4MM |
90681-693-000 |
US $2.52 |
||
|
56
|
56
91560-SP0-003 ClipDOOR LINING (GRAY) |
91560-SP0-003 |
US $2.07 |
||
| replacement | |||||
|
56
|
56
91560-S84-A01 CLIP, DOOR LINING (NATURAL) |
91560-S84-A01 |
US $2.44 |
||
|
57
|
57
93903-14480 ScrewTAPPING, 4X16 |
93903-14480 |
US $0.37 |
||
|
58
|
58
93903-15280 ScrewTAPPING, 5X12 |
93903-15280 |
US $0.37 |
||
|
59
|
59
93913-14280 ScrewTAPPING, 4X12 (PO) |
93913-14280 |
from US $0.37 |
||
