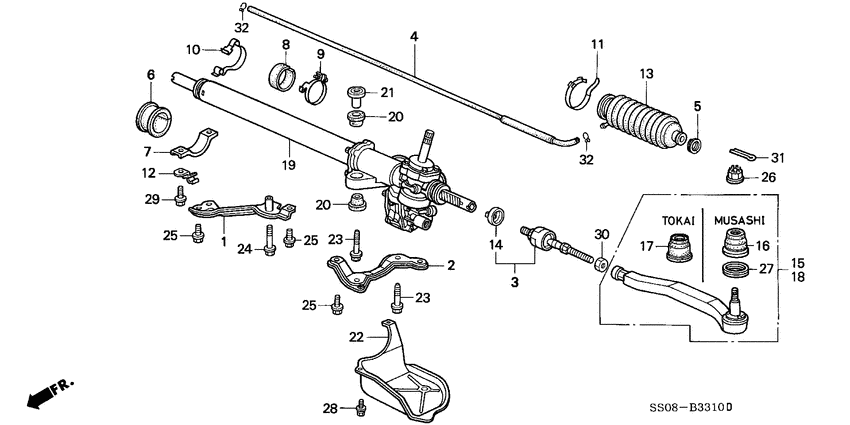

P.s. gear box (LH) Diagram Honda PRELUDE
- Year
- 1993
- Model code
- PRELUDE
- Sales region
- General
- Engine
- F22A
- transmission
- 5MT
- Number of doors
- 2
- grade
- SI
- area code
- KY
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50210-SS0-A00
Stiffener
|
50210-SS0-A00 |
— | ||
|
2
|
2
50220-SS0-A00
Stiffener
|
50220-SS0-A00 |
— | ||
|
3
|
3
53010-SS0-000
End set
|
53010-SS0-000 |
— | ||
|
4
|
4
53411-SL4-951
Tube
0C101859 - |
53411-SL4-951 |
— | ||
|
4
|
4
53411-SS0-950
Tube
00000000 - 0C101858 |
53411-SS0-950 |
— | ||
|
5
|
5
53434-SD9-000 ClipTIE ROD |
53434-SD9-000 |
US $2.38 |
||
| replacement | |||||
|
5
|
5
53434-S04-J51 CLIP, TIE ROD |
53434-S04-J51 |
from US $4.01 |
||
|
6
|
6
53436-SP0-000
Cushion
|
53436-SP0-000 |
— | ||
|
7
|
7
53438-SS0-000
Bracket
|
53438-SS0-000 |
— | ||
|
8
|
8
53446-SS0-000
Rubber
|
53446-SS0-000 |
— | ||
|
9
|
9
53447-SS0-000
Band
|
53447-SS0-000 |
— | ||
|
10
|
10
53448-SS0-000
Clip
|
53448-SS0-000 |
— | ||
|
11
|
11
53449-SL0-A00
Band b
|
53449-SL0-A00 |
— | ||
| replacement | |||||
|
11
|
11
53449-S04-J51 Band bBELLOWS |
53449-S04-J51 |
US $6.51 |
||
|
12
|
12
53459-SH3-A50
Stay
|
53459-SH3-A50 |
— | ||
|
13
|
13
53534-SL4-J01 Dust seal comp.TIE ROD (B) |
53534-SL4-J01 |
US $27.38 |
||
|
14
|
14
53536-SS0-000
Washer
|
53536-SS0-000 |
— | ||
|
15
|
15
53540-SS0-004 End compR. TIE ROD (TRW) |
53540-SS0-004 |
US $76.16 |
||
|
17
|
17
53546-SL4-004 BootTIE ROD END (TRW) |
53546-SL4-004 |
US $10.78 |
||
|
18
|
18
53560-SS0-004 End compL. TIE ROD (TRW) |
53560-SS0-004 |
US $76.16 |
||
|
19
|
19
53601-SS0-A50
Box assy
|
53601-SS0-A50 |
— | ||
|
20
|
20
53685-SL5-000 BushSTEERING GEAR BOX MOUNTING |
53685-SL5-000 |
US $3.50 |
||
|
21
|
21
53686-SL5-000 CollarGEAR BOX MOUNTING |
53686-SL5-000 |
US $7 |
||
|
22
|
22
53692-SS0-A00
Guard
|
53692-SS0-A00 |
— | ||
|
23
|
23
90108-SH3-003 BoltGEAR BOX MOUNTING (10X55) |
90108-SH3-003 |
US $4.88 |
||
|
24
|
24
90163-SL5-A00 BoltFLANGE, 10X50 |
90163-SL5-A00 |
US $2.31 |
||
|
25
|
25
90166-SF1-010 Bolt-washer10X21 |
90166-SF1-010 |
US $2.66 |
||
|
26
|
26
90363-SF1-000 NutCASTLE, 12MM |
90363-SF1-000 |
from US $3.48 |
||
|
28
|
28
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.62 |
||
|
29
|
29
93412-100-200-8 Bolt-washer10X20 |
93412-100-200-8 |
from US $0.74 |
||
| replacement | |||||
|
29
|
29
93402-100-200-8 Bolt-washer10X20 |
93402-100-200-8 |
from US $0.74 |
||
|
30
|
30
94002-142-800-S NUT, HEX., 14MM |
94002-142-800-S |
US $0.74 |
||
|
31
|
31
94201-30220 Pin, SPLIT, 3.0X22 |
94201-30220 |
from US $0.44 |
||
|
32
|
32
95002-02074 ClipTUBE (B7) |
95002-02074 |
US $0.44 |
||
