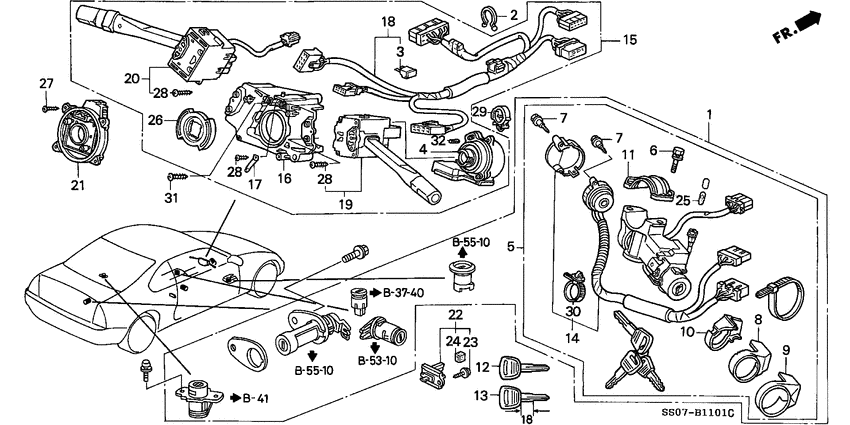

Combination switch (2) Diagram Honda PRELUDE
- Year
- 1992
- Model code
- PRELUDE
- Sales region
- General
- Engine
- F20A
- transmission
- 5MT
- Number of doors
- 2
- grade
- 2.0I
- area code
- KE
- right-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
06350-SS0-E10 Cylinder setKEY (SERVICE) |
06350-SS0-E10 |
US $386.56 |
||
|
2
|
2
17916-PA6-003
Clip
|
17916-PA6-003 |
— | ||
|
3
|
3
32146-SH3-003 ConnectorDIODE(2P) |
32146-SH3-003 |
from US $7.70 |
||
|
5
|
5
35100-SS0-E11
Lock assy
|
35100-SS0-E11 |
— | ||
|
6
|
6
35102-SG0-003 BoltBREAK HEAD |
35102-SG0-003 |
US $2.80 |
||
|
7
|
7
35103-SE3-003 ScrewRECESSED, 3X8 |
35103-SE3-003 |
US $2.10 |
||
|
12
|
12
35113-SH3-G02
Key
|
35113-SH3-G02 |
— | ||
|
13
|
13
35114-SH4-K01
Key
|
35114-SH4-K01 |
— | ||
|
14
|
14
35130-SS0-305
Switch comp
|
35130-SS0-305 |
— | ||
|
15
|
15
35250-SS0-E01ZA
Switch assy
|
35250-SS0-E01ZA |
— | ||
|
18
|
18
35254-SS0-E01
Cord assy
|
35254-SS0-E01 |
— | ||
|
19
|
19
35255-SS0-E01ZA
Switch assy
|
35255-SS0-E01ZA |
— | ||
|
20
|
20
35256-SS0-E01ZA
Switch assy
|
35256-SS0-E01ZA |
— | ||
|
22
|
22
35400-SG0-023
Switch assy
|
35400-SG0-023 |
— | ||
|
23
|
23
35409-SG0-901
Screw
|
35409-SG0-901 |
— | ||
|
24
|
24
35417-SE3-003
Cover
|
35417-SE3-003 |
— | ||
| replacement | |||||
|
24
|
24
35410-692-003 CoverDOOR SWITCH |
35410-692-003 |
US $5.77 |
||
|
25
|
25
35505-692-003 Bulb14V 1.4W |
35505-692-003 |
from US $2.07 |
||
|
26
|
26
53271-SS0-003
Cam
|
53271-SS0-003 |
— | ||
|
29
|
29
90690-SA0-003 StrapWIRE HARNESS, 25MM (BLACK) |
90690-SA0-003 |
from US $9.60 |
||
|
30
|
30
91547-SF4-003 BandWIRE HARNESS (BLUE) (123.5MM) |
91547-SF4-003 |
from US $5.03 |
||
|
31
|
31
93891-050-120-8 Screw-washer5X12 |
93891-050-120-8 |
from US $0.44 |
||
