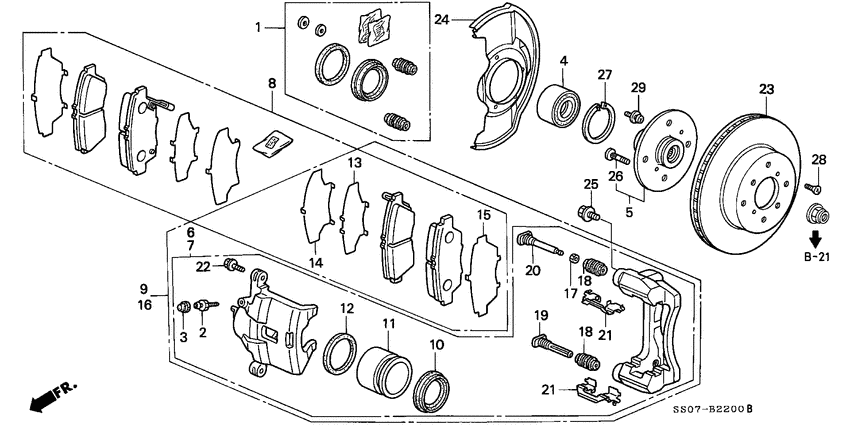

Front brake (1) Diagram Honda PRELUDE
- Year
- 1996
- Model code
- PRELUDE
- Sales region
- General
- Engine
- F20A
- transmission
- 4AT
- Number of doors
- 2
- grade
- 2.0I
- area code
- KG
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
01463-SM4-000 Caliper setFR. |
01463-SM4-000 |
US $32.13 |
||
|
2
|
2
43352-SM4-951 ScrewBLEEDER |
43352-SM4-951 |
from US $3.26 |
||
|
3
|
3
43353-SD5-003 CapBLEEDER SCREW |
43353-SD5-003 |
from US $2.12 |
||
|
4
|
4
44300-SS0-018
Bearing assy
|
44300-SS0-018 |
— | ||
|
4
|
4
44300-SS0-014
Bearing assy
|
44300-SS0-014 |
— | ||
|
5
|
5
44600-SS0-000
Hub assy
|
44600-SS0-000 |
— | ||
|
6
|
6
45018-SS0-000
Caliper sub assy.
|
45018-SS0-000 |
— | ||
|
7
|
7
45019-SS0-000
Caliper sub assy.
|
45019-SS0-000 |
— | ||
|
8
|
8
45022-SS0-G10 Pad setFR. |
45022-SS0-G10 |
US $134.40 |
||
|
11
|
11
45216-SM4-003 Piston |
45216-SM4-003 |
US $26.11 |
||
|
13
|
13
45225-SS0-003
Shim a
|
45225-SS0-003 |
— | ||
|
14
|
14
45226-SS0-003
Shim b
|
45226-SS0-003 |
— | ||
|
15
|
15
45228-SS0-003
Shim
|
45228-SS0-003 |
— | ||
|
17
|
17
45233-SS0-003 Bush11MM |
45233-SS0-003 |
US $3.57 |
||
|
19
|
19
45235-SL0-003 Pin a |
45235-SL0-003 |
US $8.12 |
||
|
20
|
20
45236-SS0-003 Pin b |
45236-SS0-003 |
US $10.36 |
||
|
21
|
21
45237-SS0-A01 Retainer |
45237-SS0-A01 |
US $6.44 |
||
|
22
|
22
45240-SM4-003 BoltFLANGE, 10X24 |
45240-SM4-003 |
from US $2.17 |
||
|
23
|
23
45251-SS0-000 DiskFR. BRAKE |
45251-SS0-000 |
US $157.44 |
||
|
24
|
24
45255-SS0-000
Guard
|
45255-SS0-000 |
— | ||
|
25
|
25
90107-SM4-000 BoltCALIPER MOUNTING (12X21) |
90107-SM4-000 |
from US $2.44 |
||
|
26
|
26
90113-SD4-902 BoltWHEEL (SAGA) |
90113-SD4-902 |
US $4.88 |
||
|
26
|
26
90113-SD4-901
Bolt
|
90113-SD4-901 |
— | ||
| replacement | |||||
|
26
|
26
90113-SD4-902 BoltWHEEL (SAGA) |
90113-SD4-902 |
US $4.88 |
||
|
27
|
27
90681-SG0-000 CirclipINTERNAL, 84MM |
90681-SG0-000 |
US $14.65 |
||
|
28
|
28
93600-060-140-H ScrewFLAT, 6X14 |
93600-060-140-H |
from US $0.44 |
||
|
29
|
29
93892-060-140-8 Screw-washer6X14 |
93892-060-140-8 |
from US $0.52 |
||
