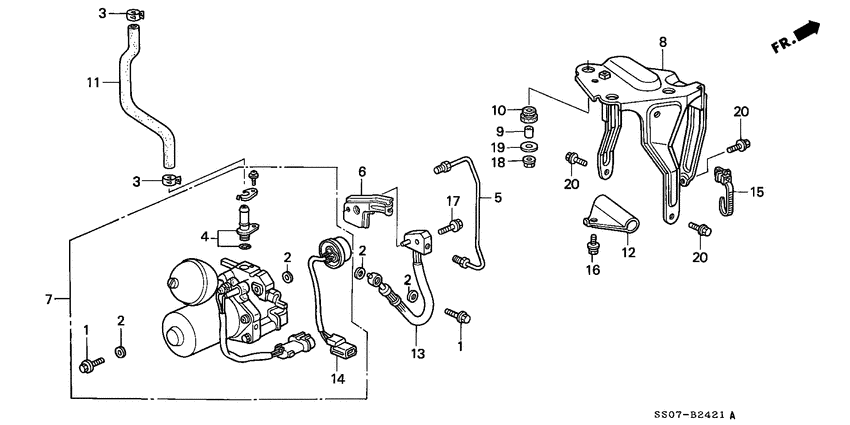

Abs accumulator (2) Diagram Honda PRELUDE
- Year
- 1993
- Model code
- PRELUDE
- Sales region
- General
- Engine
- F20A
- transmission
- 4AT
- Number of doors
- 2
- grade
- 2.0I
- abs
- +
- area code
- KE
- right-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
46462-SE0-000 BoltOIL |
46462-SE0-000 |
from US $3.33 |
||
|
2
|
2
46472-568-000 PackingOIL BOLT |
46472-568-000 |
from US $3.18 |
||
|
3
|
3
53729-SP0-003 ClampD15.5 |
53729-SP0-003 |
US $3.57 |
||
|
4
|
4
57016-SL5-A50
Pump set
|
57016-SL5-A50 |
— | ||
|
5
|
5
57090-SS0-950
Pipe
|
57090-SS0-950 |
— | ||
|
6
|
6
57091-SS0-950
Clamp
|
57091-SS0-950 |
— | ||
|
7
|
7
57310-SS0-J02
Pump assy.
|
57310-SS0-J02 |
— | ||
|
8
|
8
57355-SS0-950
Bracket
|
57355-SS0-950 |
— | ||
|
9
|
9
57357-SB0-800
Pipe
|
57357-SB0-800 |
— | ||
|
10
|
10
57358-SB0-800 Mount aPUMP BRACKET |
57358-SB0-800 |
US $2.94 |
||
|
11
|
11
57370-SS0-950
Hose
|
57370-SS0-950 |
— | ||
|
12
|
12
57373-SS0-950
Clamp
|
57373-SS0-950 |
— | ||
|
13
|
13
57380-SS0-951
Hose
|
57380-SS0-951 |
— | ||
|
14
|
14
57390-SP0-013
Switch assy
|
57390-SP0-013 |
— | ||
|
15
|
15
91546-SM4-A01 ClipHARNESS BAND (120MM) |
91546-SM4-A01 |
US $3.01 |
||
|
16
|
16
93402-060-120-8 Bolt-washer6X12 |
93402-060-120-8 |
from US $0.52 |
||
|
17
|
17
93403-080-320-8 Bolt-washer8X32 |
93403-080-320-8 |
from US $0.81 |
||
|
18
|
18
94070-06080 Nut-washer6MM |
94070-06080 |
from US $0.52 |
||
|
19
|
19
94103-06800 WasherPLAIN, 6MM |
94103-06800 |
from US $0.37 |
||
|
20
|
20
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
