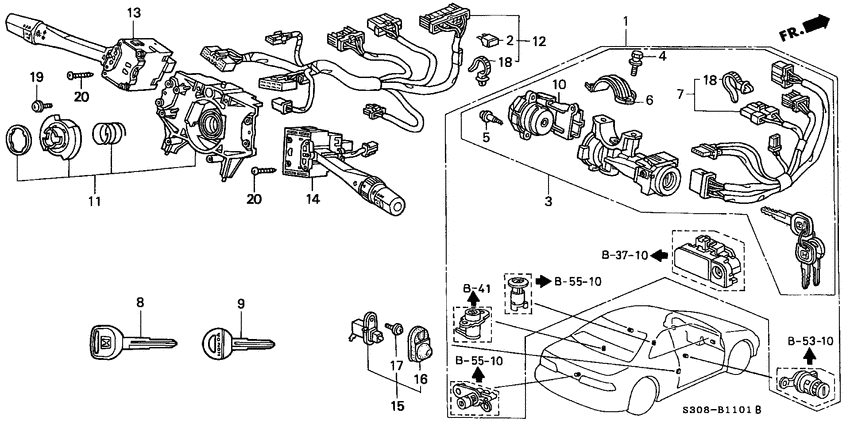

Combination switch (LH; 2) Diagram Honda PRELUDE
- Year
- 1997
- Model code
- PRELUDE
- Sales region
- General
- Engine
- F22Z
- transmission
- 4AT
- Number of doors
- 2
- grade
- SI
- area code
- KM
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
06350-S30-M10ZA
Cylinder set
|
06350-S30-M10ZA |
— | ||
|
2
|
2
32146-SH3-003 ConnectorDIODE(2P) |
32146-SH3-003 |
from US $7.70 |
||
|
3
|
3
35100-S30-M11
Lock assy
|
35100-S30-M11 |
— | ||
|
4
|
4
35102-SV4-003 BoltBREAK HEAD |
35102-SV4-003 |
from US $2 |
||
|
5
|
5
35103-S04-003 ScrewRECESSED |
35103-S04-003 |
US $1.61 |
||
|
6
|
6
35108-S30-003 HolderCOLUMN |
35108-S30-003 |
US $1.61 |
||
|
7
|
7
35110-S30-M11
Harness comp.
|
35110-S30-M11 |
— | ||
|
8
|
8
35113-SM4-901 KeyBLANK (MAIN) |
35113-SM4-901 |
US $8.58 |
||
|
9
|
9
35114-SH3-A02
Key
|
35114-SH3-A02 |
— | ||
|
10
|
10
35130-S30-003
Switch comp
|
35130-S30-003 |
— | ||
|
11
|
11
35251-S30-003
Body
|
35251-S30-003 |
— | ||
|
12
|
12
35254-S30-M01
Cord assy
|
35254-S30-M01 |
— | ||
|
13
|
13
35255-SX0-G01
Switch assy
|
35255-SX0-G01 |
— | ||
|
14
|
14
35256-SM4-G81
Switch assy
|
35256-SM4-G81 |
— | ||
|
15
|
15
35400-SL4-013 Switch assyDOOR |
35400-SL4-013 |
US $30.29 |
||
|
16
|
16
35401-SL4-003 CoverDOOR SWITCH |
35401-SL4-003 |
from US $4.62 |
||
|
17
|
17
35409-692-013 ScrewFLANGE, 4X12 |
35409-692-013 |
from US $2.09 |
||
|
18
|
18
91540-SV4-003 ClipHARNESS BAND (NATURAL) (145.2MM) |
91540-SV4-003 |
from US $2.81 |
||
|
19
|
19
93891-050-120-8 Screw-washer5X12 |
93891-050-120-8 |
from US $0.44 |
||
|
20
|
20
93901-32420 ScrewTAPPING, 3X16 |
93901-32420 |
from US $0.37 |
