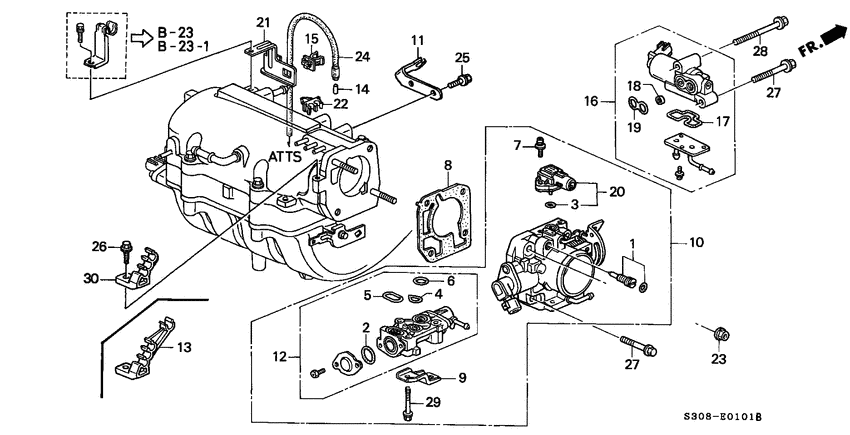

Throttle body (DOHC) Diagram Honda PRELUDE
- Year
- 1997
- Model code
- PRELUDE
- Sales region
- General
- Engine
- F22Z
- transmission
- 5MT
- Number of doors
- 2
- grade
- SI
- abs
- +
- area code
- KQ
- right-hand drive
- +
- srs driver & passenger
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16016-PM6-005 Screw set |
16016-PM6-005 |
from US $7.62 |
||
|
2
|
2
16075-PE2-005 O-ring31.2X1.9 |
16075-PE2-005 |
US $4.65 |
||
|
3
|
3
16075-P07-000 O-ring |
16075-P07-000 |
from US $2.65 |
||
|
4
|
4
16076-P64-000 O-ring |
16076-P64-000 |
from US $3.19 |
||
|
5
|
5
16077-P06-A00 O-ring |
16077-P06-A00 |
from US $5.44 |
||
|
6
|
6
16078-P06-A00 O-ring15.8X1.9 |
16078-P06-A00 |
from US $5.44 |
||
|
7
|
7
16080-P07-000 Screw-washer4X16 |
16080-P07-000 |
from US $2.37 |
||
|
8
|
8
16176-P30-004 GasketTHROTTLE BODY (NIPPON LEAKLESS) |
16176-P30-004 |
from US $5.15 |
||
|
9
|
9
16179-P13-000
Binder
|
16179-P13-000 |
— | ||
|
10
|
10
16400-P5L-Q01
Throttle Body Assy
|
16400-P5L-Q01 |
— | ||
|
11
|
11
16411-PT2-000
Stay
|
16411-PT2-000 |
— | ||
|
12
|
12
16500-P0A-A00
Valve assy.
|
16500-P0A-A00 |
— | ||
|
13
|
13
17348-P13-003
Clamp
|
17348-P13-003 |
— | ||
|
16
|
16
36450-P13-004
Valve assy.
|
36450-P13-004 |
— | ||
|
17
|
17
36453-PV3-004 O-ring bTEC |
36453-PV3-004 |
from US $2.80 |
||
|
18
|
18
36454-PS4-003 Filter compELECTRONIC AIR CONTROL VALVE (TOYO ROKI) |
36454-PS4-003 |
from US $3.33 |
||
|
19
|
19
36455-PM3-J01 PackingELECTRONIC AIR CONTROL VALVE (TEC) |
36455-PM3-J01 |
from US $2.75 |
||
|
20
|
20
37830-P0G-S00
Sensor set
|
37830-P0G-S00 |
— | ||
| replacement | |||||
|
20
|
20
37830-PAA-S00 Sensor setMAP |
37830-PAA-S00 |
US $376.72 |
||
|
23
|
23
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
25
|
25
95701-060-140-8 BoltFLANGE, 6X14 |
95701-060-140-8 |
from US $0.52 |
||
|
26
|
26
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.38 |
||
|
27
|
27
95701-080-400-8 BoltFLANGE, 8X40 |
95701-080-400-8 |
from US $0.74 |
||
|
28
|
28
95701-080-500-8 BoltFLANGE, 8X50 |
95701-080-500-8 |
from US $0.81 |
||
|
29
|
29
95801-060-400-8 BoltFLANGE, 6X40 |
95801-060-400-8 |
from US $0.65 |
||
