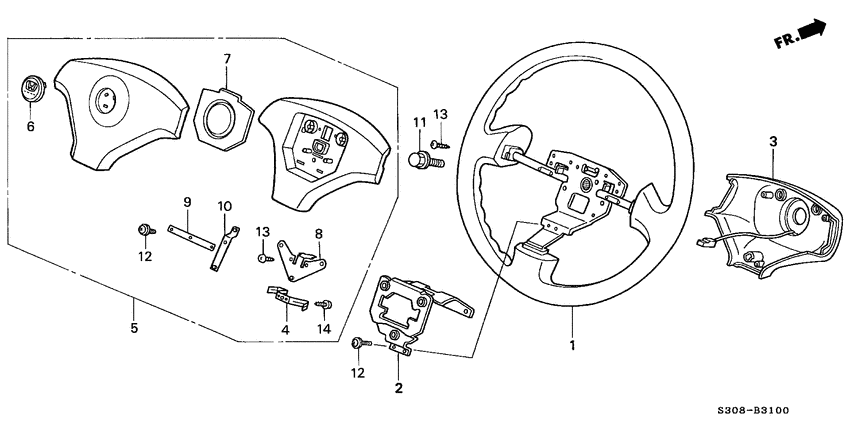

Steering wheel Diagram Honda PRELUDE
- Year
- 1998
- Model code
- PRELUDE
- Sales region
- General
- Engine
- F22A
- transmission
- 4AT
- Number of doors
- 2
- grade
- SI
- area code
- KT
- right-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
78501-S04-004ZC
Body
|
78501-S04-004ZC |
— | ||
|
2
|
2
78507-S04-004
Damper
|
78507-S04-004 |
— | ||
|
3
|
3
78518-S04-004ZA
Cover
|
78518-S04-004ZA |
— | ||
|
4
|
4
78529-SX0-003
Hook
|
78529-SX0-003 |
— | ||
|
5
|
5
78530-S30-003ZA
Pad comp
|
78530-S30-003ZA |
— | ||
|
6
|
6
78531-S30-000
Emblem
|
78531-S30-000 |
— | ||
|
7
|
7
78533-S30-000
Foundation
|
78533-S30-000 |
— | ||
|
8
|
8
78536-S04-004
Plate
|
78536-S04-004 |
— | ||
|
9
|
9
78537-S04-004
Spring a
|
78537-S04-004 |
— | ||
|
10
|
10
78538-S04-004
Spring b
|
78538-S04-004 |
— | ||
|
11
|
11
90161-SV4-003 BoltSTEERING HANDLE |
90161-SV4-003 |
US $3.03 |
||
|
12
|
12
90171-SL4-003 Screw-washer4X10 |
90171-SL4-003 |
US $1.82 |
||
|
13
|
13
93911-24220 ScrewTAPPING, 4X12 (PO) |
93911-24220 |
US $0.37 |
||
|
14
|
14
93913-14180 ScrewTAPPING, 4X10 (PO) |
93913-14180 |
from US $0.37 |
