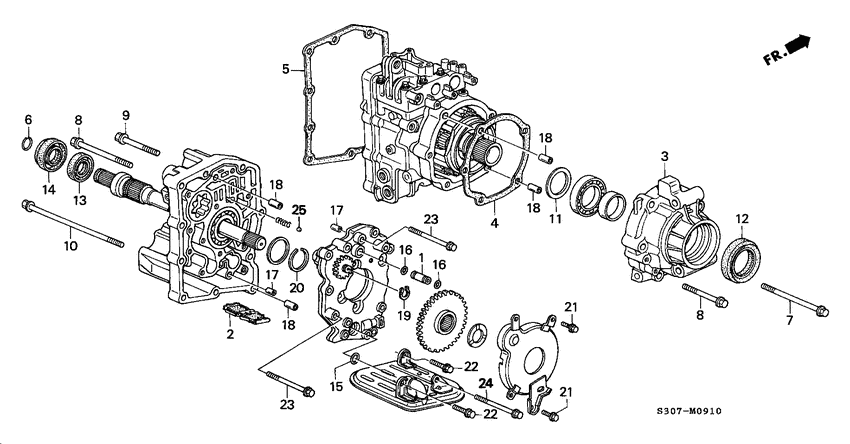

Moment control unit (COMPONENTS) Diagram Honda PRELUDE
- Year
- 1998
- Model code
- PRELUDE
- Sales region
- General
- Engine
- H22A
- transmission
- 5MT
- Number of doors
- 2
- grade
- 2.2VTIS
- abs
- +
- area code
- KG
- left-hand drive
- +
- sunroof
- +
- auto cruise
- +
- srs driver & passenger
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22742-P4V-000 Pipe10.9X18.6 |
22742-P4V-000 |
US $3.08 |
||
|
2
|
2
25422-PY8-J11 Magnet comp.TRANSMISSION |
25422-PY8-J11 |
US $9.24 |
||
|
3
|
3
41161-P6K-000
Cover
|
41161-P6K-000 |
— | ||
|
4
|
4
41191-P6K-003
Packing
|
41191-P6K-003 |
— | ||
|
5
|
5
41192-P6K-010
Packing
|
41192-P6K-010 |
— | ||
|
6
|
6
44319-SE0-000
Set ring
|
44319-SE0-000 |
— | ||
| replacement | |||||
|
6
|
6
44319-S84-300 Set ring28X2.0 |
44319-S84-300 |
from US $1.93 |
||
|
7
|
7
90003-P6K-000 BoltFLANGE, 8X90 |
90003-P6K-000 |
US $4.20 |
||
|
8
|
8
90004-P6K-000
Bolt
|
90004-P6K-000 |
— | ||
|
9
|
9
90005-P6K-000
Bolt
|
90005-P6K-000 |
— | ||
|
10
|
10
90006-P6K-000
Bolt
|
90006-P6K-000 |
— | ||
|
11
|
11
90425-P6K-000
Shim k
|
90425-P6K-000 |
— | ||
|
11
|
11
90420-P6K-000
Shim f
|
90420-P6K-000 |
— | ||
|
11
|
11
90415-P6K-000
Shim a
|
90415-P6K-000 |
— | ||
|
11
|
11
90422-P6K-000
Shim h
|
90422-P6K-000 |
— | ||
|
11
|
11
90417-P6K-000
Shim c
|
90417-P6K-000 |
— | ||
|
11
|
11
90424-P6K-000
Shim j
|
90424-P6K-000 |
— | ||
|
11
|
11
90419-P6K-000
Shim e
|
90419-P6K-000 |
— | ||
|
11
|
11
90421-P6K-000
Shim g
|
90421-P6K-000 |
— | ||
|
11
|
11
90416-P6K-000
Shim b
|
90416-P6K-000 |
— | ||
|
11
|
11
90423-P6K-000
Shim i
|
90423-P6K-000 |
— | ||
|
11
|
11
90418-P6K-000
Shim d
|
90418-P6K-000 |
— | ||
|
12
|
12
91202-P6K-003
Oil seal
|
91202-P6K-003 |
— | ||
|
13
|
13
91203-P6K-003
Oil seal
|
91203-P6K-003 |
— | ||
|
14
|
14
91260-SR3-003 SealHALF SHAFT OUTER(NOK) |
91260-SR3-003 |
US $10.21 |
||
|
15
|
15
91308-PH0-013 O-ring17.8X1.9 (NOK) |
91308-PH0-013 |
US $1.55 |
||
|
16
|
16
91311-PA9-004 O-ring7.7X1.9 (NOK) |
91311-PA9-004 |
from US $1.78 |
||
|
17
|
17
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
|
18
|
18
94301-10160 Dowel pin10X16 |
94301-10160 |
from US $1.04 |
||
|
19
|
19
94510-11000 CirclipEXTERNAL, 11MM |
94510-11000 |
from US $0.44 |
||
|
20
|
20
94560-35100 RingSNAP, 35MM |
94560-35100 |
US $2.29 |
||
|
21
|
21
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
22
|
22
95701-060-200-8 BoltFLANGE, 6X20 |
95701-060-200-8 |
from US $0.52 |
||
|
23
|
23
95701-060-250-8 BoltFLANGE, 6X25 |
95701-060-250-8 |
from US $0.59 |
||
|
24
|
24
95701-060-450-8 BoltFLANGE, 6X45 |
95701-060-450-8 |
from US $0.74 |
||
|
25
|
25
96211-13000 BallSTEEL, #13(13/32) |
96211-13000 |
from US $0.22 |
||
