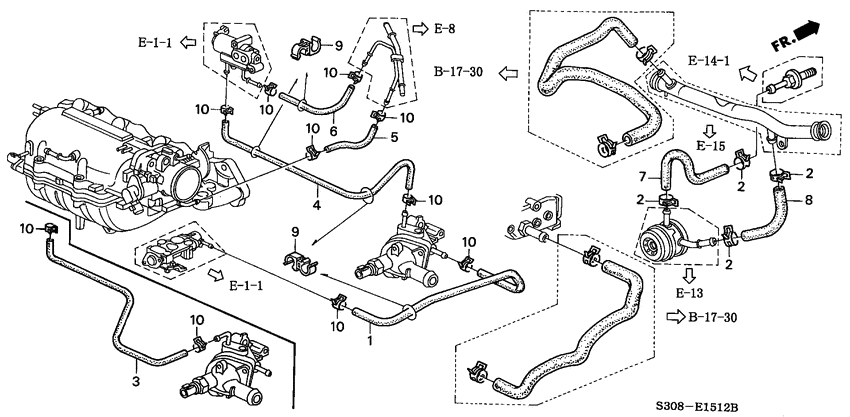

Water hose (DOHC VTEC) Diagram Honda PRELUDE
- Year
- 1997
- Model code
- PRELUDE
- Sales region
- General
- Engine
- H22A
- transmission
- 5MT
- Number of doors
- 2
- grade
- VTEC
- abs
- +
- area code
- KU
- right-hand drive
- +
- sunroof
- +
- 4ws
- +
- srs driver & passenger
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
19507-P13-010
Hose a
|
19507-P13-010 |
— | ||
|
2
|
2
19512-PK2-003 ClipHOSE, 18.7MM |
19512-PK2-003 |
from US $3.47 |
||
|
4
|
4
19513-P13-000
Hose
|
19513-P13-000 |
— | ||
|
5
|
5
19514-P13-A00 Hose aBREATHER HEATER |
19514-P13-A00 |
US $3.22 |
||
|
6
|
6
19515-P13-000
Hose b
|
19515-P13-000 |
— | ||
|
7
|
7
19521-P13-000 Hose aOIL COOLER |
19521-P13-000 |
US $7.93 |
||
|
8
|
8
19522-PT2-000 Hose bOIL COOLER |
19522-PT2-000 |
from US $4.36 |
||
|
9
|
9
53740-SE0-953 ClipSENSOR HOSE |
53740-SE0-953 |
from US $1.63 |
||
|
10
|
10
95002-412-500-4 ClampTUBE (D12.5) |
95002-412-500-4 |
from US $0.74 |
