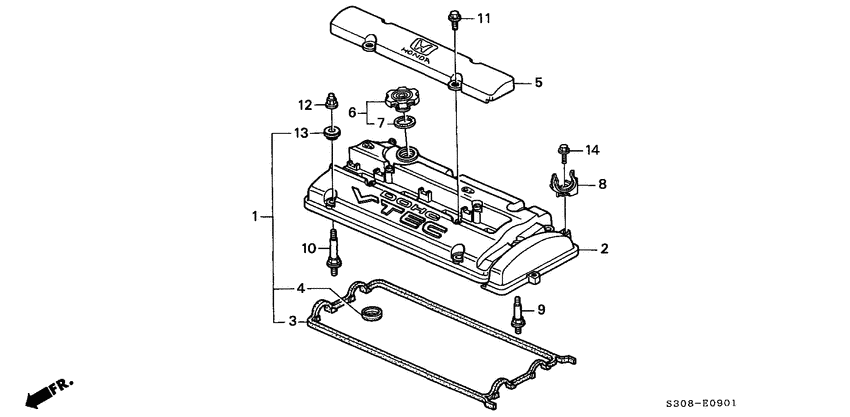

Cylinder head cover (DOHC VTEC) Diagram Honda PRELUDE
- Year
- 1997
- Model code
- PRELUDE
- Sales region
- General
- Engine
- H22A
- transmission
- 4AT
- Number of doors
- 2
- grade
- VTEC
- abs
- +
- area code
- KU
- right-hand drive
- +
- sunroof
- +
- 4ws
- +
- srs driver & passenger
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12030-P13-000 Packing setHEAD COVER |
12030-P13-000 |
US $151.10 |
||
|
2
|
2
12310-P13-000
Cover comp.
|
12310-P13-000 |
— | ||
|
3
|
3
12341-P13-000 PackingCYLINDER HEAD COVER |
12341-P13-000 |
US $23.57 |
||
|
4
|
4
12342-PG6-000
Packing b
|
12342-PG6-000 |
— | ||
| replacement | |||||
|
4
|
4
12342-PT2-000 Packing bHEAD COVER |
12342-PT2-000 |
from US $5.47 |
||
|
5
|
5
12500-P13-000
Cover
|
12500-P13-000 |
— | ||
|
6
|
6
15610-P2A-000 Cap assy.OIL FILLER |
15610-P2A-000 |
from US $17.41 |
||
|
7
|
7
15613-PC6-000 Packing, Oil Filler |
15613-PC6-000 |
from US $4 |
||
|
8
|
8
53775-SS0-000
Clamp b
|
53775-SS0-000 |
— | ||
|
9
|
9
90012-PM7-000 Bolt B, Head Cover |
90012-PM7-000 |
from US $3.92 |
||
|
10
|
10
90013-P13-000 Bolt bHEAD COVER |
90013-P13-000 |
from US $5.47 |
||
|
11
|
11
90021-PV0-000 BoltSPECIAL, 6X15 |
90021-PV0-000 |
US $2.41 |
||
|
12
|
12
90213-PH3-000 NutCAP, 6MM |
90213-PH3-000 |
from US $2.22 |
||
|
13
|
13
90442-PR7-A00 WasherHEAD COVER |
90442-PR7-A00 |
from US $8.93 |
||
|
14
|
14
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
