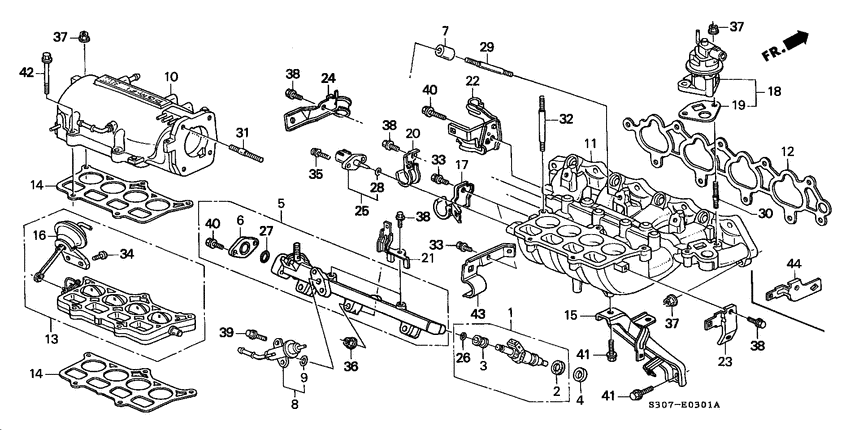

Intake manifold (DOHC) Diagram Honda PRELUDE
- Year
- 2000
- Model code
- PRELUDE
- Sales region
- General
- Engine
- H22A
- transmission
- 5MT
- Number of doors
- 2
- grade
- VT
- abs
- +
- area code
- KE
- right-hand drive
- +
- sunroof
- +
- auto cruise
- +
- 4ws
- +
- srs driver & passenger
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
06164-P5M-000 Packing setINJECTOR |
06164-P5M-000 |
US $168.96 |
||
|
2
|
2
16472-PH7-003 Seal ringINJECTOR (OTSUKA) |
16472-PH7-003 |
from US $4.84 |
||
| replacement | |||||
|
2
|
2
16472-P0H-A01 Seal ringINJECTOR (NOK) |
16472-P0H-A01 |
US $25.28 |
||
|
3
|
3
16473-PD6-000 Cushion ringINJECTOR (OTSUKA) |
16473-PD6-000 |
from US $5.33 |
||
| replacement | |||||
|
3
|
3
16473-P10-A01 Cushion ringINJECTOR (NOK) |
16473-P10-A01 |
US $10.10 |
||
|
4
|
4
16474-PT2-000 InsulatorINJECTOR |
16474-PT2-000 |
US $4 |
||
|
5
|
5
16610-P5K-000
Pipe comp
|
16610-P5K-000 |
— | ||
|
6
|
6
16623-PT2-000
Cover
|
16623-PT2-000 |
— | ||
|
7
|
7
16638-P45-G00 CollarFUEL PIPE |
16638-P45-G00 |
US $3.15 |
||
|
8
|
8
16740-P5L-J01
Regulator assy
|
16740-P5L-J01 |
— | ||
|
9
|
9
16741-PG7-005 O-ringPRESSURE REGULATOR |
16741-PG7-005 |
from US $2.22 |
||
|
10
|
10
17010-P5P-000
Manifold comp. b
|
17010-P5P-000 |
— | ||
|
11
|
11
17100-P5M-010 Manifold comp. aINTAKE 00000000 - 2000150 |
17100-P5M-010 |
US $437.76 |
||
|
11
|
11
17100-P5M-020
Manifold comp. a
2000151 - |
17100-P5M-020 |
— | ||
|
12
|
12
17105-P13-014 PackingINTAKE MANIFOLD (NIPPON LEAKLESS) |
17105-P13-014 |
US $13.31 |
||
|
13
|
13
17120-PT2-000
Body assy
|
17120-PT2-000 |
— | ||
|
14
|
14
17121-PT2-003 PackingBYPASS VALVE (ISHINO GASKET) |
17121-PT2-003 |
US $9.80 |
||
|
14
|
14
17121-PT2-004 PackingBYPASS VALVE (NIPPON LEAKLESS) |
17121-PT2-004 |
US $9.80 |
||
|
15
|
15
17125-P5K-000
Stay comp
|
17125-P5K-000 |
— | ||
|
16
|
16
17129-PT2-000
Diaphragm assy.
|
17129-PT2-000 |
— | ||
|
17
|
17
17749-SS0-931
Clamp
|
17749-SS0-931 |
— | ||
|
18
|
18
18011-P13-000
Valve set
|
18011-P13-000 |
— | ||
|
19
|
19
18715-PB2-000 GASKET, EGR VALVE (ISHINO GASKET) |
18715-PB2-000 |
from US $6.51 |
||
|
20
|
20
19527-P13-000
Clamp
|
19527-P13-000 |
— | ||
|
21
|
21
32129-P13-000
Stay
|
32129-P13-000 |
— | ||
|
22
|
22
32742-P5M-A00
Clamp b
|
32742-P5M-A00 |
— | ||
|
23
|
23
32752-P5K-000
Stay d
|
32752-P5K-000 |
— | ||
|
24
|
24
32759-P13-000
Clamp j
|
32759-P13-000 |
— | ||
|
25
|
25
37880-P05-A00 Sensor assyAIR TEMP |
37880-P05-A00 |
from US $27.74 |
||
|
26
|
26
91301-PM7-003 O-ring7.3X2.2 (ARAI) |
91301-PM7-003 |
US $4.39 |
||
| replacements | |||||
|
26
|
26
91301-P2F-A01 O-ring7.3X2.2 (NOK) |
91301-P2F-A01 |
US $5.39 |
||
|
26
|
26
16074-ZY3-000 O-ring |
16074-ZY3-000 |
from US $4.14 |
||
|
27
|
27
91301-PR3-003
O-ring
|
91301-PR3-003 |
— | ||
|
28
|
28
91303-PK2-005 O-ring (7.5X1.5)7.5X1.5 |
91303-PK2-005 |
from US $1.63 |
||
|
29
|
29
92900-06050-0B BoltSTUD, 6X50 |
92900-06050-0B |
US $0.81 |
||
|
30
|
30
92900-08022-0B BoltSTUD, 8X22 |
92900-08022-0B |
from US $0.74 |
||
|
31
|
31
92900-08035-1B BoltSTUD, 8X35 |
92900-08035-1B |
US $0.81 |
||
|
32
|
32
92900-08070-0B BoltSTUD, 8X70 |
92900-08070-0B |
US $1.33 |
||
|
33
|
33
93402-060-120-8 Bolt-washer6X12 |
93402-060-120-8 |
from US $0.52 |
||
|
34
|
34
93500-050-121-H ScrewPAN, 5X12 |
93500-050-121-H |
from US $0.37 |
||
| replacement | |||||
|
34
|
34
93500-050-120-H ScrewPAN, 5X12 |
93500-050-120-H |
from US $0.37 |
||
|
35
|
35
93893-050-160-8 Screw-washer5X16 |
93893-050-160-8 |
from US $0.55 |
||
|
36
|
36
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
37
|
37
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
38
|
38
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
39
|
39
95701-060-140-8 BoltFLANGE, 6X14 |
95701-060-140-8 |
from US $0.52 |
||
|
40
|
40
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.52 |
||
|
41
|
41
95701-080-180-8 Bolt, FLANGE, 8X18 |
95701-080-180-8 |
from US $0.59 |
||
|
42
|
42
95701-080-650-8 BoltFLANGE, 8X65 |
95701-080-650-8 |
from US $0.89 |
||
