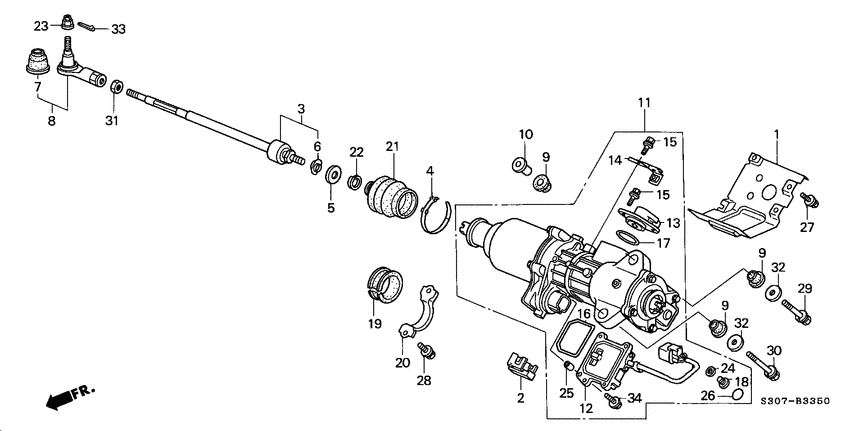

Rear steering actuator Diagram Honda PRELUDE
- Year
- 1998
- Model code
- PRELUDE
- Sales region
- General
- Engine
- H22A
- transmission
- 4AT
- Number of doors
- 2
- grade
- 2.2VTI
- abs
- +
- area code
- KS
- left-hand drive
- +
- sunroof
- +
- auto cruise
- +
- 4ws
- +
- srs driver & passenger
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
39330-S30-000
Cover assy.
|
39330-S30-000 |
— | ||
|
2
|
2
39332-S30-003
Cover
|
39332-S30-003 |
— | ||
|
3
|
3
53020-SS0-000
End set
|
53020-SS0-000 |
— | ||
|
4
|
4
53449-SM4-000 BandBELLOWS |
53449-SM4-000 |
US $5.33 |
||
|
5
|
5
53535-SB3-000
Washer
|
53535-SB3-000 |
— | ||
|
6
|
6
53536-SB2-000 WasherTIE ROD LOCK |
53536-SB2-000 |
US $5.37 |
||
|
7
|
7
53546-SL4-004 BootTIE ROD END (TRW) |
53546-SL4-004 |
US $10.78 |
||
|
8
|
8
53550-SS0-J61
End comp
|
53550-SS0-J61 |
— | ||
|
9
|
9
53685-SL0-A00 Bush, STEERING GEAR BOX MOUNTING |
53685-SL0-A00 |
US $2.89 |
||
|
10
|
10
53686-SH3-010 CollarSTEERING GEAR BOX MOUNTING |
53686-SH3-010 |
US $5.92 |
||
|
11
|
11
53901-S30-J61
Actuator sub assy.
|
53901-S30-J61 |
— | ||
|
12
|
12
53902-S30-J61
Encoder assy.
|
53902-S30-J61 |
— | ||
|
13
|
13
53903-S30-J61
Potentiometer
|
53903-S30-J61 |
— | ||
|
14
|
14
53906-S30-J61
Stay
|
53906-S30-J61 |
— | ||
|
15
|
15
53907-S30-J61
Bolt-washer
|
53907-S30-J61 |
— | ||
|
16
|
16
53921-SS0-J62
O-ring
|
53921-SS0-J62 |
— | ||
|
17
|
17
53924-S30-J61
O-ring
|
53924-S30-J61 |
— | ||
|
18
|
18
53936-SF1-J60
Bolt
|
53936-SF1-J60 |
— | ||
|
19
|
19
53951-S30-J60
Cushion
|
53951-S30-J60 |
— | ||
|
20
|
20
53952-S30-J60
Bracket
|
53952-S30-J60 |
— | ||
|
21
|
21
53954-SF1-J61
Dust seal
|
53954-SF1-J61 |
— | ||
|
22
|
22
53955-SF1-J60
Clip
|
53955-SF1-J60 |
— | ||
|
23
|
23
90363-SF1-000 NutCASTLE, 12MM |
90363-SF1-000 |
from US $3.48 |
||
|
24
|
24
90428-PD6-003 WasherSEALING, 12MM |
90428-PD6-003 |
from US $2.38 |
||
|
25
|
25
91103-429-000 Dowel pin8X10 |
91103-429-000 |
from US $2.74 |
||
|
26
|
26
91657-SP0-000 Seal cDOOR PANEL HOLE (25MM) |
91657-SP0-000 |
US $0.42 |
||
|
27
|
27
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.62 |
||
|
28
|
28
93412-100-200-8 Bolt-washer10X20 |
93412-100-200-8 |
from US $0.74 |
||
| replacement | |||||
|
28
|
28
93402-100-200-8 Bolt-washer10X20 |
93402-100-200-8 |
from US $0.74 |
||
|
29
|
29
93412-100-500-8 Bolt-washer10X50 |
93412-100-500-8 |
US $0.89 |
||
|
30
|
30
93412-100-750-8 Bolt-washer10X75 |
93412-100-750-8 |
US $1.18 |
||
|
31
|
31
94001-142-800-S NutHEX., 14MM |
94001-142-800-S |
from US $0.74 |
||
|
32
|
32
94103-10800 WasherPLAIN, 10MM |
94103-10800 |
from US $0.52 |
||
|
33
|
33
94201-30220 Pin, SPLIT, 3.0X22 |
94201-30220 |
from US $0.44 |
||
|
34
|
34
95701-060-200-8 BoltFLANGE, 6X20 |
95701-060-200-8 |
from US $0.52 |
||
