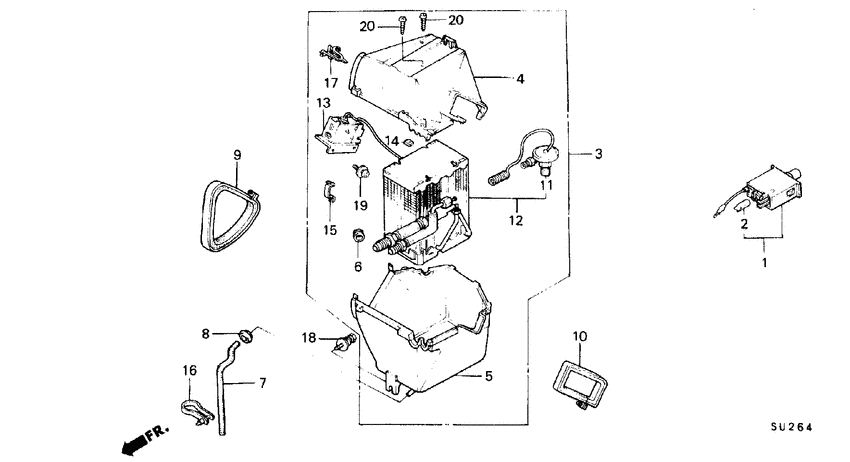

Air conditioner (COOLER UNIT) Diagram Honda QUINTET
- Year
- 1982
- Model code
- QUINTET
- Sales region
- General
- Engine
- EL
- transmission
- 5MT
- Number of doors
- 5
- grade
- DX
- power steering
- +
- area code
- KB
- left-hand drive
- +
- sunroof (glass)
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35850-693-003
Switch assy
|
35850-693-003 |
— | ||
|
2
|
2
37553-SA0-003
Bulb & socket
|
37553-SA0-003 |
— | ||
|
3
|
3
38620-693-671
Cooler unit
|
38620-693-671 |
— | ||
|
4
|
4
38621-693-670
Case
|
38621-693-670 |
— | ||
|
5
|
5
38622-693-670
Case
|
38622-693-670 |
— | ||
|
6
|
6
38625-692-000
Grommet
|
38625-692-000 |
— | ||
|
7
|
7
38626-692-000
Hose
|
38626-692-000 |
— | ||
|
8
|
8
38627-692-000
Grommet
|
38627-692-000 |
— | ||
|
9
|
9
38638-693-000
Band a
|
38638-693-000 |
— | ||
|
10
|
10
38639-693-010
Band b
|
38639-693-010 |
— | ||
|
11
|
11
38650-692-004
Valve
|
38650-692-004 |
— | ||
|
11
|
11
38650-692-003
Valve
|
38650-692-003 |
— | ||
|
12
|
12
38655-693-671
Evaporator sub assy.
|
38655-693-671 |
— | ||
|
13
|
13
38660-692-013
Thermostat
|
38660-692-013 |
— | ||
|
14
|
14
90302-SA4-003 NutSPRING, 4MM |
90302-SA4-003 |
from US $2.59 |
||
|
15
|
15
90659-692-000 ClampCASE |
90659-692-000 |
from US $2.10 |
||
|
16
|
16
90668-671-003 Strap aCABLE, 95MM (WHITE) |
90668-671-003 |
US $3.96 |
||
|
17
|
17
90699-692-003
Cap
|
90699-692-003 |
— | ||
|
18
|
18
93495-060-160-8 Bolt-washer6X16 |
93495-060-160-8 |
US $1.63 |
||
| replacement | |||||
|
18
|
18
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
19
|
19
93894-040-081-8 Screw-washer4X8 |
93894-040-081-8 |
US $0.44 |
||
|
20
|
20
93903-24420 ScrewTAPPING, 4X16 |
93903-24420 |
from US $0.37 |
||
