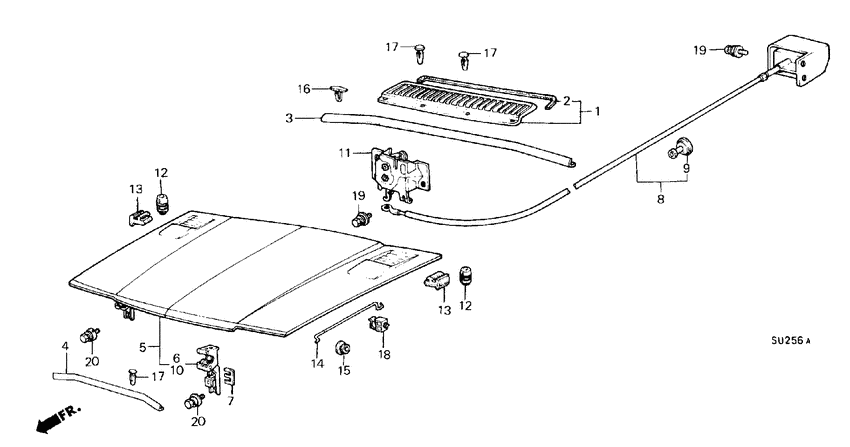

Hood Diagram Honda QUINTET
- Year
- 1982
- Model code
- QUINTET
- Sales region
- General
- Engine
- EL
- transmission
- 5MT
- Number of doors
- 5
- grade
- DX
- area code
- KE
- right-hand drive
- +
- sunroof (glass)
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
60640-693-000
Grille assy
|
60640-693-000 |
— | ||
|
2
|
2
60642-693-000
Seal
|
60642-693-000 |
— | ||
|
3
|
3
60657-693-010
Rubber
|
60657-693-010 |
— | ||
|
4
|
4
60895-692-670
Rubber
|
60895-692-670 |
— | ||
|
5
|
5
63110-693-621ZZ Bonnet comp |
63110-693-621ZZ |
US $902.40 |
||
|
6
|
6
63410-693-310ZZ
Hinge comp
|
63410-693-310ZZ |
— | ||
|
7
|
7
63415-671-000
Shim
|
63415-671-000 |
— | ||
|
8
|
8
63450-693-601
Wire comp
|
63450-693-601 |
— | ||
|
9
|
9
63455-SA0-000 GrommetHOOD WIRE |
63455-SA0-000 |
US $2.80 |
||
|
10
|
10
63460-693-300ZZ
Hinge comp
|
63460-693-300ZZ |
— | ||
|
11
|
11
63510-SA0-661 Lock assyHOOD 0C103129 - |
63510-SA0-661 |
US $33.66 |
||
|
11
|
11
63510-SA0-660 Lock assyHOOD 00000000 - 0C103128 |
63510-SA0-660 |
US $38.40 |
||
|
12
|
12
63511-SA5-003
Cushion
|
63511-SA5-003 |
— | ||
|
13
|
13
63511-693-000
Cushion
|
63511-693-000 |
— | ||
|
14
|
14
63512-693-000
Stay
|
63512-693-000 |
— | ||
|
15
|
15
63514-671-000
Grommet
|
63514-671-000 |
— | ||
|
16
|
16
90664-671-003 ClipCANOE 00000000 - 0C104816 |
90664-671-003 |
from US $3.40 |
||
|
17
|
17
90672-671-003 ClipTRIM |
90672-671-003 |
US $6 |
||
|
18
|
18
90677-693-003
Holder
|
90677-693-003 |
— | ||
|
19
|
19
93493-060-160-8 Bolt-washer6X16 |
93493-060-160-8 |
from US $0.59 |
||
| replacement | |||||
|
19
|
19
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
20
|
20
93493-080-200-8 Bolt-washer8X20 |
93493-080-200-8 |
from US $0.74 |
||
| replacement | |||||
|
20
|
20
93403-080-200-8 Bolt-washer8X20 |
93403-080-200-8 |
from US $0.74 |
||
