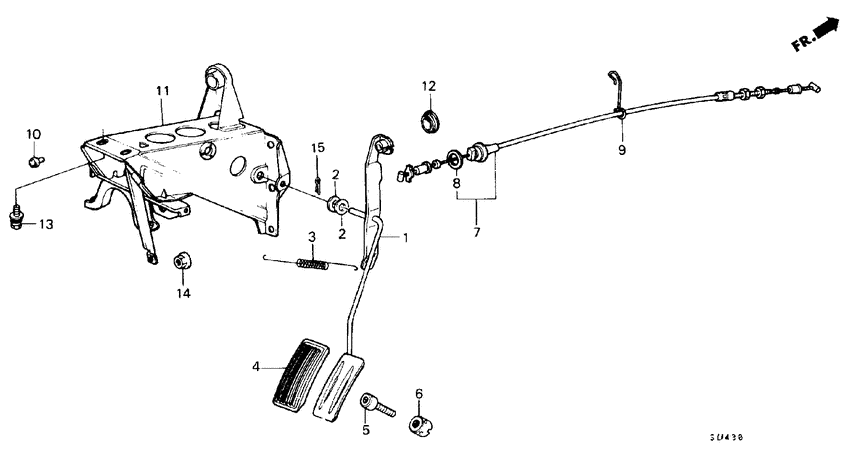

Pedal (1) Diagram Honda QUINTET
- Year
- 1982
- Model code
- QUINTET
- Sales region
- General
- Engine
- EL
- transmission
- 5MT
- Number of doors
- 5
- grade
- DX
- area code
- KE
- right-hand drive
- +
- sunroof (glass)
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17800-SA0-000
Pedal assy
|
17800-SA0-000 |
— | ||
|
2
|
2
17812-634-670 WasherACCELERATOR PEDAL |
17812-634-670 |
US $3.38 |
||
| replacement | |||||
|
2
|
2
17812-SA7-010 WasherACCELERATOR PEDAL |
17812-SA7-010 |
from US $2 |
||
|
3
|
3
17814-SA0-000
Spring
|
17814-SA0-000 |
— | ||
|
4
|
4
17816-692-000 CoverACCELERATOR PEDAL |
17816-692-000 |
US $6.16 |
||
|
5
|
5
17833-SA0-000
Bolt
|
17833-SA0-000 |
— | ||
|
6
|
6
17835-SA0-000
Base a
|
17835-SA0-000 |
— | ||
|
7
|
7
17910-693-730
Wire
|
17910-693-730 |
— | ||
|
8
|
8
17921-538-010
Seal
00000000 - 0C199999 |
17921-538-010 |
— | ||
|
9
|
9
17925-693-000
Clamp
|
17925-693-000 |
— | ||
|
10
|
10
46505-SA5-000 PadPEDAL STOPPER |
46505-SA5-000 |
from US $2.59 |
||
|
11
|
11
46590-693-010
Bracket
00000000 - 0C199999 |
46590-693-010 |
— | ||
|
12
|
12
75891-611-000 CoverDOOR SWITCH |
75891-611-000 |
from US $2.52 |
||
|
13
|
13
93493-080-160-8 Bolt-washer8X16 |
93493-080-160-8 |
from US $0.74 |
||
| replacement | |||||
|
13
|
13
93403-080-160-8 Bolt-washer8X16 |
93403-080-160-8 |
from US $0.74 |
||
|
14
|
14
94070-08080 Nut-washer8MM |
94070-08080 |
from US $0.52 |
||
|
15
|
15
94201-25180 PinSPLIT, 2.5X18 |
94201-25180 |
from US $0.37 |
||
