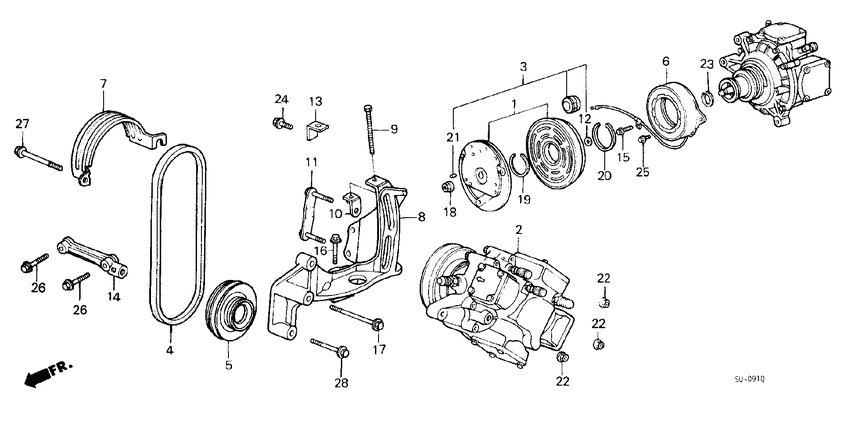

Air conditioner (COMPRESSOR) Diagram Honda QUINTET
- Year
- 1982
- Model code
- QUINTET
- Sales region
- General
- Engine
- EL
- transmission
- 3AT
- Number of doors
- 5
- grade
- DX
- area code
- KE
- right-hand drive
- +
- sunroof (glass)
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38011-PB8-010 Clutch setCOMPRESSOR (150R) |
38011-PB8-010 |
US $253.44 |
||
|
2
|
2
38800-PB8-030
Compressor assy
|
38800-PB8-030 |
— | ||
|
3
|
3
38871-PC0-005 Seal setSHAFT |
38871-PC0-005 |
US $115.84 |
||
|
4
|
4
38920-PC1-951 BeltCOMPRESSOR (MITSUBOSHI) |
38920-PC1-951 |
US $17.92 |
||
|
4
|
4
38920-PC1-952
Belt
|
38920-PC1-952 |
— | ||
|
5
|
5
38921-PB3-000
Pulley
|
38921-PB3-000 |
— | ||
|
6
|
6
38924-PB8-000
Solenoid comp.
|
38924-PB8-000 |
— | ||
|
7
|
7
38925-PB1-010
Cover
|
38925-PB1-010 |
— | ||
|
8
|
8
38930-PC1-951
Bracket
|
38930-PC1-951 |
— | ||
|
9
|
9
38934-671-000
Bolt
|
38934-671-000 |
— | ||
|
10
|
10
38936-PB1-000
Lifter
|
38936-PB1-000 |
— | ||
|
11
|
11
38937-PB1-000
Bolt
|
38937-PB1-000 |
— | ||
|
12
|
12
38944-PB8-000
Shim
|
38944-PB8-000 |
— | ||
|
12
|
12
38939-PB8-000
Shim
|
38939-PB8-000 |
— | ||
|
12
|
12
38941-PB8-610
Shim
|
38941-PB8-610 |
— | ||
|
12
|
12
38943-PB8-000
Shim
|
38943-PB8-000 |
— | ||
|
12
|
12
38940-PB8-610
Shim
|
38940-PB8-610 |
— | ||
|
12
|
12
38942-PB8-000
Shim
|
38942-PB8-000 |
— | ||
|
13
|
13
38955-PB8-000
Stay comp
|
38955-PB8-000 |
— | ||
|
14
|
14
56999-PA6-910
Bracket
|
56999-PA6-910 |
— | ||
|
16
|
16
90003-PA0-000
Bolt b
|
90003-PA0-000 |
— | ||
|
17
|
17
90088-689-000
Bolt
|
90088-689-000 |
— | ||
|
18
|
18
90201-PB8-000 NutCOMPRESSOR FLANGE, 12MM |
90201-PB8-000 |
US $3.15 |
||
|
19
|
19
90601-PB8-610
Circlip
|
90601-PB8-610 |
— | ||
|
20
|
20
90604-PB8-610
Circlip
|
90604-PB8-610 |
— | ||
|
21
|
21
90741-PB8-610
Key
|
90741-PB8-610 |
— | ||
|
22
|
22
94050-10080 NutFLANGE, 10MM |
94050-10080 |
from US $0.74 |
||
|
23
|
23
94520-32000 CirclipINTERNAL, 32MM |
94520-32000 |
from US $0.86 |
||
|
24
|
24
95700-060-100-8 BoltFLANGE, 6X10 |
95700-060-100-8 |
US $24.80 |
||
| replacement | |||||
|
24
|
24
95701-060-100-8 BoltFLANGE, 6X10 |
95701-060-100-8 |
from US $0.52 |
||
|
25
|
25
95700-060-140-8 BoltFLANGE, 6X14 |
95700-060-140-8 |
from US $0.52 |
||
| replacement | |||||
|
25
|
25
95701-060-140-8 BoltFLANGE, 6X14 |
95701-060-140-8 |
from US $0.52 |
||
|
26
|
26
95700-100-400-8 BoltFLANGE, 10X40 |
95700-100-400-8 |
from US $0.81 |
||
| replacement | |||||
|
26
|
26
95701-100-400-8 BoltFLANGE, 10X40 |
95701-100-400-8 |
from US $0.81 |
||
|
27
|
27
95700-100-650-8 BoltFLANGE, 10X65 |
95700-100-650-8 |
US $1.18 |
||
|
28
|
28
95800-100-400-8 BoltFLANGE, 10X40 |
95800-100-400-8 |
from US $0.81 |
||
| replacement | |||||
|
28
|
28
95801-100-400-8 BoltFLANGE, 10X40 |
95801-100-400-8 |
from US $0.81 |
||
