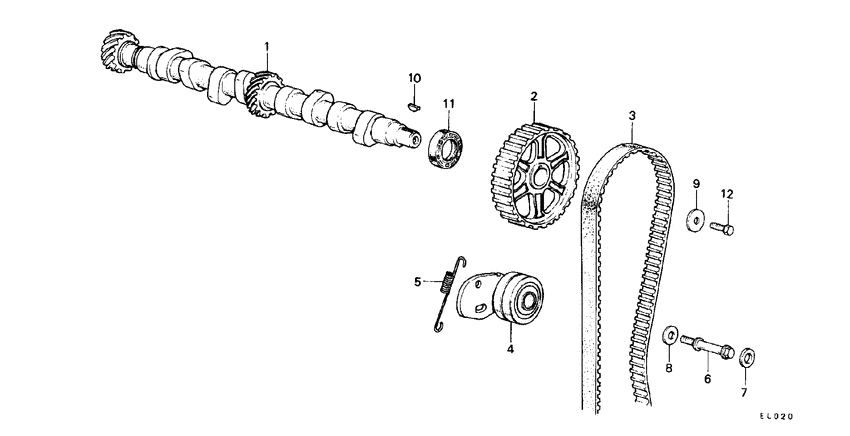

Camshaft/timing belt Diagram Honda QUINTET
- Year
- 1982
- Model code
- QUINTET
- Sales region
- General
- Engine
- EL
- transmission
- 3AT
- Number of doors
- 5
- grade
- DX
- area code
- KE
- right-hand drive
- +
- sunroof (glass)
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14110-PC3-600 Camshaft00000000 - 1800000 |
14110-PC3-600 |
US $442.88 |
||
|
2
|
2
14211-PC1-000
Pulley
00000000 - 1800000 |
14211-PC1-000 |
— | ||
| replacement | |||||
|
2
|
2
14211-PC1-505
Pulley
00000000 - 1800000 |
14211-PC1-505 |
— | ||
|
3
|
3
14400-657-024
Belt
|
14400-657-024 |
— | ||
|
4
|
4
14510-PC1-003
Adjuster comp
|
14510-PC1-003 |
— | ||
|
5
|
5
14516-657-000
Spring
|
14516-657-000 |
— | ||
|
6
|
6
90016-PC1-000
Bolt
|
90016-PC1-000 |
— | ||
|
7
|
7
90401-PC1-000
Rubber
|
90401-PC1-000 |
— | ||
|
8
|
8
90406-371-000
Washer
|
90406-371-000 |
— | ||
|
9
|
9
90435-611-000 WasherSPECIAL, 28X8.5X4.0 |
90435-611-000 |
US $9.98 |
||
|
10
|
10
90741-657-000 Key25.4X13 00000000 - 1800000 |
90741-657-000 |
from US $5.29 |
||
|
11
|
11
91203-611-004 Oil seal27X43X9 (NOK) |
91203-611-004 |
from US $8.96 |
||
|
12
|
12
92000-08022-0H BoltHEX., 8X22 |
92000-08022-0H |
US $0.59 |
||
