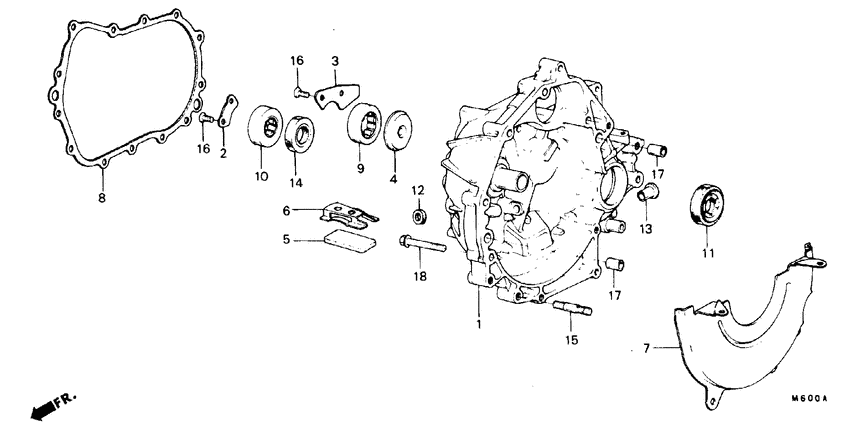

Clutch housing Diagram Honda QUINTET
- Year
- 1983
- Model code
- QUINTET
- Sales region
- General
- Engine
- EL
- transmission
- 5MT
- Number of doors
- 5
- grade
- EX
- power steering
- +
- area code
- KF
- left-hand drive
- +
- sunroof (glass)
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21000-PB6-010
Housing
|
21000-PB6-010 |
— | ||
|
2
|
2
21101-689-000
Plate
|
21101-689-000 |
— | ||
|
3
|
3
21102-PC8-000 PlateBEARING SETTING |
21102-PC8-000 |
US $9.38 |
||
|
4
|
4
21103-689-000 PlateOIL GUIDE |
21103-689-000 |
US $4.62 |
||
|
5
|
5
21121-PB6-000 MagnetTRANSMISSION |
21121-PB6-000 |
US $9.10 |
||
|
6
|
6
21122-PB6-000
Holder
|
21122-PB6-000 |
— | ||
|
7
|
7
21350-689-000
Cover
|
21350-689-000 |
— | ||
|
8
|
8
21391-689-004
Gasket
|
21391-689-004 |
— | ||
|
8
|
8
21391-689-010
Gasket
|
21391-689-010 |
— | ||
|
9
|
9
91101-PB6-008 BearingNEEDLE, 33X55X17 |
91101-PB6-008 |
US $14 |
||
|
10
|
10
91102-689-006
Bearing
|
91102-689-006 |
— | ||
|
10
|
10
91102-689-008
Bearing
|
91102-689-008 |
— | ||
|
11
|
11
91205-689-003 Oil seal35X62X9 (ARAI) |
91205-689-003 |
US $17.79 |
||
|
11
|
11
91205-689-005
Oil seal
|
91205-689-005 |
— | ||
|
12
|
12
91208-PB6-005
Dust seal
|
91208-PB6-005 |
— | ||
|
12
|
12
91208-PB6-003 Dust seal16X21X4 (ARAI) |
91208-PB6-003 |
US $4.76 |
||
|
13
|
13
91215-689-013 Oil seal14X25X16 |
91215-689-013 |
from US $8.78 |
||
|
14
|
14
91216-689-003 Oil seal25X40X7 (ARAI) |
91216-689-003 |
US $9.52 |
||
|
14
|
14
91216-689-005 Oil seal25X40X7 (NOK) |
91216-689-005 |
US $10.50 |
||
|
15
|
15
92915-10020-0B BoltSTUD, 10X20 |
92915-10020-0B |
US $0.81 |
||
|
16
|
16
93600-060-120-J ScrewFLAT, 6X12 |
93600-060-120-J |
US $0.44 |
||
|
17
|
17
94301-14200 Dowel pin14X20 |
94301-14200 |
from US $1.04 |
||
|
18
|
18
95700-100-550-8 BoltFLANGE, 10X55 |
95700-100-550-8 |
US $0.89 |
