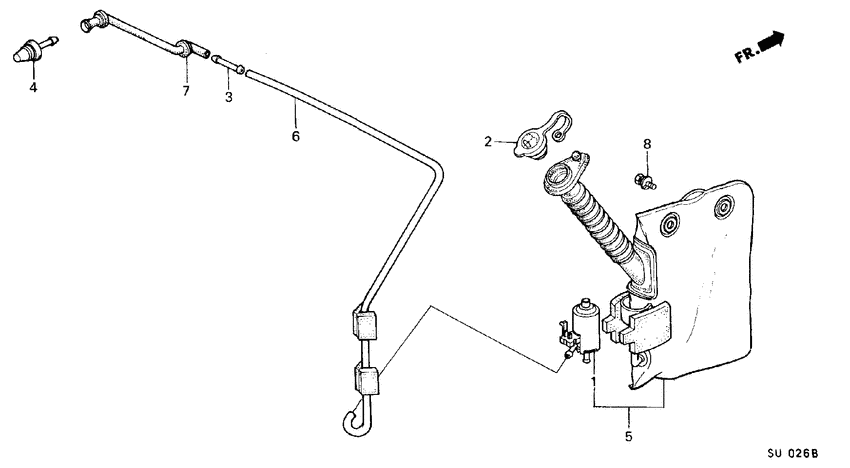

Rear windshield washer Diagram Honda QUINTET
- Year
- 1983
- Model code
- QUINTET
- Sales region
- General
- Engine
- EL
- transmission
- 3AT
- Number of doors
- 5
- grade
- DX
- area code
- KS
- left-hand drive
- +
- sunroof (glass)
- +
- head light washer
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38512-680-811 MotorWASHER 0C200001 - |
38512-680-811 |
US $41.34 |
||
|
2
|
2
38513-671-921
Cap
|
38513-671-921 |
— | ||
|
3
|
3
38562-663-920 Joint bWASHER TUBE (MITSUBA) |
38562-663-920 |
from US $3.26 |
||
|
4
|
4
38570-693-003
Nozzle assy.
|
38570-693-003 |
— | ||
|
5
|
5
38580-693-023
Washer comp
0C200001 - |
38580-693-023 |
— | ||
|
6
|
6
38581-693-003
Tube
|
38581-693-003 |
— | ||
|
7
|
7
38584-671-921
Tube
|
38584-671-921 |
— | ||
|
8
|
8
93493-060-160-8 Bolt-washer6X16 |
93493-060-160-8 |
from US $0.59 |
||
| replacement | |||||
|
8
|
8
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
