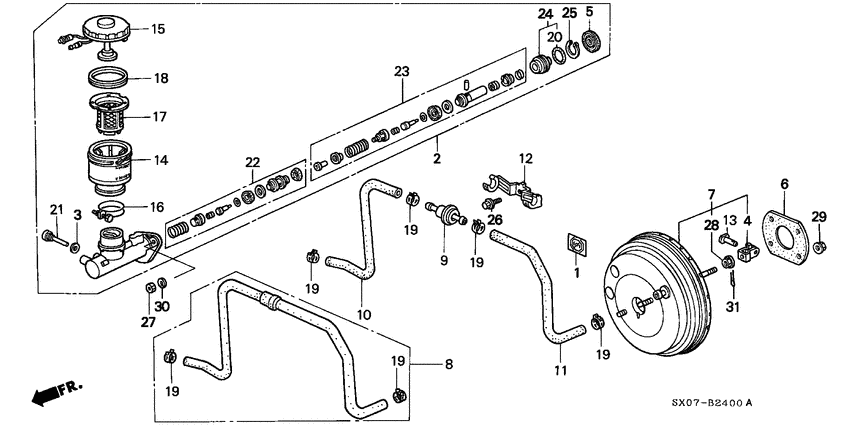

Brake master cylinder/ master power (LH; 95-97) Diagram Honda SHUTTLE
- Year
- 1996
- Model code
- SHUTTLE
- Sales region
- General
- Engine
- F22B
- transmission
- 4AT
- Number of doors
- 5
- grade
- 2.2IES
- area code
- KG
- left-hand drive
- +
- sunroof
- +
- srs driver & passenger
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
46070-SL0-G01 PlateSYMBOL MARK |
46070-SL0-G01 |
US $1.61 |
||
|
2
|
2
46100-SM4-G53
Cylinder assy.
00000000 - 0C100666 |
46100-SM4-G53 |
— | ||
|
2
|
2
46100-SM4-G54
Cylinder assy.
0C100667 - |
46100-SM4-G54 |
— | ||
|
3
|
3
46138-SM4-003 Packing |
46138-SM4-003 |
from US $2.66 |
||
|
4
|
4
46151-SB2-003 YokePUSH ROD (NISSIN) |
46151-SB2-003 |
US $18.92 |
||
|
5
|
5
46185-SE0-003 SealROD |
46185-SE0-003 |
from US $3.33 |
||
|
6
|
6
46191-634-000 GasketMASTER CYLINDER BRACKET |
46191-634-000 |
US $5.03 |
||
|
7
|
7
46400-SV4-A51
Power assy.
|
46400-SV4-A51 |
— | ||
|
8
|
8
46402-SX0-A53
Tube assy
|
46402-SX0-A53 |
— | ||
|
12
|
12
46407-SE0-010
Clamp
|
46407-SE0-010 |
— | ||
|
13
|
13
46512-SB2-000 PinPEDAL |
46512-SB2-000 |
US $4.22 |
||
|
14
|
14
46660-SM4-013
Tank
|
46660-SM4-013 |
— | ||
|
15
|
15
46662-SM4-003 Cap comp.RESERVE TANK |
46662-SM4-003 |
US $47.74 |
||
|
16
|
16
46665-ST5-003 BandRESERVE TANK |
46665-ST5-003 |
US $5.88 |
||
|
17
|
17
46666-SE3-013
Filter
|
46666-SE3-013 |
— | ||
|
18
|
18
46669-SE3-003 SealRESERVE TANK |
46669-SE3-003 |
US $7.98 |
||
|
19
|
19
53729-671-003 Clamp d15.5MM |
53729-671-003 |
from US $3.62 |
||
|
20
|
20
57173-SB0-801 O-ringCONNECTOR |
57173-SB0-801 |
US $2.07 |
||
|
21
|
21
57515-SM4-013 Bolt compSTOPPER |
57515-SM4-013 |
US $4.13 |
||
|
22
|
22
57520-SD4-013 Piston assy.PRIMARY 00000000 - 0C100666 |
57520-SD4-013 |
US $42.75 |
||
|
22
|
22
57520-SD4-023 Piston assy.PRIMARY 0C100667 - |
57520-SD4-023 |
US $57.15 |
||
|
23
|
23
57540-SD4-023
Piston assy.
0C100667 - |
57540-SD4-023 |
— | ||
|
23
|
23
57540-SD4-013 Piston assy.SECONDARY 00000000 - 0C100666 |
57540-SD4-013 |
US $42.75 |
||
|
24
|
24
57560-SD4-003 Guide assyPISTON |
57560-SD4-003 |
US $17.28 |
||
|
25
|
25
57562-SF1-003 Circlip |
57562-SF1-003 |
US $2.17 |
||
|
26
|
26
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.62 |
||
|
27
|
27
94001-080-800-S NutHEX., 8MM |
94001-080-800-S |
from US $0.44 |
||
| replacement | |||||
|
27
|
27
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
28
|
28
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
29
|
29
94070-08080 Nut-washer8MM |
94070-08080 |
from US $0.52 |
||
|
30
|
30
94111-08800 WasherSPRING, 8MM |
94111-08800 |
from US $0.37 |
||
|
31
|
31
94201-20300 PinSPLIT, 2.0X30 |
94201-20300 |
US $0.44 |
||
